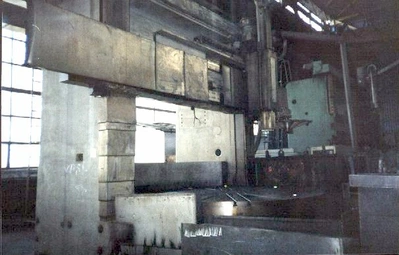

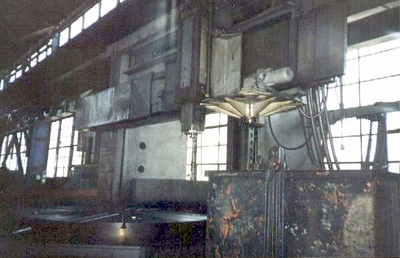

USED 1988 MORANDO DNC 3.3 130” CNC

Table Diameter: 118.00 in 2997.20 mm
Swing: 130.00 in 3302.00 mm
Height Under Rail: 82.00 in 2082.80 mm
Table Speed: 1 - 92 RPM Infinitely Variable
Motor Power: 80.00 HP 59.66 kW
Chuck Type: Faceplate
Jaw System: Bolt On Adjustable Jaws
Number of Jaws: 4
Head 1 Type: Square Ram Type
Ram Size: 9.00 in 228.6 mm
Location: Right Side Rail Mounted
Z – Vertical Slide Travel: 47.00 in 1193.8 mm
Tool Changer / Number Of Tools: 12 Station Block Type
Power: Existing
Additional: All new electrics, includes new servo motors and drives, new spindle drive, all new Parker or Vickers hydraulics
Machine Length: 192.00 in 4876.80 mm
Machine Width: 144.00 in 3657.60 mm
Machine Height: 240.00 in 6096.00 mm
