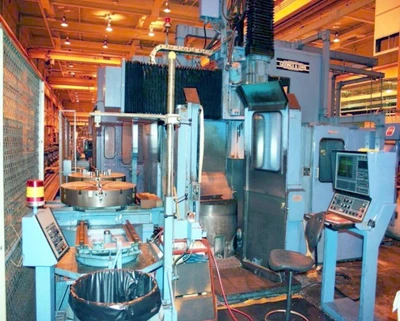

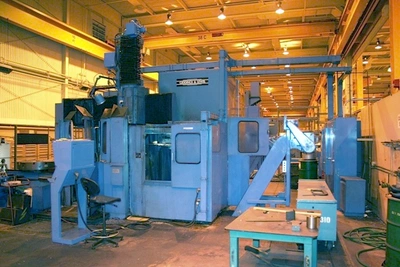

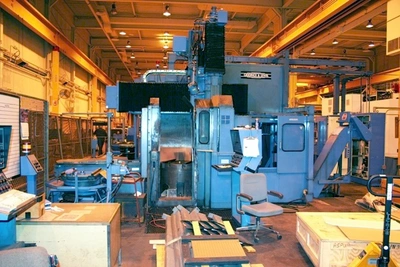

USED 1989 GIDDINGS & LEWIS 42" VTL

Swing: 52.00 in 1320.80 mm
Height Under Rail: 35.00 in 889.00 mm
X – Horizontal Saddle Travel: 58.00 in 1473.20 mm
Z – Vertical Slide Travel: 38.00 in 965.20 mm
Motor Power: 40.00 hp 29.83 kW
Rapid Travel Speed: 250.00 in/min 6350.00 mm/min
Variable Feed Rates: 0.01 – 100.00 in/min 0.25 – 2540.00 mm/min
Table Diameter: 42.00 in 1066.80 mm
Table Speed: 4.5 - 400 RPM Infinitely Variable
Jaw System: Combination independent and universal
Number of Jaws: 4

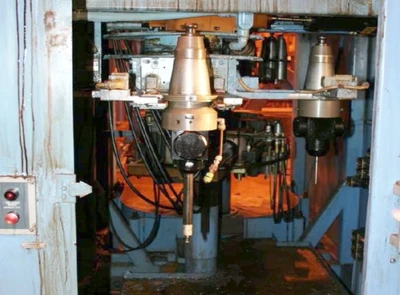

Head 1 Type: Ram
Rail Positioning: Fixed
Coolant: Flood Coolant System
Chip Conveyor: Yes

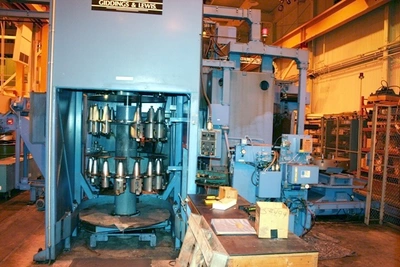

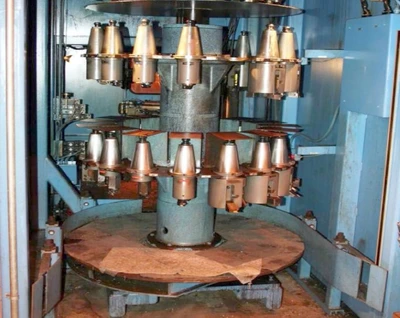

Tool Changer / Number Of Tools: 4 Station or 45 Station Standalone Matrix
Power: Existing
Additional: Pallet changer, dual Bickford flow thru on stationary base, optional: height under rail can be increased, Numeriprobe gauging system; tool tip probe
