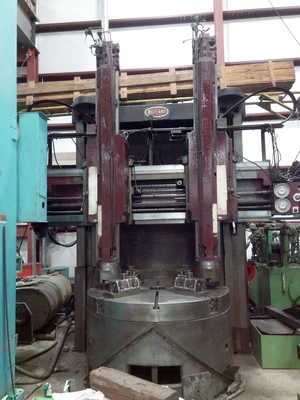

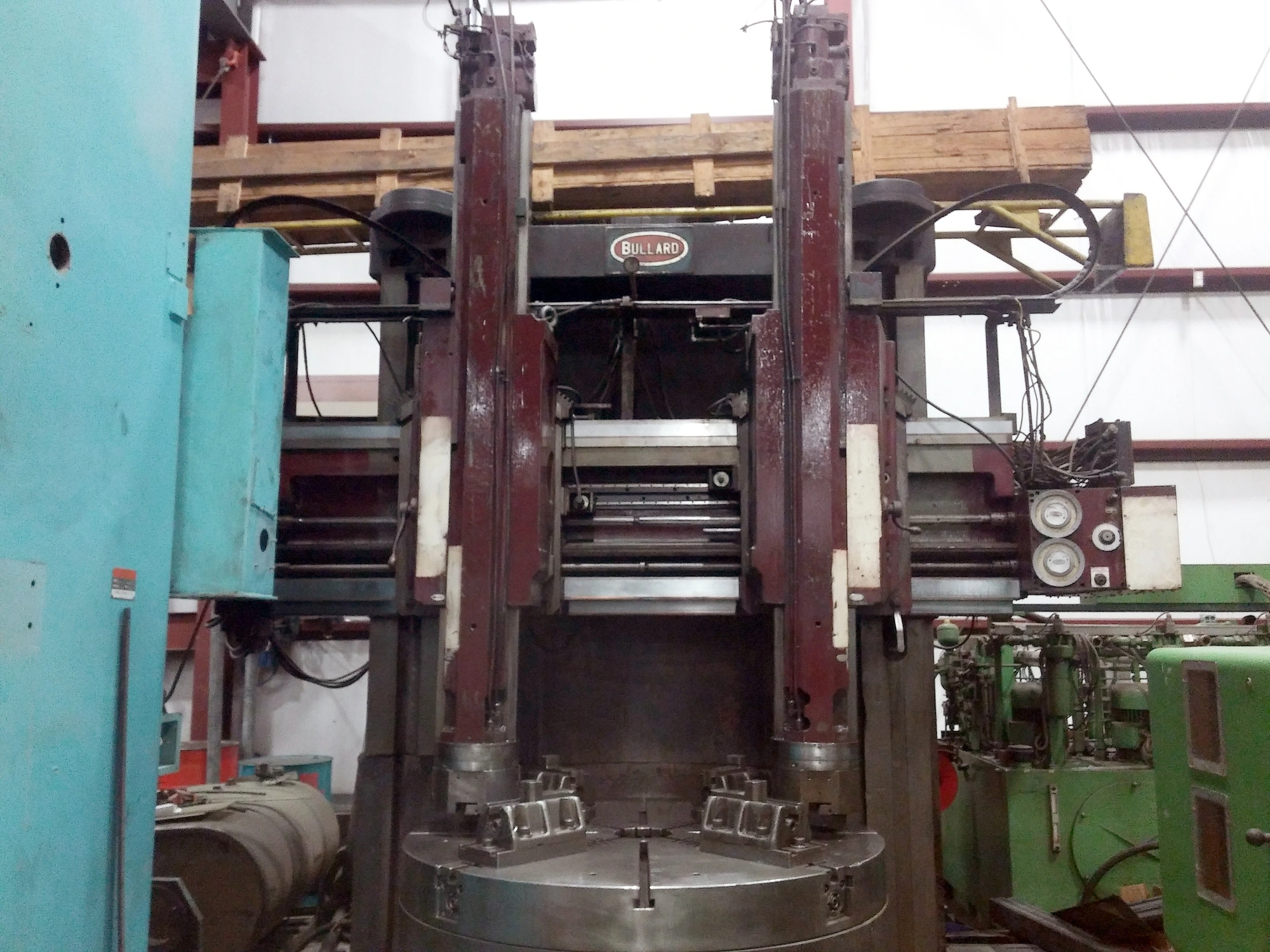

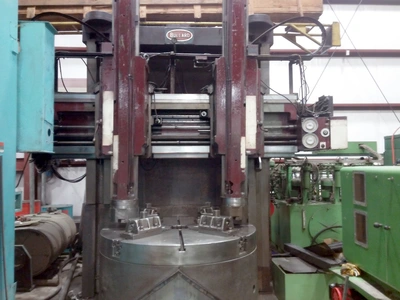

USED 1977 BULLARD DYNATAPE / DYNATROL

Table Diameter: 66.00 in 1676.40 mm
Swing: 80.00 in 2032.00 mm
Height Under Rail: 48.00 in 1219.20 mm
Table Speed: 7 - 260 RPM
Motor Power: 100.00 HP 75.00 kW
Chuck Type: Power
Jaw System: Independently Adjustable Bolt-On
Number of Jaws: 4
Hard Jaws: Yes
X – Horizontal Saddle Travel: 45.00 in 1143.00 mm
Ram Size: 11.00 in 279.40 mm
Number of Sides on Turret: 4 Station Auto Index
Number of Index Positions: 4
X2 – Horizontal Saddle Travel: 45.00 in 1143.00 mm
Location: Right Hand Rail
Location: Left Hand Rail
Rail Positioning: Infinitely Adjustable - 36 Inch (914mm) Travel
Turret Number of Sides: 4 Station Auto Index
Number of Index Positions: 4
Z – Vertical Slide Travel: 33.00 in 838.20 mm
Z2 – Vertical Slide Travel: 33.00 in 838.20 mm
Ways: Hardened Slide Ways, Hardened Insert Saddle Ways
Way Covers: Hennig Neoprene Bellows Type
Coolant: Yes
Chip Conveyor: No
Power: Existing
Additional: New Fanuc servo motors and drives, new spindle drive, new ball screws
Machine Length: 161.00 in 4089.40 mm
Machine Width: 168.00 in 4267.20 mm
Machine Height: 188.00 in 4775.20 mm
Warranty: Manufacturers Warranty on New CNC Control, 1 Year on Replaced Parts
