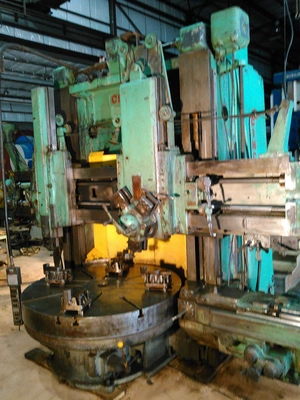

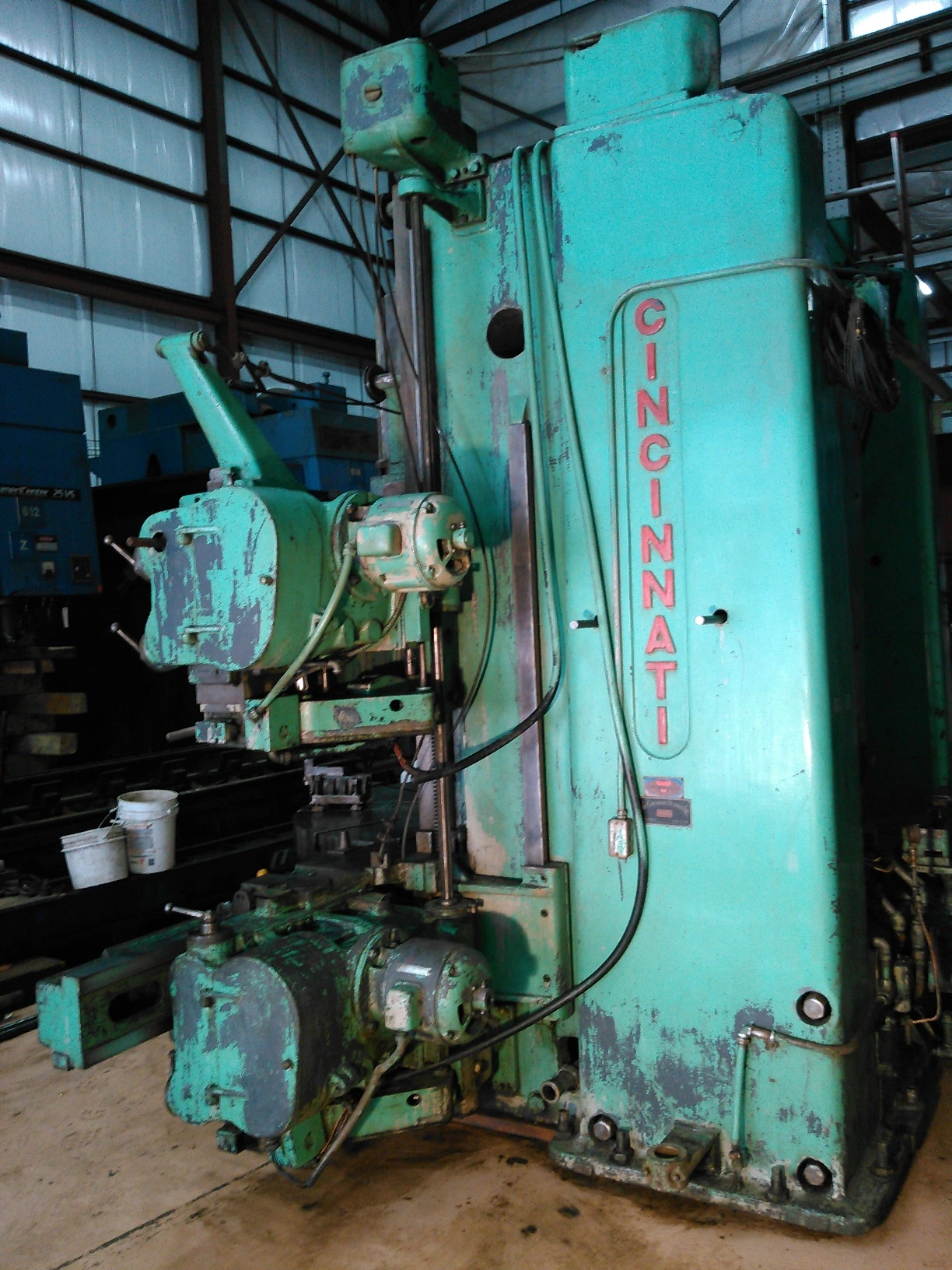

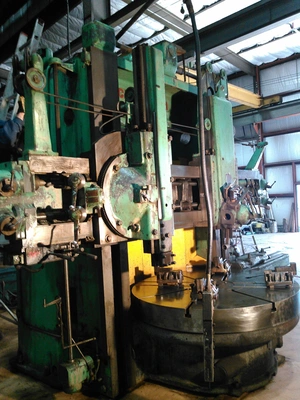

USED CINCINNATI HYPRO 62.5

Table Diameter: 62.50
Swing: 67.00
Height Under Rail: 60.00 in 1016.00 mm
Table Speed Min / Max: 1.85 – 60.7 RPM, 16 Steps
Motor Power: 40.00 hp 30.00 kW

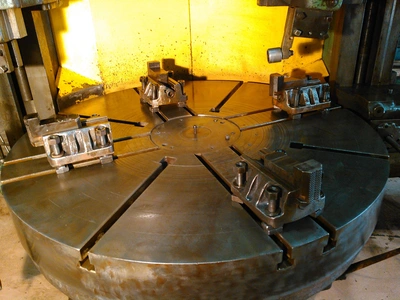

Chuck Type: Plain table
Number Of Jaws: 4
Jaw System: Independent
Jaw Type: Bolt-on
Hard Jaws: Yes
Head 1: Manual indexing turret
Ram Length: 8.50 in 215.90 mm
Ram Width: 8.00 in 203.20 mm
Turret No. Of Sides: 5
Number Of Index Positions: 5
Z - Vertical Slide Travel: 31.50 in 800.10 mm
X - Horizontal Saddle Travel: 40.00 in 1016.00 mm
Feed Range: 0.003 - 0.500
Location: Right rail head
Head 2: Ram
Ram Length: 8.50 in 215.90 mm
Ram Width: 8.00 in 203.20 mm
Z2 - Vertical Slide Travel: 45.00 / 36.00 in 1143.00 / 914.40 mm
X2 - Horizontal Saddle Travel: 40.00 in 1016.00 mm
Feed Range 0.003 - 0.500
Location: Left rail head
Head 3: Ram
Ram Cross-Section Length: 7.00 in 177.80 mm
Ram Cross-Section Width: 8.50 in 215.9 mm
Turret No. Of Sides: 4
Number Of Index Positions: 4
W - Vertical Saddle Travel: 55.00 in 1397.00 mm
U - Horizontal Slide Travel: 26.00 in 660.40 mm
Feed Range: 0.003 - 0.500
Location: Right side head
Rail Positioning: Motorized
Coolant: Yes
Power: 3 Phase / 50-60 Hz / 200 – 600 Volts, existing
Additional: Pan and coolant guarding, side saddle, turret head, boring bars
Machine Length: 216.00 in 5486.40 mm
Machine Width: 180.00 in 4572.00 mm
Machine Height: 186.00 in 4724.40 mm
