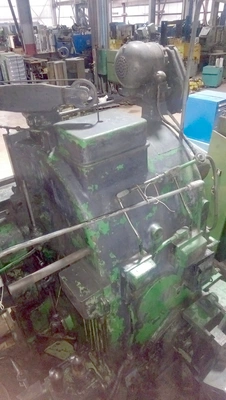

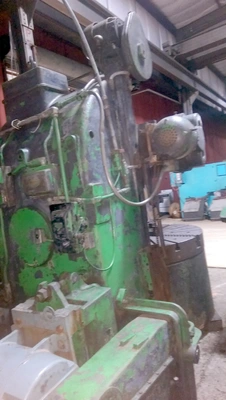

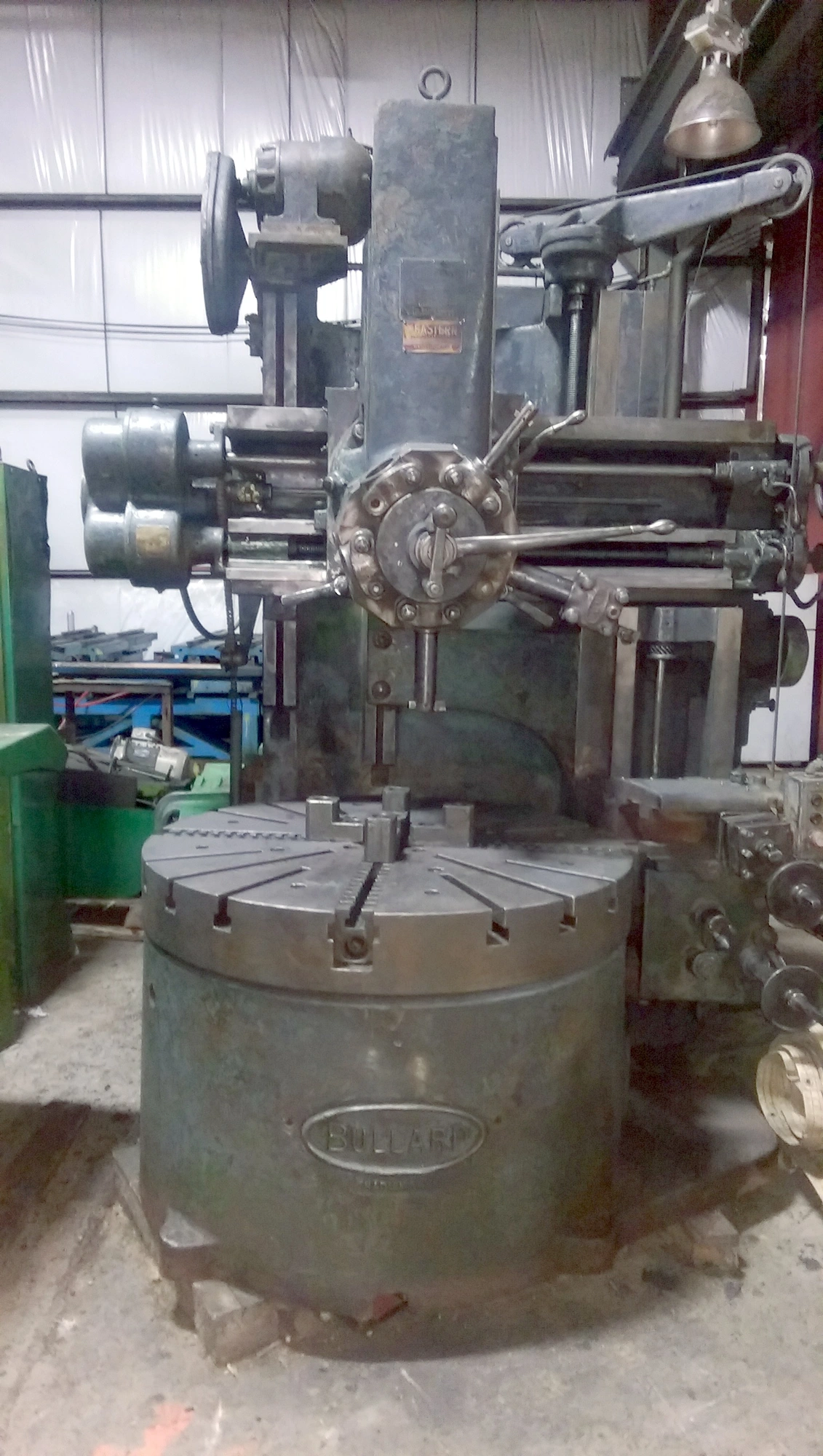

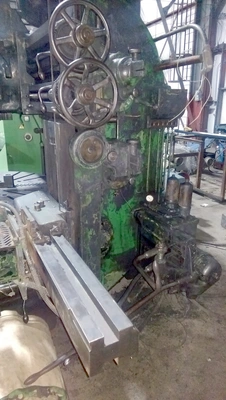

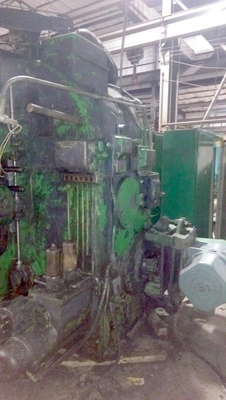

USED 1931 BULLARD 54”

Table Diameter: 50.00 in 1270.00 mm
Main Head Swing: 56.00 in 1422.40 mm
Height Under Rail: 35.50 in 901.70 mm
Table Speed: 12 speed, 3.5 – 60 RPM
Motor Power: 25 HP 18.64 kW
Chuck Type: Integral slide replaced with new-style bolt on jaws
Jaw System: Independent
Number of Jaws: 4
Head 1 Type: Turret
Number of Index Positions: 5
Location: Crossrail
Z – Vertical Slide Travel: 56.00 in 1422.40 mm
X – Horizontal: 27.00 in 685.80 mm
Head 2 Type: Turret
Number of Index Positions: 4
Location: Right sidehead
Z – Vertical Slide Travel: 29.00 in 736.60 mm
X – Horizontal: 27.00 in 685.80 mm
Power: 220 / 440 Volt 3 phase
Turret: 5 tools
Additional: Can handle 56” pieces, side head, newer AC spindle motor
Machine Length: 115.00 In 2921.00 mm
Machine Width: 93.00 in 2362.20 mm
Machine Height: 109.00 in 2768.60 mm
Machine Weight: 24500 lbs 11136.36 kg
