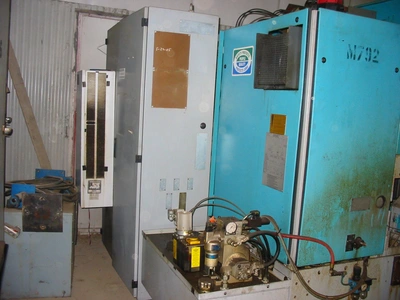

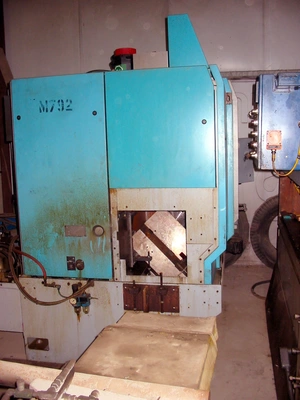

USED 1998 INDEX V200
Overview
Specs

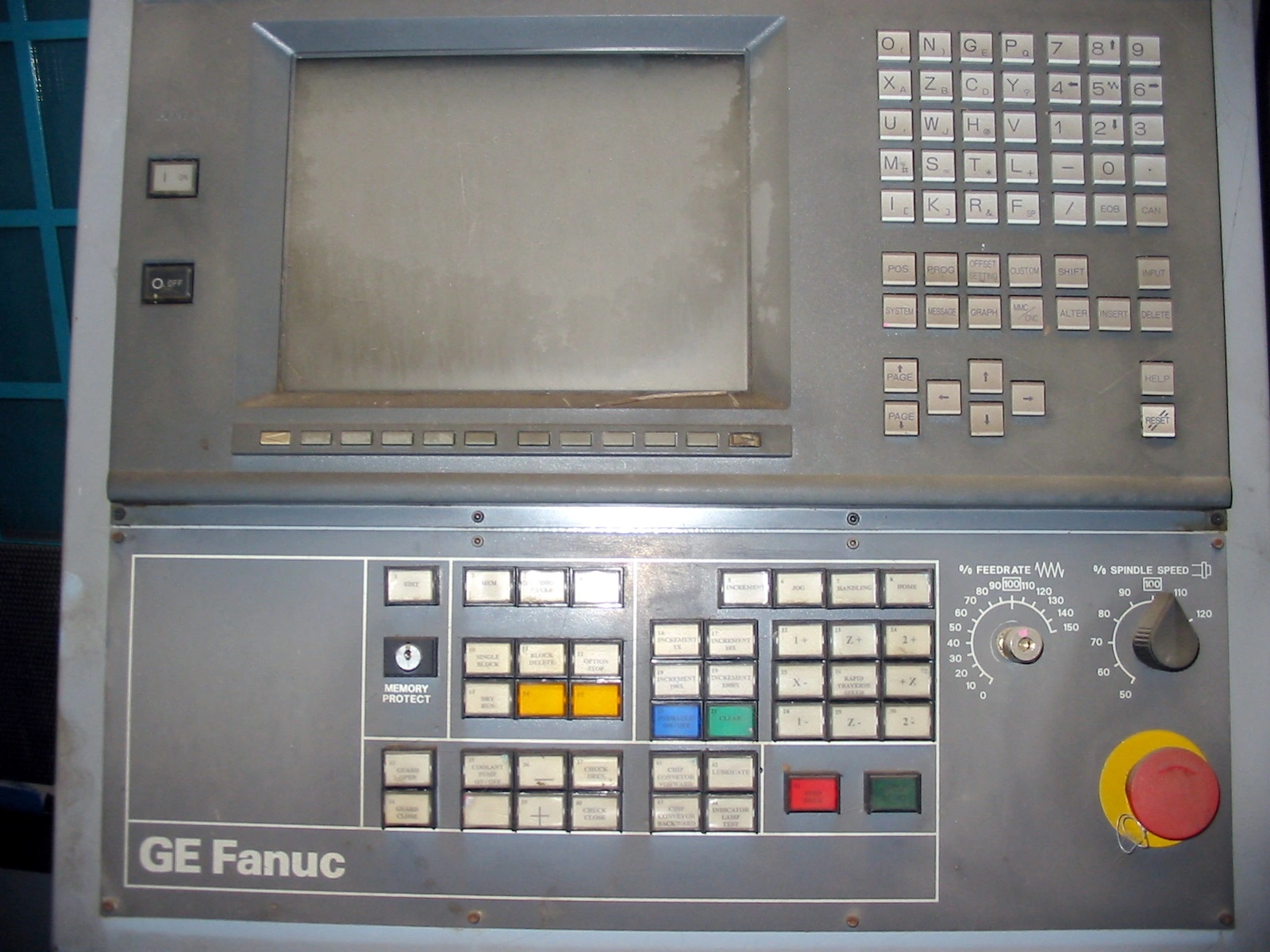

Control: Fanuc 16i CNC
Table Speed Minimum / Maximum: Infinitely Variable
Chuck Type: 8 in (203 mm) Stace-Allen Model FX1671
Turret Number Of Sides: 14
Z – Vertical Slide Travel: 7.87 in 200.00 mm
X – Horizontal Saddle Travel: 20.50 in 520.00 mm
Rapid Travel Speed: 1181.00 in 30000.00 mm
Location: Right Hand Side
Chip Conveyor: Yes - Hinged Belt
Coolant: Main Spindle Coolant Supply Line
Power: Existing
Additional: Spindle speed: 5000 max rpm, pallet conveyor system: left hand, pallet dimensions 8.66 in (220 mm) x 7.68 in (195 mm), maximum pallet workpiece diameter: 7.28 in ( 185 mm), x-axis linear scale position gauging system, z1 axis rotary position gauging system, hydraulic power pack
Machine Length: 125.00 in 3175.00 mm
Machine Width: 85.00 in 2159.00 mm
Machine Height: 96.00 in 2438.40 mm
