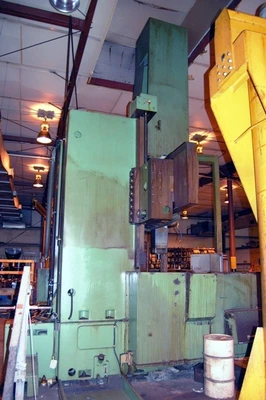

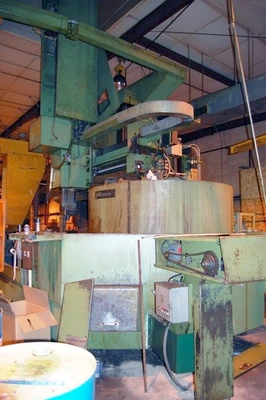

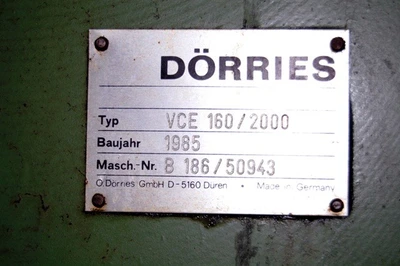

USED 1985 DORRIES VCE 160 / 2000

Control: New Siemens, or Fanuc CNC
Table Diameter: 63.00 in 1600.20 mm
Swing: 78.70 in 1998.98 mm
Height Under Rail: 72.50 in 1841.50 mm
Table Speed Minimum / Maximum: 2.5 - 250 RPM Infinitely Variable
Chuck Type: Face Plate with T-Slots
Number Of Jaws: 4
Jaw System: Independent
Jaw Type: Bolt-On

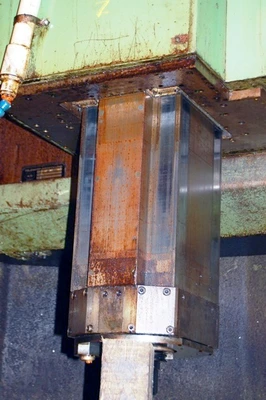

Ram Size: 9.5 X 9.5 in 240 x 240 mm
Head 1: Square Ram Type
Z – Vertical Slide Travel: 59.00 in 1498.60 mm
X – Horizontal Saddle Travel: 90.60 in 2301.24 mm
Location: Rail Mounted

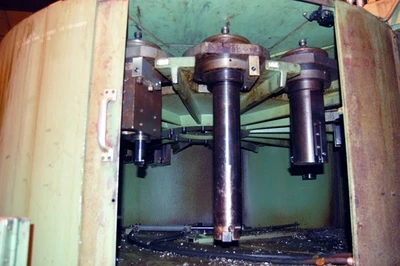

Tool Changer / Number Of Tools: Yes - 16 Position Dorries Disc Block Type
Milling Spindle: Yes
Milling Spindle Taper: #50
Milling Spindle Power: 29.33 hp 21.87 kW
C - Axis: 360,000 Position - Full Contouring
Rail Positioning: 14 Positions, Controlled By CNC
Total Rail Travel: 51.18 in 1300.00 mm
Chip Conveyor: Yes - Mayfran
Coolant: Yes
Way Covers: Metal Telescopic on Rail
Power: Existing
Additional: Heidenhain scales, angle grinding head with 12 in (305 mm) wheel, hydraulic table clamps
Machine Length: 180.00 in 4572.00 mm
Machine Width: 276.00 in 7010.40 mm
Machine Height: 264.00 in 6705.60 mm
Warranty: Manufacturers Warranty on CNC, One Year on Replaced Parts
