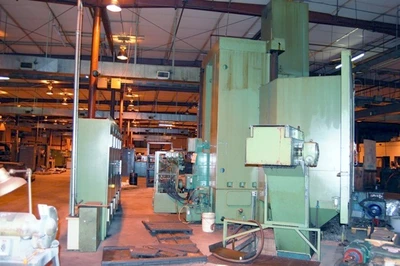

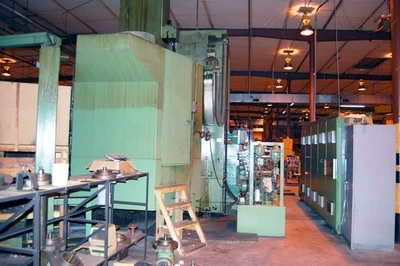

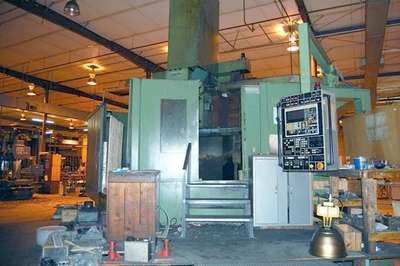

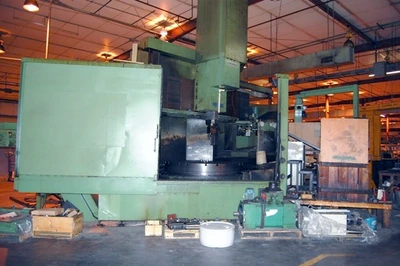

USED 1990 DORRIES SCHARMANN CONTUMAT 2

Control: New Siemens, Num, Fagor, or Fanuc CNC
Z – Vertical Slide Travel: 59.00 in 1498.60 mm
Swing: 94.48 in 2399.79 mm
Height Under Rail: 72.00 in 1828.80 mm
Table Diameter: 78.74 in 2000.00 mm
Table Speed Minimum / Maximum: Infinitely Variable
Motor Power: 110.00 HP, 83.00 kW

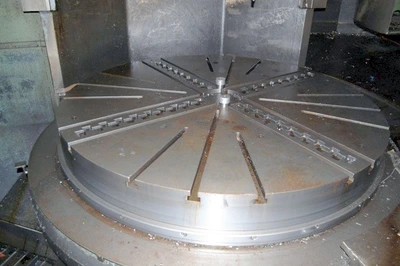

Chuck Type: Face Plate with T-Slots
Number Of Jaws: 4
Jaw System: Independent
Jaw Type: Bolt-On
Hard Jaws: Yes

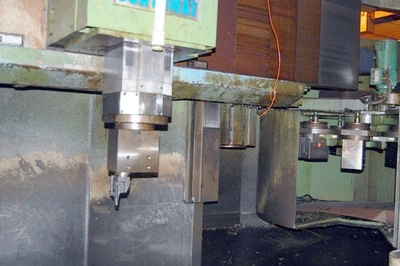

Ram Type: Ram
Ram Size: 9.50 in 241.30 mm
Location: Rail Mounted
Tool Changer / Number Of Tools: Yes - 12 Position Disc Type
Milling Spindle: Yes
Milling Spindle Taper: #50
C - Axis: 360,000 Position - Full Contouring
Rail Positioning: By CNC
Chip Conveyor: Yes - Kabelschlepp Foerderer
Ways: Hardened
Way Covers: Metal Telescopic - Rail Only
Power: Existing
Additional: Hydraulic Table Clamps
Warranty: Manufacturers warranty on CNC, one year on replaced parts
