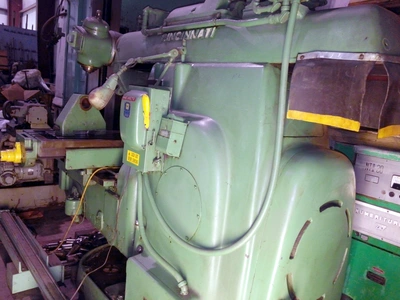

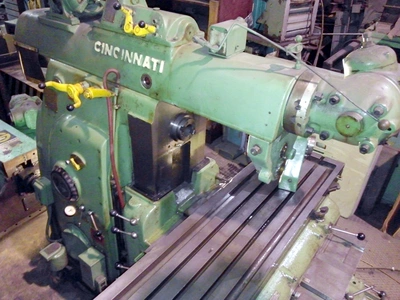

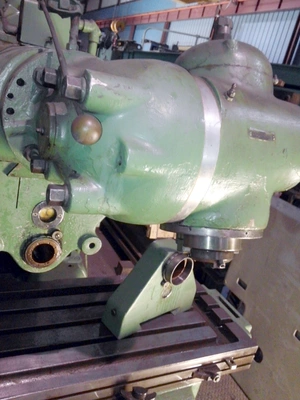

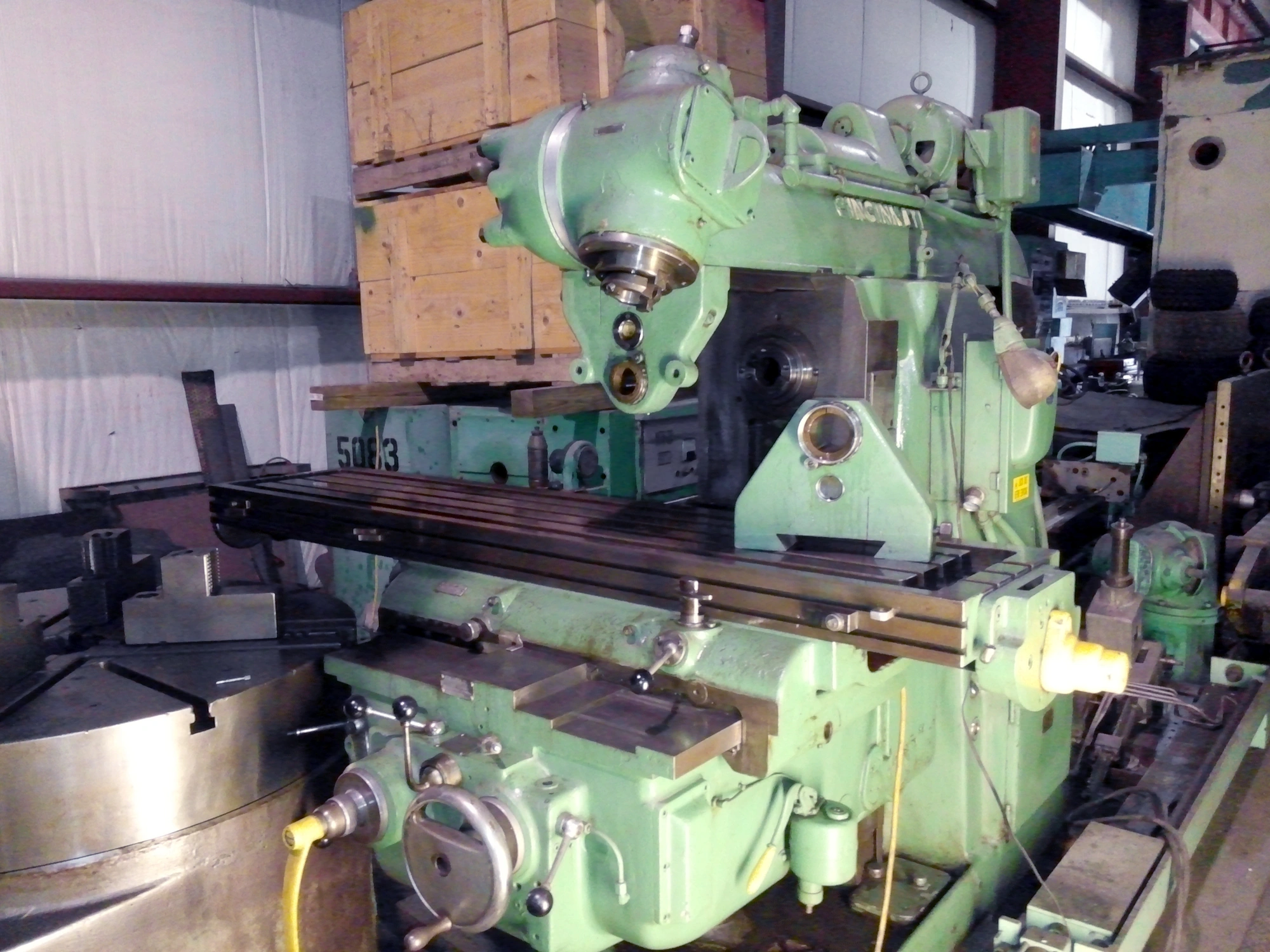

USED CINCINNATI #4 PLAIN

Table Length: 80.00 in 2032.00 mm
Table Width: 18.00 in 457.20 mm
Table Feed Range: 1.00 – 22.50 in/min 25.40 - 571.50 mm/min
Rapid Traverse: 150.00 in/min 3810.00 mm/min
Long Travel: 42.00 in 1066.80 mm
Cross Travel (Without Brace): 14.00 in 355.60 mm
Vertical Travel: 20.00 in 508.00 mm
Maximum Centerline Spindle to Top of Table: 20.00 in 508.00 mm
Maximum Face Column To Braces: 40.25 in 1022.35 mm
Motor Rating: 20.00 hp 14.91 kW
Spindle Quill Diameter: 5.10 in 129.54 mm
T-Slots: 3
Spindle Speeds: 24 (16 – 1400 RPM)
Horizontal Spindle Taper: #50
Universal Head Taper: #50
Coolant: Yes
Power: 3 Phase, 60 Hz, 220/440 Volts
Additional: Rectangular Dynapoise overarm, tooling, independent motorized head on overarm
Machine Length: 130.88 in 3324.35 mm
Machine Width: 139.00 in 3530.60 mm
Machine Weight: 12900.00 lbs 5851.34 kg
