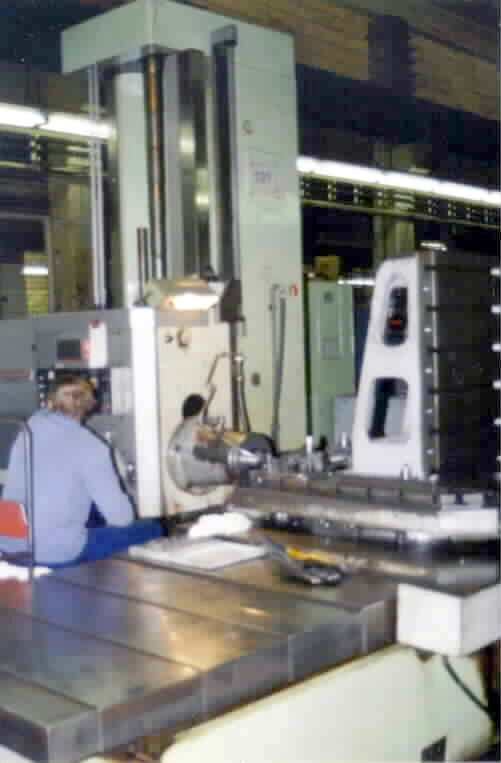

USED 1980 TOS WHN11NC

Control: New Heidenhain TNC 320 Full Contouring 5 Axis CNC, Optional - Num or Fagor CNC
X – Horizontal Table Travel: 92.00 in 2336.80 mm
Y – Vertical Headstock Travel: 50.00 in 1270.00 mm
Z – Spindle Travel: 27.50 in 698.50 mm
W – Saddle Travel: 40.00 in 1016.00 mm
B – Table Rotation: 360,000 Positions - Optional Contouring Table
Table Width: 55.00 in 1397.00 mm
Table Length: 55.00 in 1397.00 mm
Spindle Taper: 50
Spindle Power: 50.00 HP 37.50 kW
Spindle Speed: 3.5 - 1000 RPM Infinitely Variable
Spindle Drawbar: Power Drawbar
Ways: Hardened Ways
Way Covers: Steelflex Way Covers
Power: 3 PH / 60Hz / 440V existing
Additional: Power locks
Warranty: Manufacturers Warranty on New Control, Servo Motors, Servo Drives, and Spindle Drive, one Year on Replaced Parts
