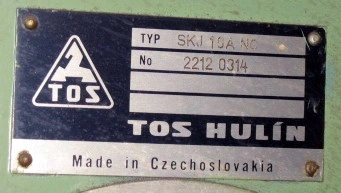

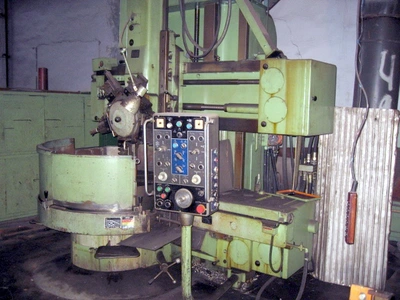

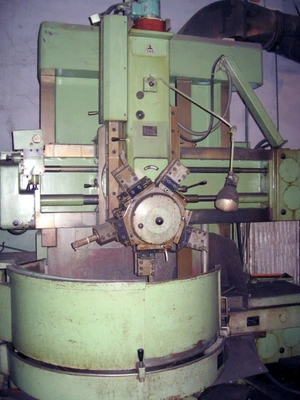

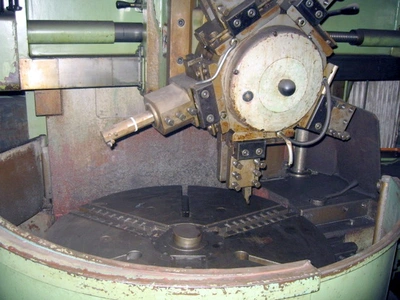

USED 1977 TOS SKJ-10A

Control: New Fanuc 0iTD CNC
Chuck Type: 3 Jaw
Swing: 45.28 in 1150.00 mm
Rated Max Swing: 47.30 in 1200.00 mm
Max Stroke Turret: 29.50 in 750.00 mm
Rapid Traverse: 100.00 in/min 2500.00 mm/min
Motor Power: 40.00 hp 30.00 kW
Gear Ranges: Stage 1: 2.5 – 60 rpm

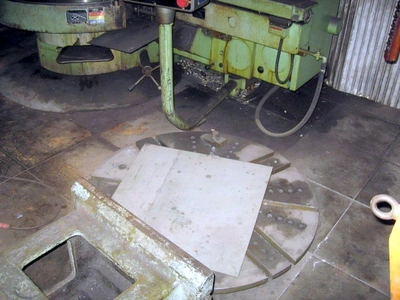

Table Diameter: 41.34 in 1050.04 mm
Processing Length: 45.28 in 1150.11 mm
Maximum Workpiece Weight: 6613.88 lbs 3000.00 kg
Maximum Workpiece Height: 33.47 in 900.00 mm
Faceplate RPM: 2.5 - 300
Additional: New Fanuc Alpha digital servo motors, new Fanuc servo drives, new Siemens spindle drive, new cabling, new magnetics
Machine Length: 100.00 in 2550.00 mm
Machine Width: 100.00 in 2550.00 mm
Machine Height: 143.00 in 3650.00 mm
Warranty: Two year manufacturer’s warranty on new CNC, one year on replaced parts
