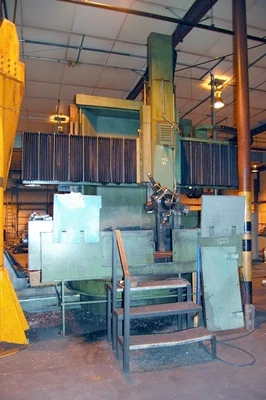

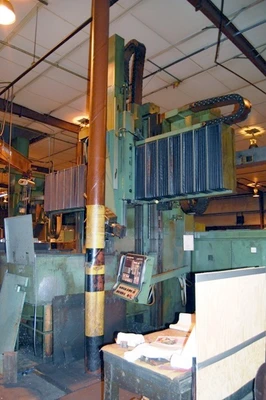

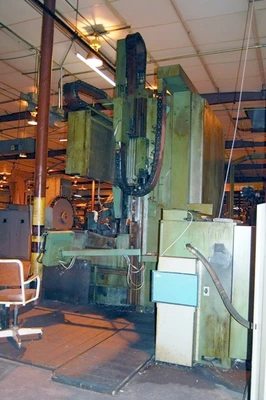

USED 1979 SUMMIT 170
Overview
Specs
Country of Manufacture: Italy
Control: GE Mark Century 100H 2-axis CNC

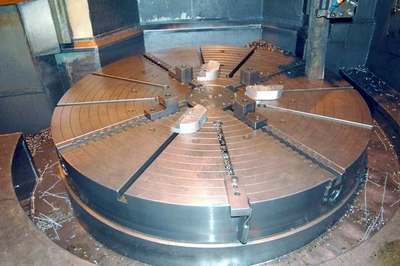

Chuck Type: Four-jaw with top jaws and independent jaw operation
Maximum Swing: 77.00 in 1955.80 mm
Maximum Turn Height Under Rail: 67.00 in 1701.80 mm
Maximum Table Load: 35247.00 lbs 15987.77 kg
Motor Power Output: 80.00 hp 59.66 kW
Motor Power Input: 3 phase, 60 cycle, 370/400 volts

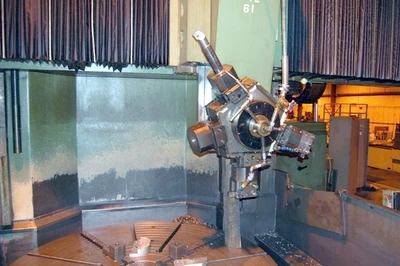

Tool Turret: Five-sided
Transformer Input: 480/240 delta, output 380 delta, 175 KVA
Rail Elevation Screws: Acme
Lubrication System: Automatic
Table Speed Ranges: Three, from 1 to 200 RPM
Table Diameter: 70.75 in 1797.05 mm
Chip Conveyor: Jorgensen with coolant pan and pump
Additional: Air conditioned electrical panel, no side head, feed and speed overrides, free standing hydraulic system, chuck area work guards, vertical column ways, hardened and ground replaceable rail and ram ways, accordion way covers on rail
