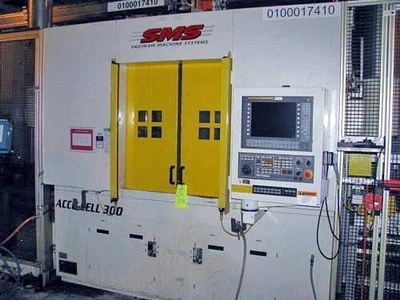

USED 2006 SMS ACCU-CELL AC-300-2

Control: Fanuc 160i-T
Swing: 16.00 in 406.40 mm
Maximum Turning Diameter: 16.00 in 406.00 mm
Maximum Turning Length: 14.00 in 355.60 mm
Spindle Speed: 0 - 3600 RPM Infinitely Variable
Chuck Type: Speed Grip Power Collet Chucks
Turret Number of Sides: 12
Number of Index Positions: 12
Z – Vertical Slide Travel: 14.00 in 355.60 mm
X – Horizontal Saddle Travel: 8.00 in 203.20 mm
Rapid Travel Speed: 650.00 in/min 16510.00 mm/min
Type: Turret
Z2 – Vertical Slide Travel: 14.00 in 355.60 mm
X2 – Horizontal Saddle Travel: 8.00 in 203.20 mm
Rapid Travel Speed: 600.00 in/min 15240.00 mm/min
Type: Turret
Power: 3 Phase/ 60hz/480vac Existing
Additional: 2 arm overhead gantry robot transfer systems; linear scales for x and z axis; air gauge flex gauge in-line computerized gauging station; Mayfran coolant pumpback system with 16" 2.2 kw single horizontal chip shredder; GE Fanuc series 90-30 PLC control; air conditioner for electrical cabinet
Machine Length: 102.00 in 2590.80 mm
Machine Width: 124.00 in 3149.60 mm
Machine Height: 126.00 in 3200.40 mm
