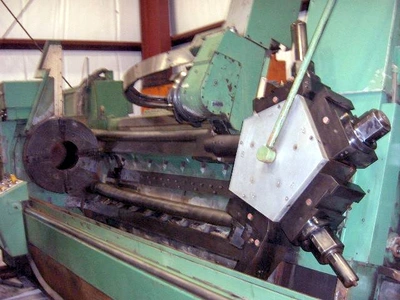

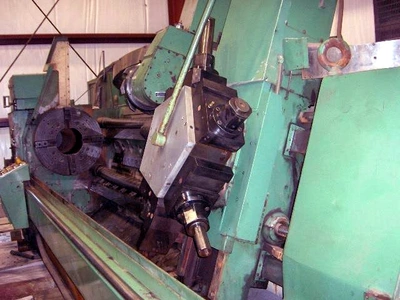

USED WARNER & SWASEY SC32 SLANT BED
Specs
Control: New Fanuc 18iTTB or Siemens 840D CNC
Swing Over Bed: 36.50 in 927.1 mm
Swing Over Carriage: 32.50 in 825.5 mm
Distance Between Centers: 120.00 in 3048 mm
X – Cross Slide Travel: 14.75 in 374.65 mm
Z – Carriage Travel: 130.00 in 3302 mm

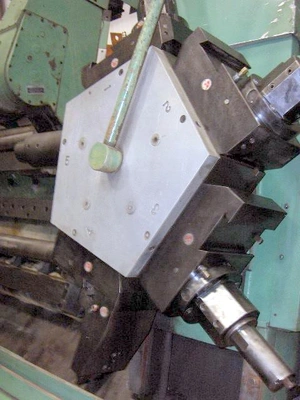

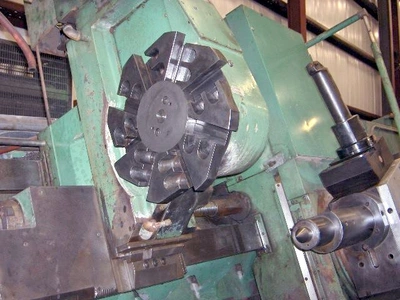

Turret 1: 6-Station Round on Slide 1
Turret 2: 5-Station Pentagon on Slide 2
Slide 2: End Turret, Can be Used as Tailstock Also
X2 – Cross Slide Travel: 21.63 in 549.4 mm
Z2 – Carriage Travel: 128.00 in 3251.2 mm

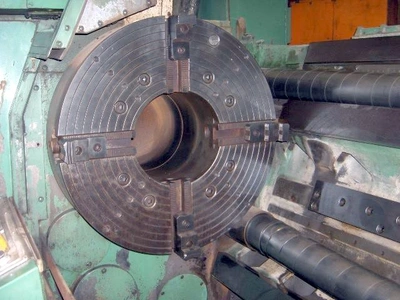

Chuck Diameter: 32.00 in 812.8 mm
Chuck Type: 4 Jaw Integral with Bolt-On Hard Jaws
Spindle Bore: 13.00 in 330.2 mm
Spindle Power: 75.00 HP 55.93 kW
Spindle Speed: 9 - 400 RPM Infinitely Variable
Chip Conveyor: Yes

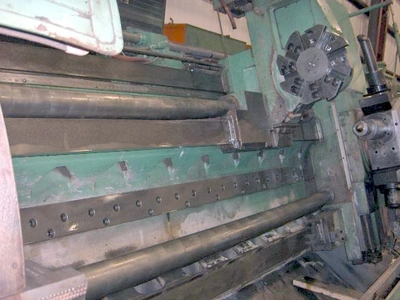

Ways: Hardened Replaceable
Power: 3 PH / 460V Existing
Additional: Two speed ranges, new CNC system, new servo motors, new servo and spindle drive, ways reground
