USED 1980 WARNER & SWASEY SC-20-120 SLANT BED
Overview
Specs

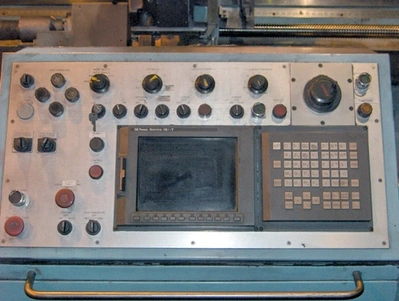

Control: Siemens 840 CNC or Fanuc 18iTB
Swing Over Bed: 28.00 in 711.2 mm
Swing Over Cross Slide: 21.00 in 533.4 mm
Swing Over Carriage: 25.00 in 635 mm
Distance Between Centers: 120.00 in 3048 mm
X – Cross Slide Travel: 13.75 in 349.25 mm
Turret 1: 8-Station
Chuck Diameter: 24.00 in 609.6 mm
Chuck Type: 4-Jaw Independent
Spindle Bore: 8.38 in 212.85 mm
Spindle Power: 75.00 HP 55.93 kW
Spindle Speed: 19 – 856 RPM, Infinitely Variable
Spindle Nose: A2-15
Power: Existing
Additional: Two spindle speed ranges
