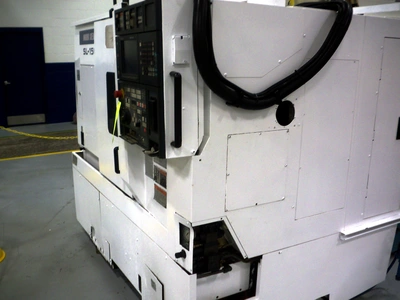

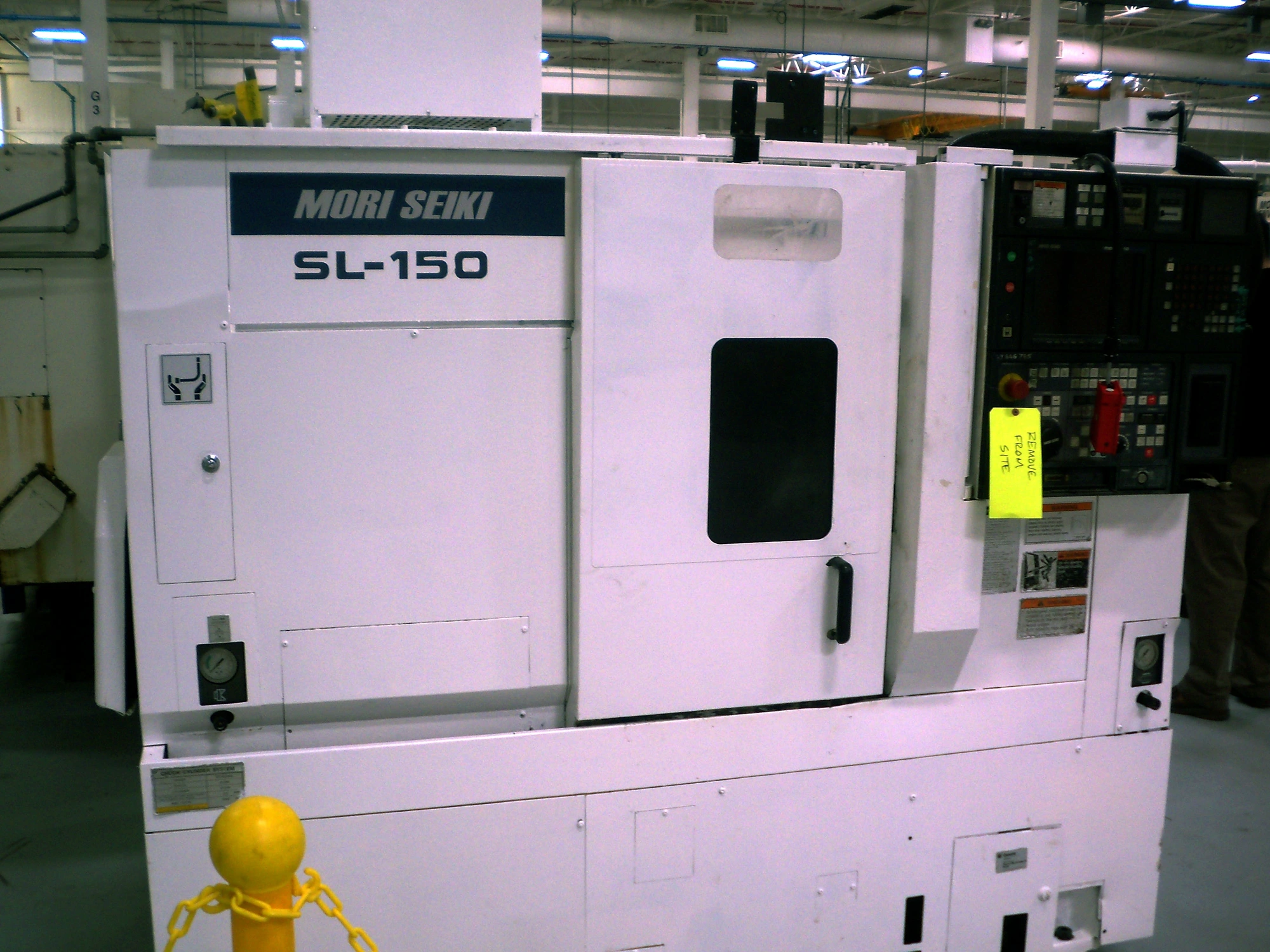

USED 1999 MORI SEIKI SL-150/500

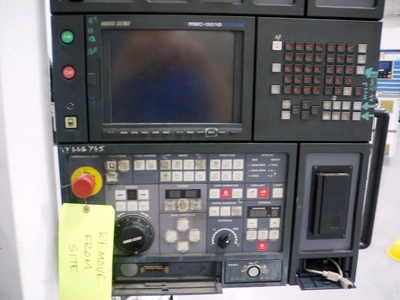

Control: MSC-500 CNC
Swing Over Bed: 26.70 in 678.18 mm
Swing Over Cross Slide: 17.90 in 454.66 mm
Distance Between Centers: 22.00 in 558.8 mm
X – Cross Slide Travel: 9.10 in 231.14 mm
Z – Carriage Travel: 20.50 in 520.7 mm
Turret 1: 12 Position
Turning Diameter Maximum: 16.9 in 429.26 mm
Turning Length Maximum: 20.4 in 518.16 mm
Spindle Bore: 2.20 in 55.88 mm
Spindle Speed: 50 – 5000 RPM, Infinitely Variable
Spindle Nose: A2-5
Tailstock: 20.30 Inch Travel
Tailstock Quill Travel: 4.70 in 119.38 mm
Rapid Traverse Rate: 708.00 in/min 17983.2 mm/min
Chip Conveyor: Yes
Power: 3 ph / 50–60 Hz / 200–500 Volts Existing
Machine Length: 120.00 in 3048 mm
Machine Width: 72.00 in 1828.8 mm
Machine Height: 72.00 in 1828.8 mm
