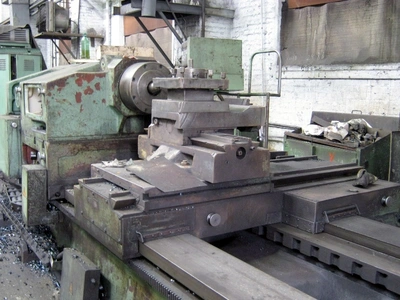

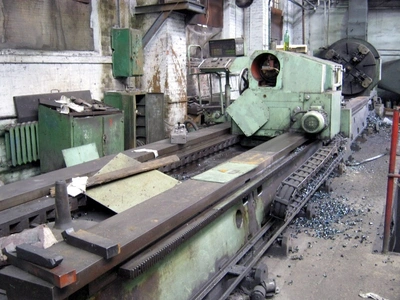

USED 1989 KRAMATORSK 1A66O.400

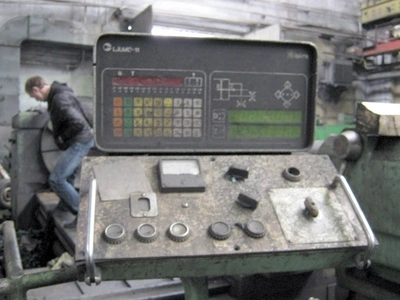

Control: Digital Readout or Full CNC
Swing Over Bed: 56.25 in 1428.75 mm
Swing Over Cross Slide: 40.75 in 1035.05 mm
Distance Between Centers: 320.00 in 8128.00 mm
Swiveling Compound Angle Slide Travel: 8.00 in 200.00 mm
Top Cross Slide Travel: 16.00 in 400.00 mm
X – Cross Slide Travel: 39.37 in 1000.00 mm
Z – Carriage Travel: 300.00 in 7620.00 mm
Large Steady Rest Opening(Excluding Rollers Or Wear Pads): 25.50 in 650.00 mm
Small steady rest opening(Excluding rollers or wear pads): 14.90 in 380.00 mm
Chuck Diameter: 49.00 in 1244.60 mm

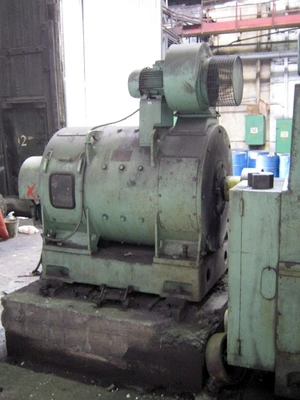

Spindle Power: 150.00 HP 111.85 kW
Tailstock Quill Diameter: 0.24 in 6.10 mm
Weight Capacity Between Centers: 70000.00 lbs 31751.44 kg

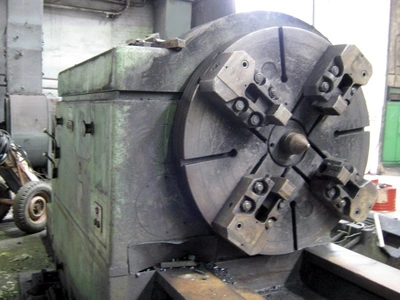

Chuck Type: Faceplate with 4 Bolt-On Hard Jaws
Spindle Speed: 1.60 – 200.00 RPM Infinitely Variable
Tailstock: Powered Tailstock
Chip Conveyor: Optional
Coolant: Optional

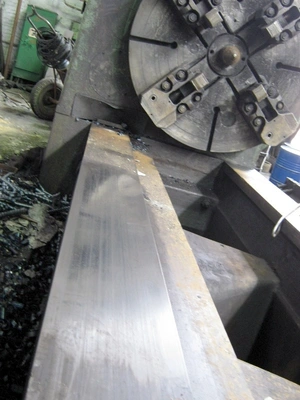

Ways: Cast Iron
Power: As Needed

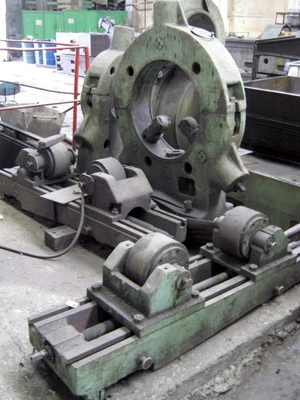

Additional: Dual cross slides, two closed three-point steady rests with changeable end contacts, also two adjustable half steady roller rests maximum diameter 40 inch (1016 mm)
Machine Length: 592.00 in 15036.80 mm
Machine Width: 83.50 in 2120.90 mm
Machine Height: 94.50 in 2400.30 mm
