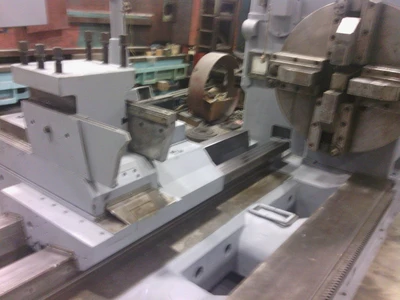

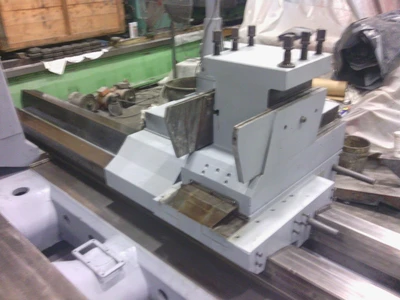

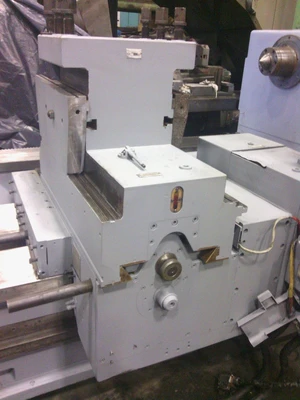

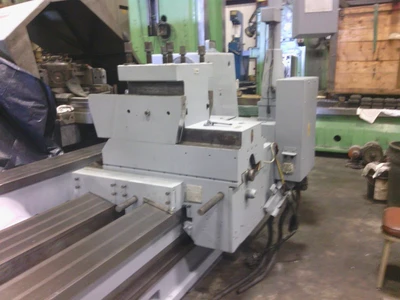

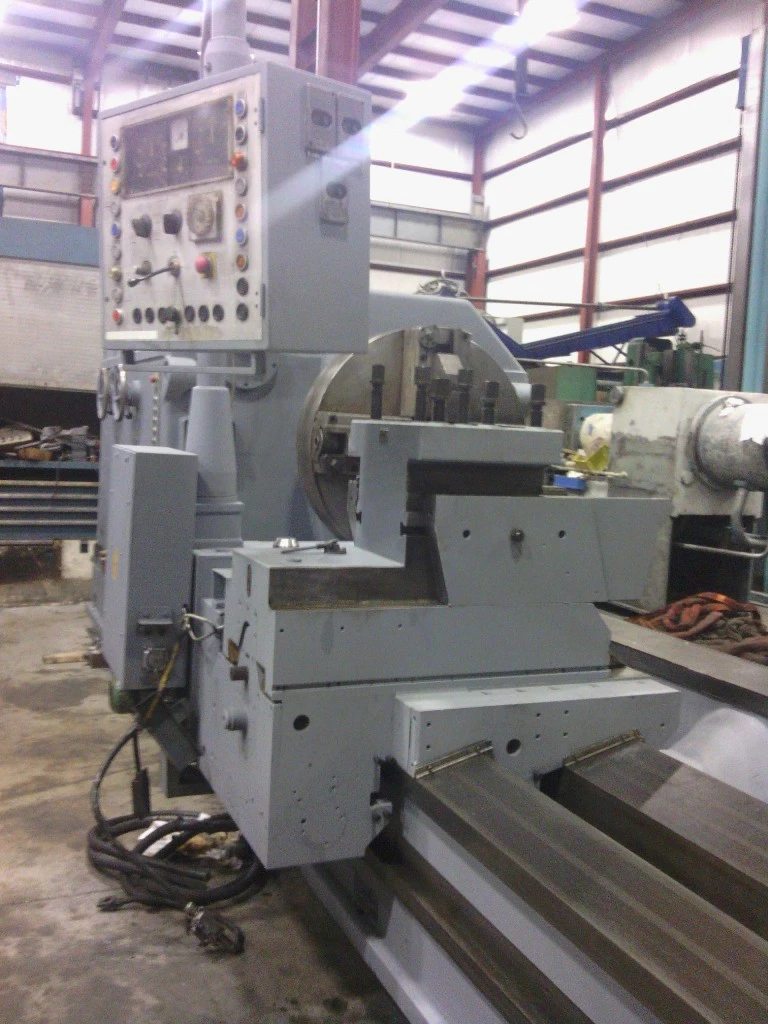

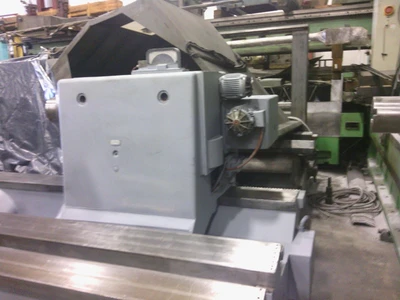

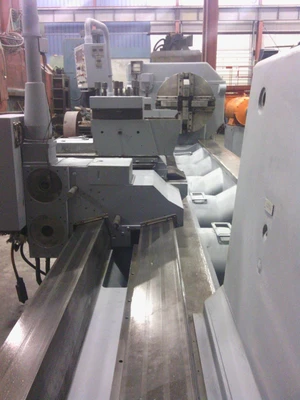

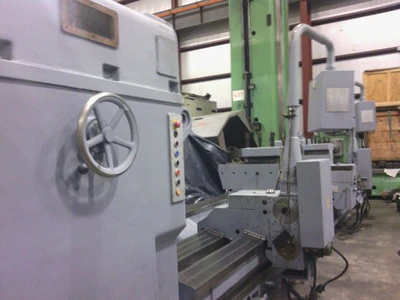

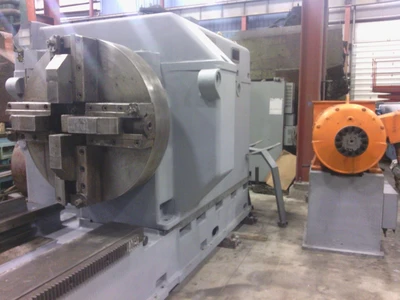

USED 1970 HERKULES WDK600

Control: Manual Pendant or new Fanuc CNC
Swing Over Bed: 55.00 in 1397 mm
Swing Over Cross Slide: 47.00 in 1193.8 mm
Distance Between Centers: 250.00 in 6350 mm
X – Cross Slide Travel: 26.00 in 660.4 mm
Z – Carriage Travel: 186.00 in 4724.4 mm
X2 – Cross Slide Travel: 26.00 in 660.4 mm
Z2 – Carriage Travel: 186.00 in 4724.4 mm
Swing Over Cross Slide 2: 47.00 in 1193.8 mm
Chuck Diameter: 45.30 in 1150.62 mm
Chuck Type: Face Plate with 4 Bolt-On Independent Jaws
Spindle Power: 241.00 HP 179.71 kW
Spindle Nose: 1.25 - 100 Rpm, 4 Ranges, Infinitely Variable
Tailstock: Powered Tailstock
Tailstock Quill Diameter: 10.12 in 257.05 mm
Weight Capacity Between Centers: 50000 lbs 22679.6 kg
Chip Conveyor: Optional
Coolant: Optional
Ways: Hardened Replaceable
Power: As Needed
Additional: Two turning saddles, monoblock construction with four guideways (two for carriage, and two for tailstock), bed width 63 inches (1600 mm), 24 ton tailstock force gauge, steady rest (roller type), maximum diameter 15.75 inches (400 mm), new servo motors and drives, new spindle drive, all new electrics, new scales
Machine Length: 500.00 in 12700 mm
Machine Width: 145.67 in 3700.02 mm
Machine Height: 98.43 in 2500.12 mm
