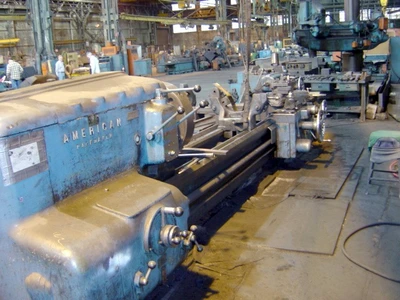

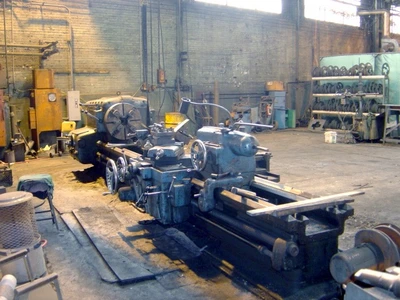

USED 1956 AMERICAN PACEMAKER
Overview
Specs
Swing Over Bed: 33.00 in 838.20 mm
Swing Over Cross Slide: 19.00 in 482.60 mm
Distance Between Centers: 154.00 in 3911.60 mm
X – Cross Slide Travel: 16.00 in 406.40 mm
Z – Carriage Travel: 148.00 in 3759.20 mm
Turret 1: 4-Sided Indexing Tool Post
Chuck Diameter: 24.00 in 609.60 mm
Chuck Type: 4-Jaw Independent with Integral Master Jaw and Reversible Bolt-On Top Jaws, Cushman 10 004 24 L03D
Spindle Bore: 2.81 in 71.37 mm
Spindle Power: 40.00 hp 29.83 kW
Spindle Speed: 9 - 900 RPM 27 Steps
Spindle Nose: L3
Tailstock Quill Diameter: 5.00 in 127.00 mm
Ways: Hardened Replaceable BD Ways
Power: 3PH / 60 Hz / 480 Volt Existing
Additional: Taper attachment, heavy duty steady rest with 16 1/2 in (415 mm) capacity, ways reground, carriage re-scraped, tailstock aligned
Machine Length: 305.00 in 7747.00 mm
Machine Width: 90.00 in 2286.00 mm
Machine Height: 65.00 in 1651.00 mm
