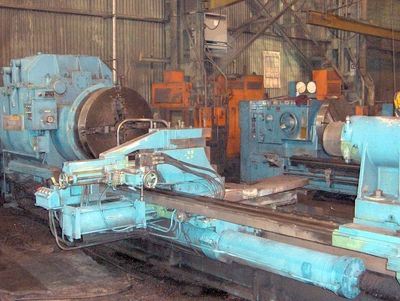

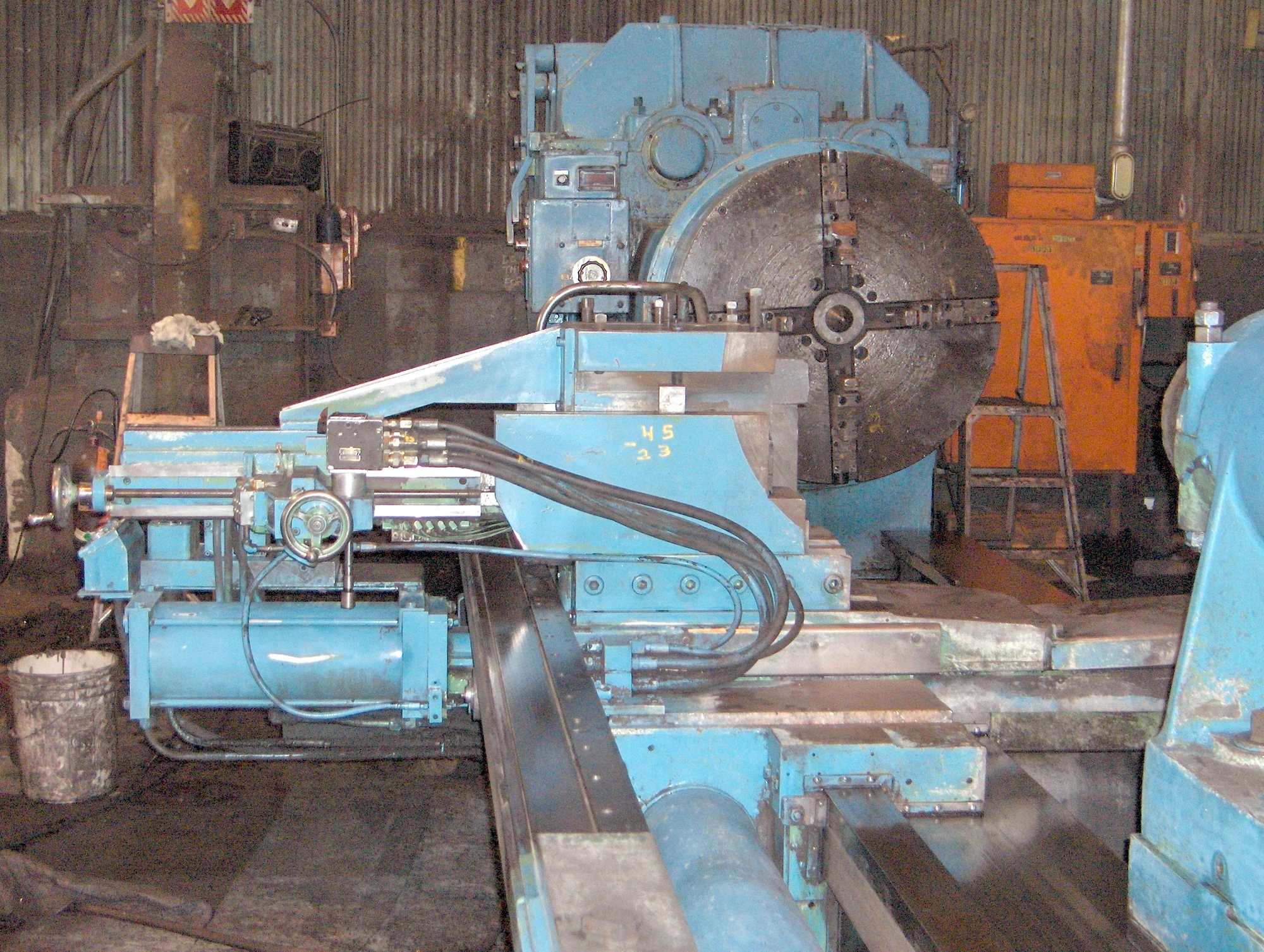

USED 2010 YOUNGSTOWN 50R FLAT BED
Overview
Specs
Control: New Siemens 840d or Fanuc CNC
Swing Over Bed: 59 in 1498.6 mm
Swing Over Cross Slide: 39 in 990.6 mm
Distance Between Centers: 162 in 4114.8 mm
Chuck Diameter: 40 in 1016 mm
Chuck Type: 4-Jaw Independent
Spindle Power: 50 HP 1270 mm
Spindle Speed: .73 - 80 RPM
Tailstock: Live Center Built into Quill
Tailstock Quill Diameter: 11 in 279.4 mm
Power: Existing
Additional: Carriage travel with tailstock removed 200 in (5080 mm), new servo motors, servo drives and spindle drive, reground hardened ways, reground ball screws on carriage and cross slide, optional spindle horsepower increase to 75 HP (56.25kW)
