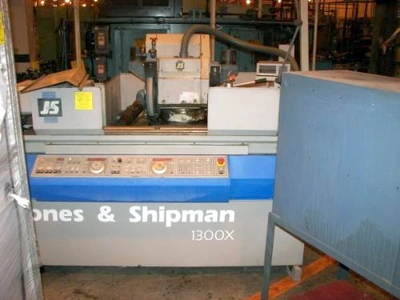

USED 1998 JONES & SHIPMAN 1300 X 1000

Control: Jones & Shipman with Heidenhain digital readouts
Distance Between Centers: 40.00 in 1016.00 mm
Swing: 13.50 in 340.00 mm
Total Infeed: 9.60 in 244.00 mm
Minimum Programmable Increment: 0.00005 in 0.00127 mm
Maximum Programmable Diametrical Infeed Rate: 3.90 in/min 100.00 mm/min
ID Grinding Diameter Range with Standard Spindle: 0.75 - 1.50 in 19.00 – 38.00 mm
Maximum Workpiece Weight: 220.00 lbs 100.00 kg
Wheel OD Maximum Left Hand: 14.00 in 355.00 mm
Wheel OD Maximum Right Hand: 12.00 in 305.00 mm
Wheel Width Maximum Left Hand: 2.00 In 50.80 mm
Wheel Width Maximum Right Hand: 1.00 in 25.40 mm
Wheel ID Left and Right Hand: 5.00 in 127.00 mm
Wheel Spindle Power: 5.50 hp 4.13 kW
Wheel Spindle Speed: 1775, 2068, 2400 RPM
Wheel Dresser: Single Point, Tailstock Mounted
Work Head Power: 1.50 hp 1.13 kW
Work Head Speed: 1 - 660 RPM Infinitely Variable
Wheelhead Swivel Range: 190 degrees clockwise to 45 degrees counterclockwise
Table Swivel Angle: 10 degrees clockwise to 16 degrees counterclockwise
Workhead Swivel Angle: 15 degrees clockwise - 90 degrees counterclockwise
ID Spindle Type: Fixed
ID Wheel Speed: 16500 RPM
ID Wheel Power: 3.00 hp 2.25 kW
Tailstock Center Taper: #5 MT
Coolant: Yes
Way Covers: Yes
Power: Existing
Machine Length: 120.00 in 3050.00 mm
Machine Width: 74.00 in 1880.00 mm
Machine Height: 72.00 in 1830.00 mm
