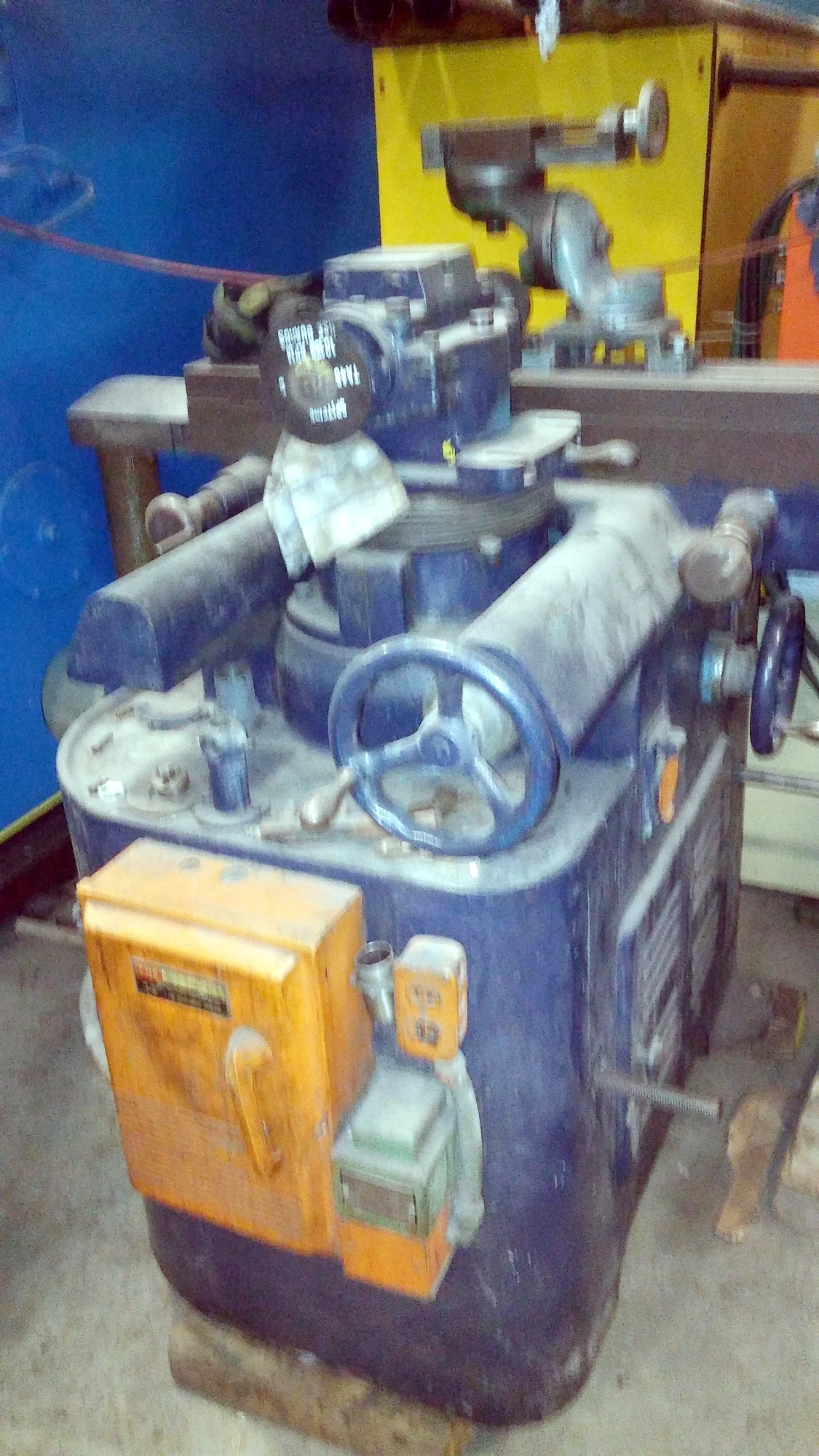

USED CINCINNATI 2

Swing over Table: 10.00 in 254.00 mm
Swing over Table (with Raising Blocks): 14.00 in 355.60 mm
Length (between Right and Left Tailstocks): 30.00 in 762.00 mm
Length (between Tailstock and Work Head): 24.50 in 622.30 mm
Face Mills on Work Head: 10.00 in 254.00 mm
Face Mills using Face Mill Grinding Attachment: 18.00 in 457.20 mm
Saws on Table: 48.00 in 1219.20 mm
Formed Cutters (Using 6” Wheel): 10.00 in 254.00 mm
T-Slots: 1
T-Slot Size: .563” / .565”
Working Surface: 5.50” x 39.00”
Longitudinal Movement of Table: 16.00 in 406.40 mm
Cross Movement of Table: 8.00 in 203.20 mm
Table Swivels: 180 degrees
Table Graduations on End, for taper of: 2” per foot
Table Graduations in Center: 90 degrees
Vertical Movement of Grinding Wheel Spindle: 10.50 in 266.70 mm
Swivel Movement of Grinding Wheel Spindle: 240 degrees
Maximum Distance Center Line Spindle to Top of Table: 13.13 in 333.38 mm
Motor Power: 1.00 hp 0.75 kW
Motor Speed: 2825 RPM
Surface Speed (Using 6” Wheel): 5965.00 ft/min 1818.13 m/min
Surface Speed (Using 3.5” Wheel): 5175.00 ft/min 1577.34 m/min

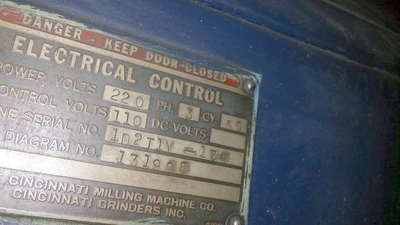

Power: 220 Volt / 3 Phase / 60 Hertz
Machine Length: 56.00 in 1422.40 mm
Machine Width: 68.50 in 1739.90 mm
Machine Height: 57.00 in 1447.80 mm
Machine Weight: 2815.00 lbs 1276.86 kg
