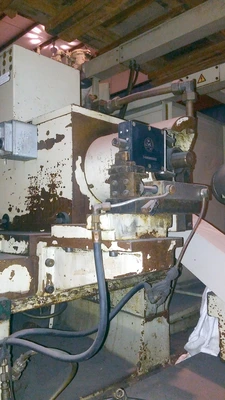

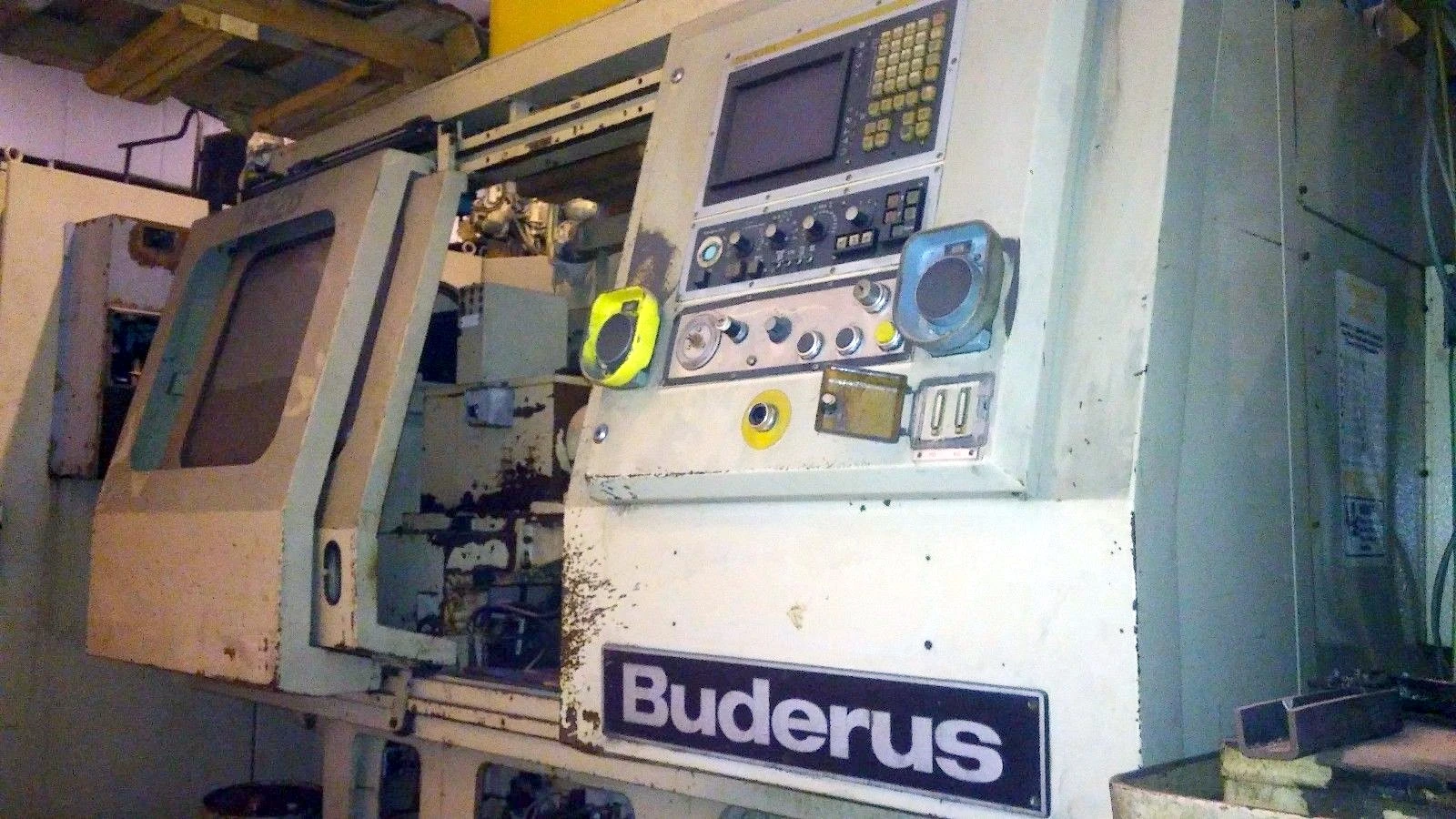

USED 1992 BUDERUS 352

Control: Siemens
Infeed X: 2.00 in 50.80 mm
Infeed Y: 4.00 in 101.60 mm
Maximum Internal Diameter: 8.00 in 203.20 mm
Minimum Internal Diameter: 0.50 in 12.70 mm
Swing Diameter: 9.00 / 30.00 in 228.60 / 762.00 mm
Stroke of Table: 20.00 in 508.00 mm
Panel Length (Approximate): 95.00 in 2413.00 mm
Panel Width (Approximate): 31.00 in 787.40 mm
Panel Height (Approximate): 82.00 in 2082.80 mm
[Surface / External Grinding:]
Maximum Diameter: 11.02 in 280.00 mm
Center Height: 12.60 in 320.00 mm
X – Head Cross Travel: 8.66 in 220.00 mm
Z Axis: 14.17 in 360.00 mm
Maximum Grinding Wheel Diameter: 23.62 in 600.00 mm
Maximum Grinding Wheel Width: 1.42 in 36.00 mm
[Internal Grinding:]
Minimum Diameter: 0.39 in 10.00 mm
Maximum Diameter: 7.87 in 200.00 mm
Maximum Grinding Depth: 7.87 in 200.00 mm
Spindle Bore: 5.91 in 150.00 mm
Maximum Distance Workpiece – Grinding Spindle: 31.50 in 800.00 mm
Minimum Longitudinal Travel of Table: 0.02 in 0.50 mm
Maximum Longitudinal Travel of Table: 196.85 in 5000.00 mm
Minimum Cross Travel of Grinding Slide: 0.000003937 in 0.0005 mm
Maximum Cross Travel of Grinding Slide: 4.72 in 120.00 mm
[Work Spindle:]
Bore: MK 4
Swivel Maximum: 30°
Speeds (Stepless): 0 – 710 RPM
Infeed Minimum: 0.000003937 in 0.0005 mm
Infeed Maximum: 0.003937008 in 0.1000 mm
Table Speeds Minimum (Stepless): 1.64 ft/min 0.50 m/min
Table Speeds Maximum (Stepless): 49.21 ft/min 15.00 m/min
Feeds Mininum (Stepless): 0.03 ft/min 0.01 m/min
Feeds Maxinum (Stepless): 32.81 ft/min 10.00 m/min
Total Power Consumption: 40 kW
Internal Grinding Spindle: GMN TSS V, 7.5 kW, 15000 RPM
Surface Grinding Spindle: GMN TSA V, 7.5 kW, 1445 RPM
Power: 380 Volts, 50 Hz, Existing
Machine Length: 173.23 in 4400.00 mm
Machine Width: 196.85 in 5000.00 mm
Machine Height: 90.55 in 2300.00 mm
Machine Weight: 7716.18 lbs 3500.00 kg
