USED 1990 TOYODA G32N (MACHINE #RC1667)

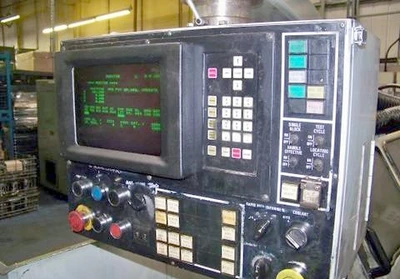

Control: G32N CNC
Wheel OD: 20.00 in 508.00 mm
Wheel ID: 8.00 in 203.20 mm
Wheel Width Maximum: 3.00 in 76.20 mm
Wheel Head Angle: Fixed Angle - 30 Degrees From Workhead Rotational Axis
Distance Between Centers: 42.00 in 1066.80 mm
Swing Over Table: 12.60 in 320.04 mm
Maximum Workpiece Weight: 330.00 lbs 149.69 kg
Maximum Grinding Diameter: 12.00 in 304.80 mm
Wheel Spindle Power: 7.50 HP 5.59 kW
Wheel Spindle Speed: 8850.00 ft/min 2697.48 m/min
Wheel Dresser: Diamond Single-Point
Work Head Spindle Taper: 4 MT
Work Head Spindle Speed: 16 – 500 RPM Infinitely Variable
Foot Stock Quill Taper: 4 MT
Coolant: Yes, 40 Gallon
Filtration System: Filtermist Extraction
Power: Existing

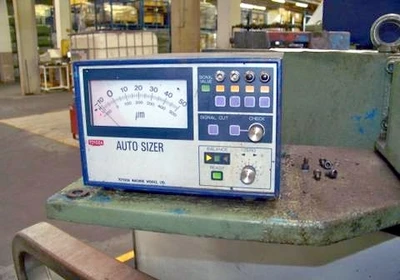

Additional: Measuring probe, part gauging, shoulder/length gauging, universal table
Machine Length: 160.00 in 4064.00 mm
Machine Width: 66.00 in 1676.40 mm
Machine Height: 79.00 in 2006.60 mm
