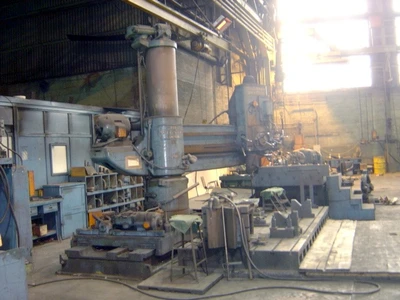

USED 1964 CINCINNATI BICKFORD SUPER SERVICE - TRAVELING COLUMN

Arm Length: 8.00 ft 2.44 m
Column Travel: 174.00 in 4420.00 mm
Head Travel: 7.00 ft 2.13 m
Column Diameter: 19.00 in 483.00 mm
Spindle Power: 15.00 hp 11.25 kW
Spindle Speed: 21 - 1278 RPM
Spindle Taper: #6 Morse Taper
Spindle Power: 15 hp 11.19 kW
Table: Power adjustable angle table 60 x 60 in (1524 x 1524 mm), height with table in horizontal position 38 in (965 mm), includes 18 x 60 in (457 x 1524 mm) v-block
Feed Range: .006 - .125 18 Steps
Threads Per Inch: 8, 11 1/2, 14
Coolant: No
Power: 3 Phase, 50 - 60 Hz, 200 - 600 Volts existing
Additional: Rapid traverse on head, power locks on head and column, power elevation, adjustable depth stop on spindle, cast iron ways, floor plate: 120 x 192 x 6 in (3050 x 4875 x 152 mm) with 10 t-slots
Machine Length: 258.00 in 6553.00 mm
Machine Width: 62.00 in 1575.00 mm
Machine Height: 159.00 in 4039.00 mm
Machine Weight: 40000.00 lbs 18182.00 kg
