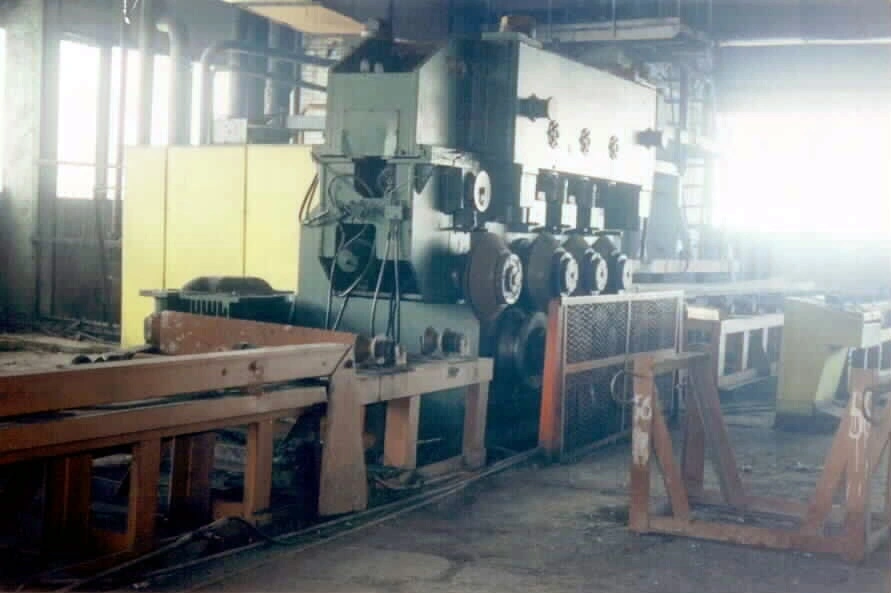

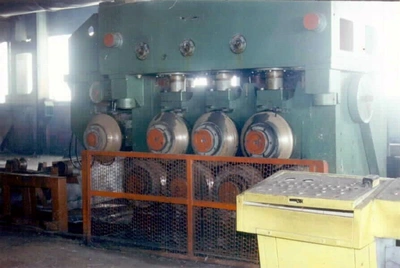

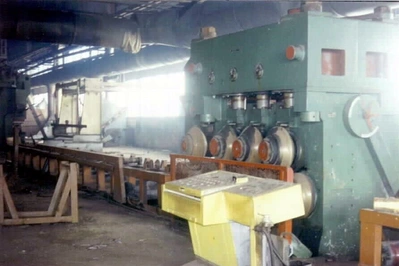

USED 1978 SKET XRP-100

Maximum Straightening Movement: 122.00 ft 0.37 hm
Working Height: 51.00 in 1300.00 mm
Axial Shift of all Rolls: 1.60 in 40.64 mm
Maximum Shift of Upper Rolls: 4.70 in 119.38 mm
Maximum Shift of Final Rolls: 4.70 in 119.38 mm
Straightening Speed: 24; 48; 60; 120 m/min
Minimum Admissible Bendingof Bars Before Straightening: 12 mm/m
Maximum Admissible Bendingof Bars Before Straightening: 350 mm/6m
Minimum Admissible Bendingof Bars After Straightening: 5 mm/m
Maximum Admissible Bendingof Bars After Straightening: 30 mm/6m
Length of Non-Straightening Rod Ends: 25.00 in 635.00 mm
Max Yield Limit of Straightening Material: 750 mPa
Maximum Moment of Resistancefor 300 MPa: 100 cm .3
Maximum Diameter Of StraighteningMaterial For 400 Mpa Rated:(400 Mp = 580x102 = 58,000 Psi (1P = 1.45x104)): 4.00 in 101.60 mm
Maximum Diameter Of StraighteningMaterial For 300 Mpa Actual:(300 Mp = 435x102 = 43,500 Psi (1P = 1.45x104)): 5.00 In 127.00 mm
Circular Profile Minimum / Maximum: 50/10
4 Face (45 Degree) Minimum / Maximum: 50/10
6 Face Minimum / Maximum: 50/10
Plane Profile Minimum / Maximum: 100 X 30 / 410 X 25
Profile (45 Degree) Minimum / Maximum: 80 / 160
T-Shaped Minimum / Maximum: 8 / 14
Channel-Type Minimum / Maximum: 14 / 24
2 T-Shaped Minimum / Maximum: 14 / 22
Number of Straightening Rolls + Final Roll, Ps: 7 + 1
Maximum External Diameter of Rolls: 23.60 in 599.44 mm
Spacing Between Straightening Rolls: 24.80 in 629.92 mm
Number of Lower Roll Electric Motors: 2
Lower Roll Motor Power: 70.00 HP 52.20 kW
Auxiliary Electric Motors: 35.00 HP 26.10 kW
Specific Pressure on a Basis, Kpa: 770
Power: 3 PH / 50Hz / 220-280 V Existing
Machine Length: 174.00 in 4419.60 mm
Machine Width: 109.00 in 2768.60 mm
Machine Height: 129.00 in 3276.60 mm
