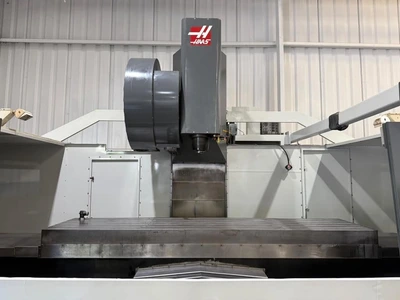

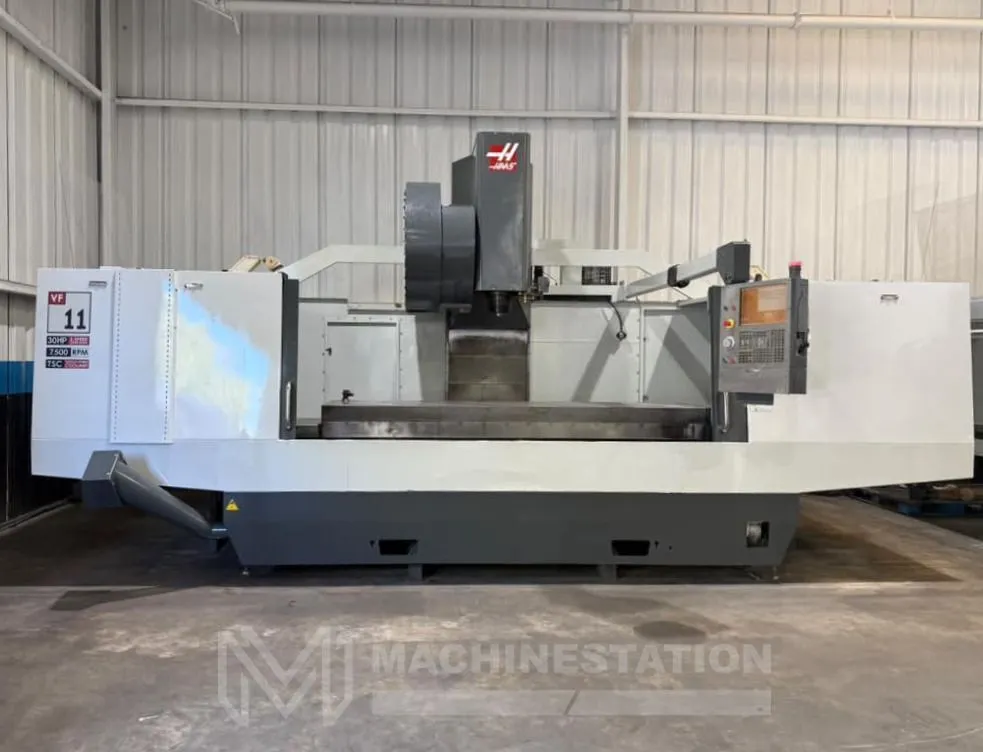

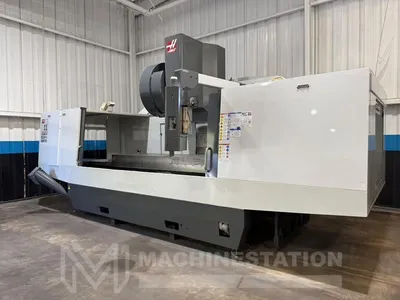

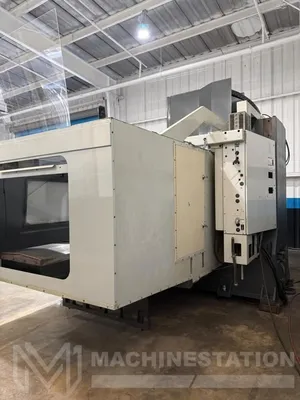

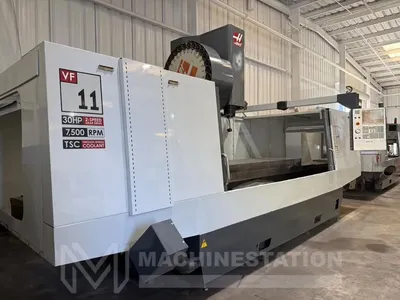

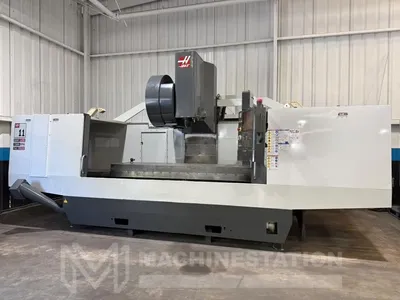

USED 2008 HAAS VF-11/50

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

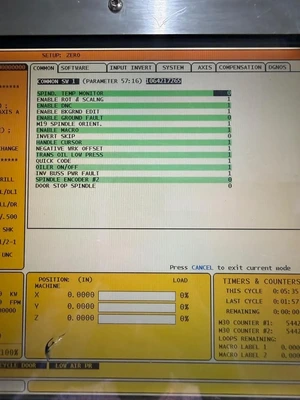

Features:

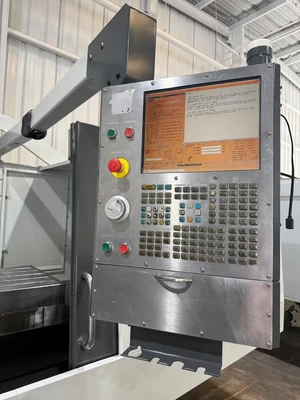

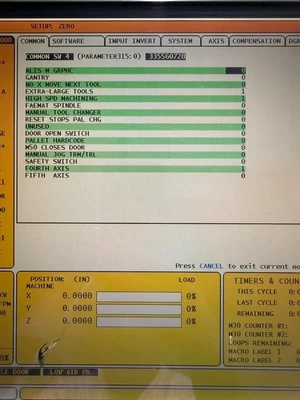

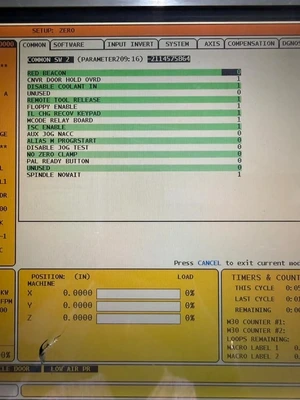

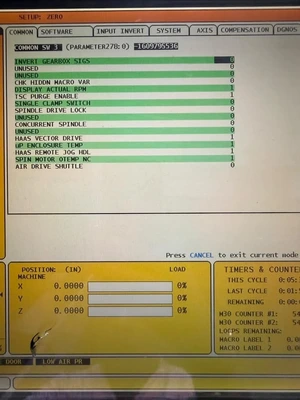

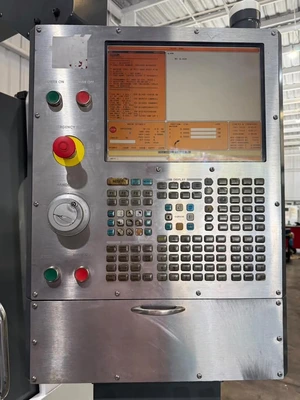

Haas CNC Control
Rigid Tapping
Rotation and Scaling
Floppy Enable
Enable DNC
M19 Spindle Orientation
Enable Macro
Quick Code
Expanded Memory
Advance Tool Management
Extra Large Tools
Coolant Tank

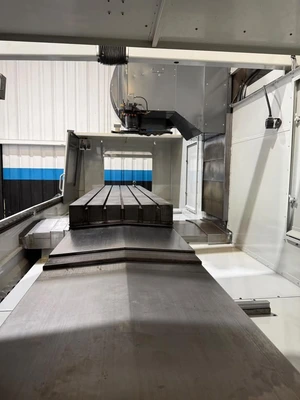

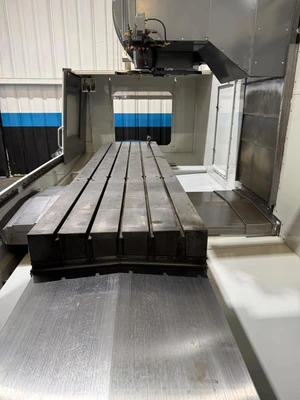

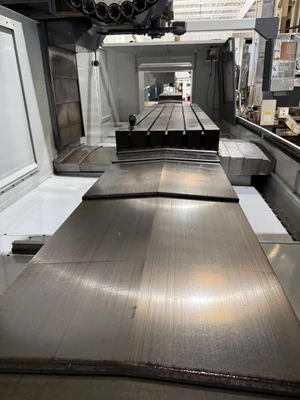

Table:
Length: 120″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 0.626″
Max Weight on Table: 4000 lbs

Travel:
X-Axis Travel: 120″
Y-Axis Travel: 40″
Z-Axis Travel: 30″
Rapid Traverse X: 360 IPM
Rapid Traverse Y: 600 IPM
Rapid Traverse Z: 600 IPM
Cutting Feed Rate: 360 IPM
Spindle Nose to Table (Min.- Max.): 5″–35″

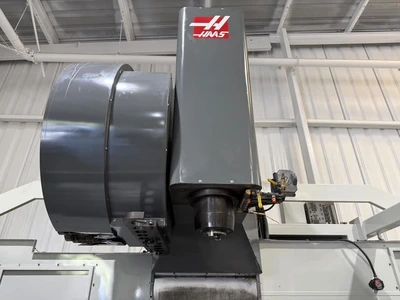

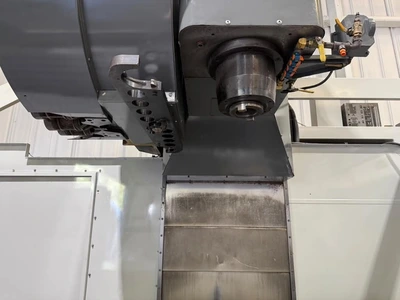

Spindle:
Taper Size: CAT-50
Speed Range: 7,500 RPM
Spindle Power: 30 HP
Drive System: 2-Speed Gear Drive

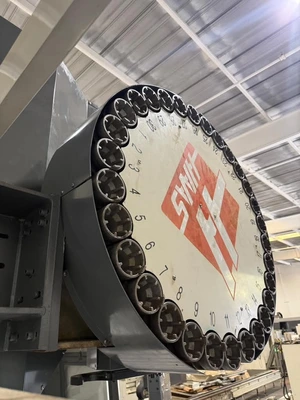

Automatic Tool Changer:
Capacity: 30 Station
Max Tool Diameter (Full): 4.02″
Max Tool Length: 16.00″
Max Tool Weight: 30 lbs

General:
Air Required: 100 psi, 4 scfm
Power: 208-230v / 3-Phase / 50-60 Hz
Overall Dimensions: 288″ x 120″ x 131″ High
Weight: 35,700 lbs Approx.
