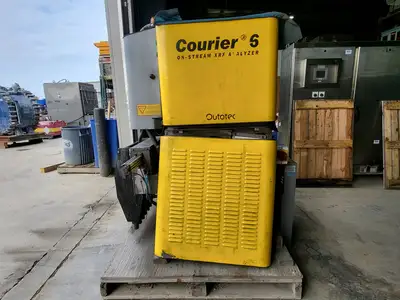

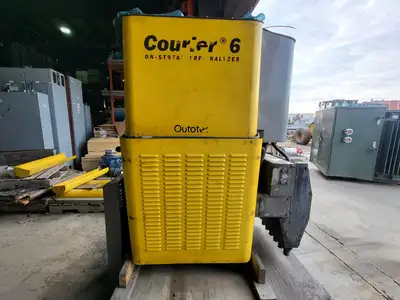

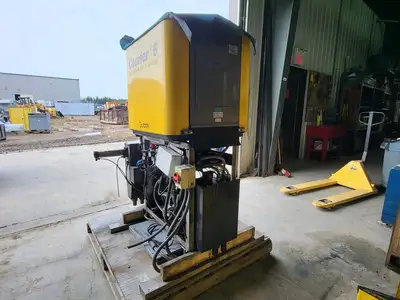

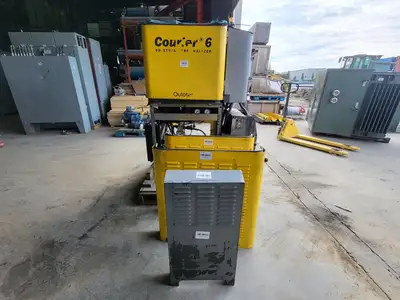

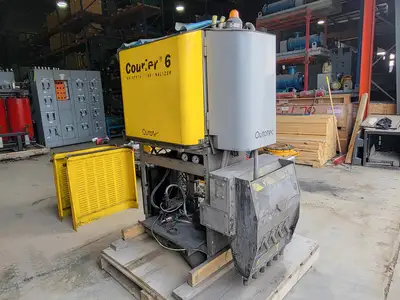

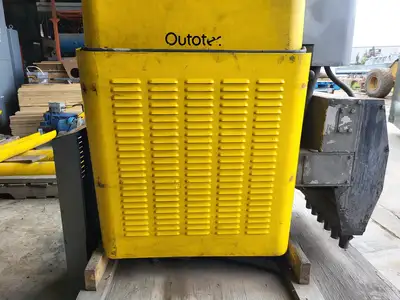

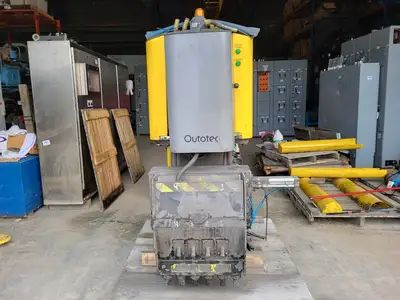

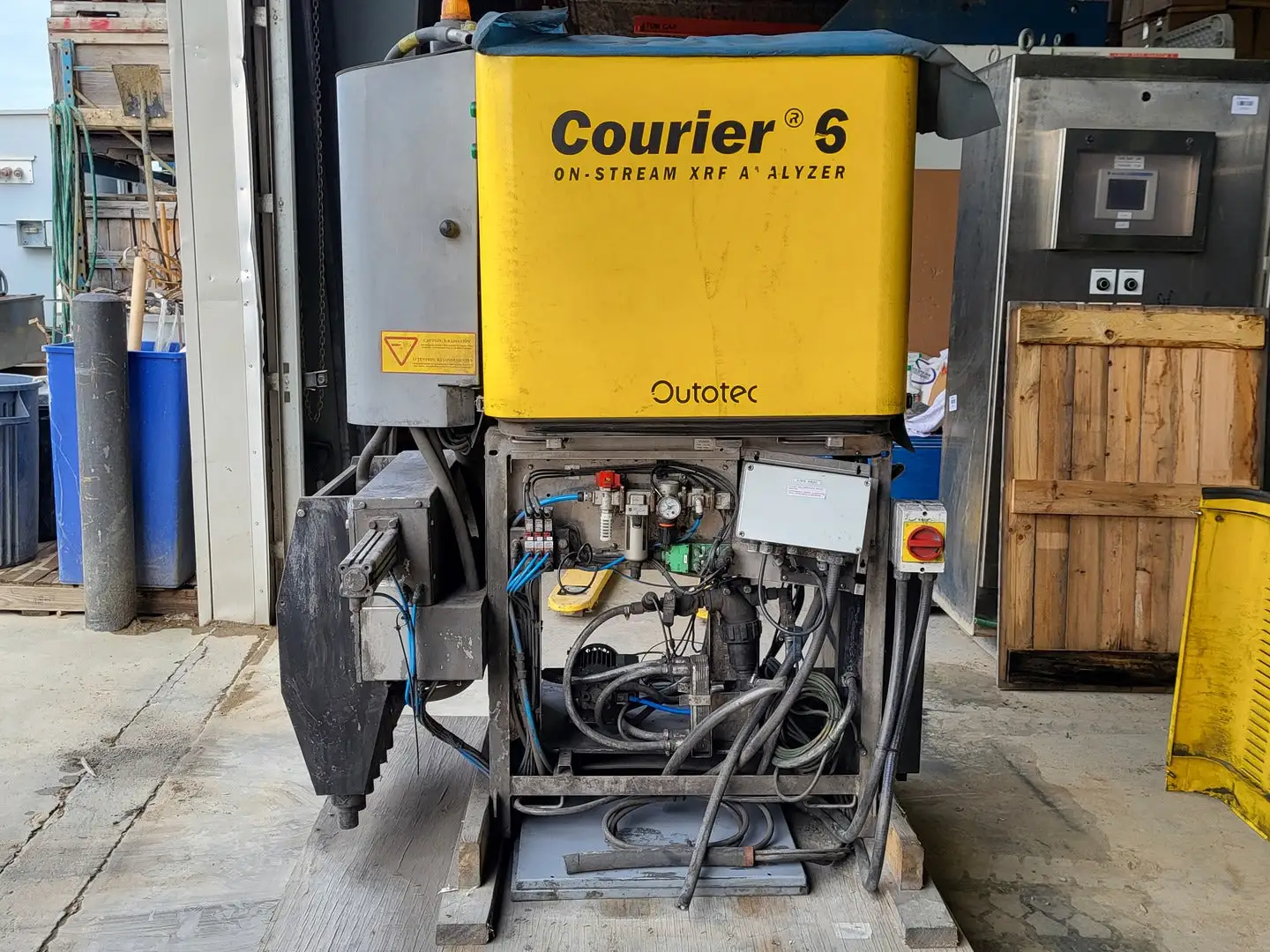

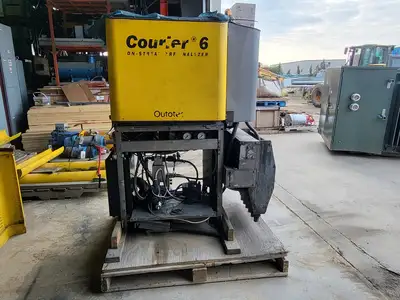

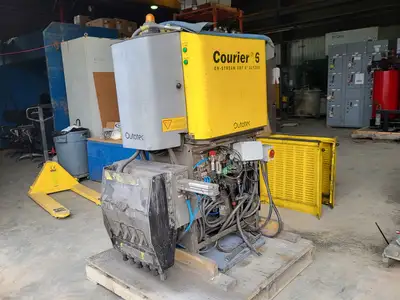

USED 2009 OUTOTEC COURIER 6I

Description: Courier 6i analyzer is designed for accurate and reliable on-stream X-ray fluorescence (XRF) measurement of element concentrations in slurries for up to 24 samples.

Analysis Method: The analysis method is Wavelength Dispersive X-ray Fluorescence (WDXRF) with X-ray tube excitation and fixed crystal spectrometers. An additional Energy Dispersive (EDXRF) measurement can be performed by using an optional proportional counter and/or a Peltier cooled solid state detector.

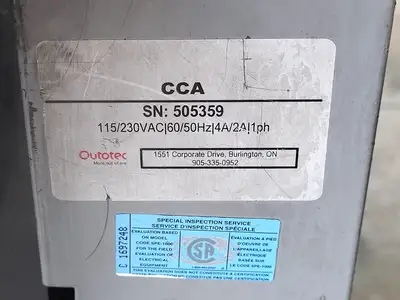

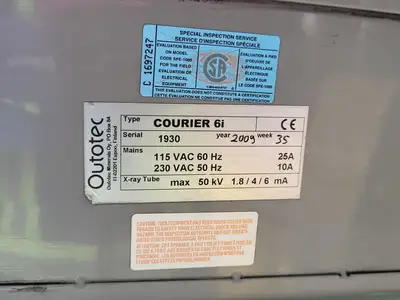

Main Electrical:
115 VAC, 60 Hz, 25 A, 1-ph
230 VAC, 50 Hz, 10 A, 1-ph
X-Ray Tube: Max. 50 kV, 1.8/4/6 mA
Element Range: Calcium to Uranium (Atomic numbers 20 to 92)
Number of simultaneous assays:
The Courier 6i analyzer probe can have up to 6 parallel measurement channels, based on either fixed spectrometers (WDXRF) or energy dispersive detectors (EDXRF).
The number of simultaneous assays is dependent on the application; in practice one can measure simultaneously 1-12 element concentrations and the solids content of the slurry.
Count Rate: There are up to 30,000 counts per second for each WDXRF channel
Concentration Range: 0.002 to 100% by weight for slurries
Detection Limit:
The detection limit for most elements is 3-30 ppm in slurries.
For Chrome and lighter elements, elements from Cadmium to Promethium and with ED channels, the detection limit is higher.
