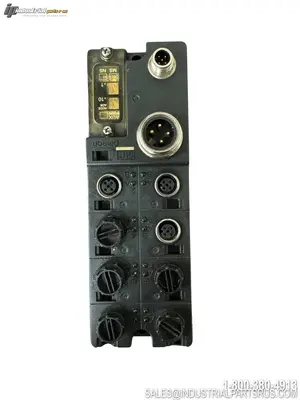

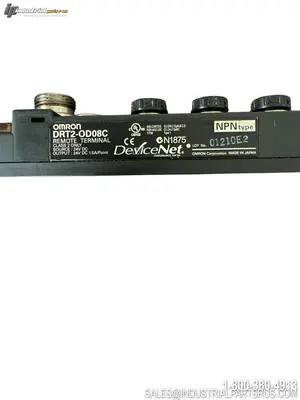

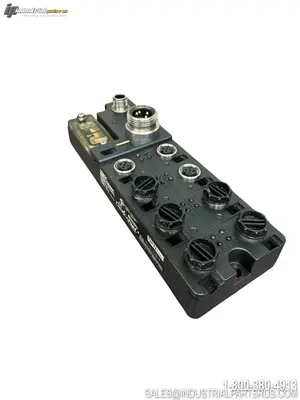

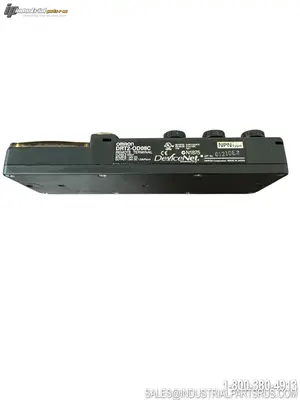

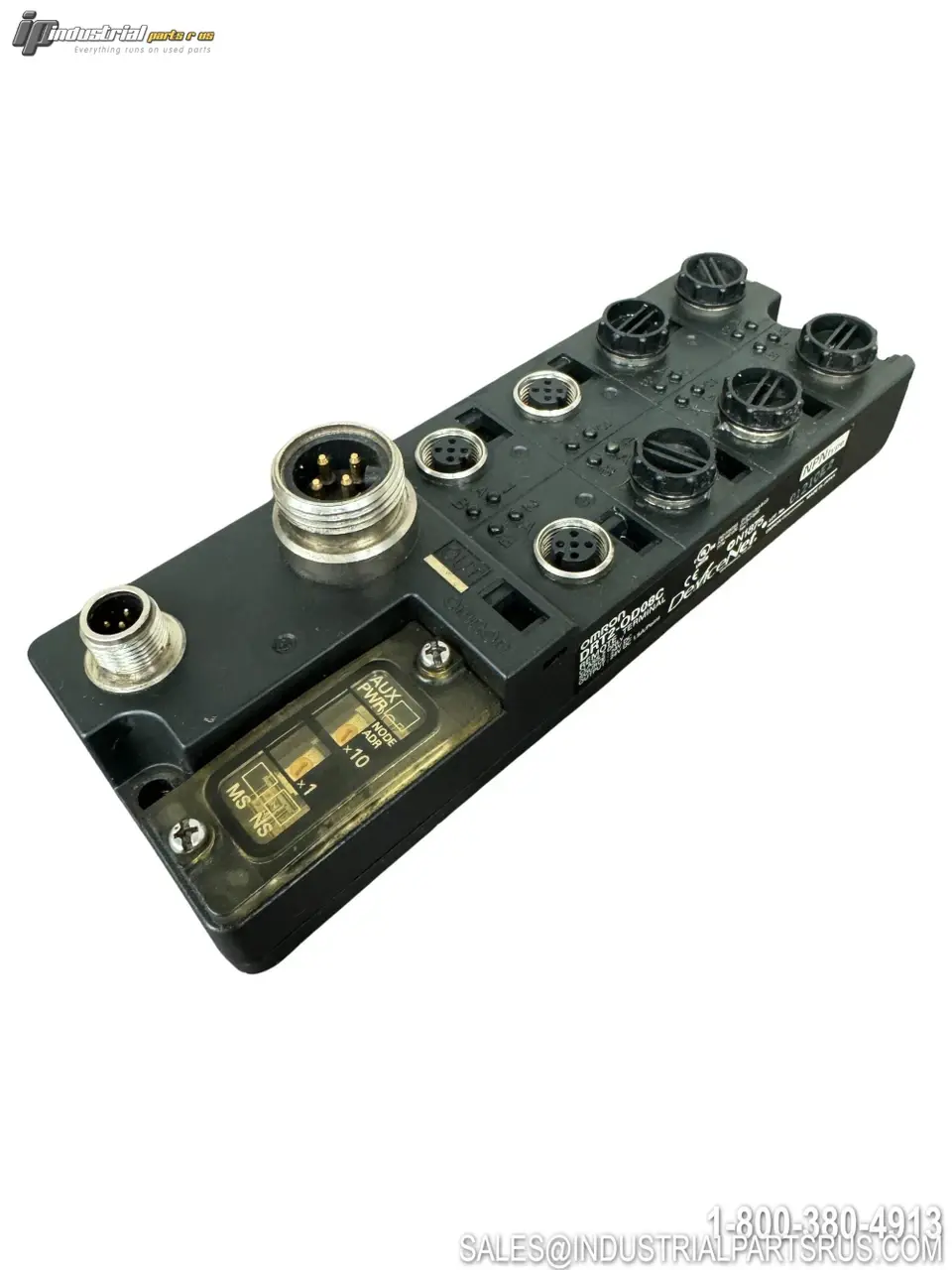

USED OMRON DRT2-OD08C

The Omron DRT2-OD08C is an environment-resistive DeviceNet Smart Slave remote I/O terminal featuring 8 NPN (sinking) transistor output points. Designed for harsh industrial environments, it carries an IP67 ingress protection rating, making it waterproof, oil-proof, and spatter-proof. As part of the DRT2 series, it provides advanced Smart Slave diagnostic functions including short-circuit detection and output monitoring, supporting preventive maintenance via the DeviceNet network.
Specification
Value
Brand
Omron
Model / Part Number
DRT2-OD08C
Product Name
Environment-Resistive Terminal with 8 Transistor Outputs
Series
DRT2
Communication Standard
DeviceNet
Device Type
Smart Slave
I/O Classification
Digital Output
Output Points
8 points (uses one word in the Master)
Output Type (Internal I/O Common)
NPN (sinking, − common)
Rated Output Current
1.5 A/point, 8.0 A/common
I/O Power Supply Voltage
20.4 to 26.4 VDC (24 VDC nominal, −15% to +10%)
Internal Circuit Power Supply
Supplied from DeviceNet communications connector
I/O Connections
M12 sensor/actuator connectors (8 output connectors)
Communications Connector
DeviceNet communications connector
Enclosure / Protection Rating
IP67 (waterproof, oil-proof, spatter-proof)
Operating Temperature
−10 to 55°C
Dimensions (W × H × D)
175 × 60 × 37.7 mm (approx.)
Mounting Type
Panel / surface mount (M5 screws)
Node Address Setting
Rotary switches (0–63)
Indicators
MS (Module Status) and NS (Network Status) LED indicators; I/O status indicators
Diagnostic Functions
Short-circuit detection, output monitoring, Smart Slave preventive maintenance
Manual / Catalog No.
W404 (DRT2 Series DeviceNet Slaves Operation Manual)
We warranty all items for 30 days from date of purchase.
