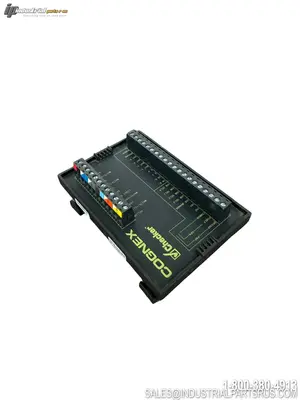

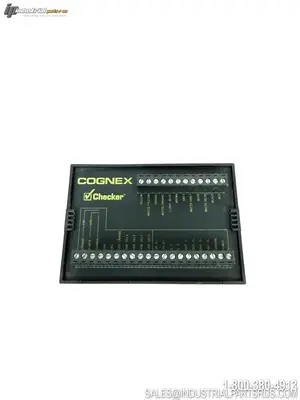

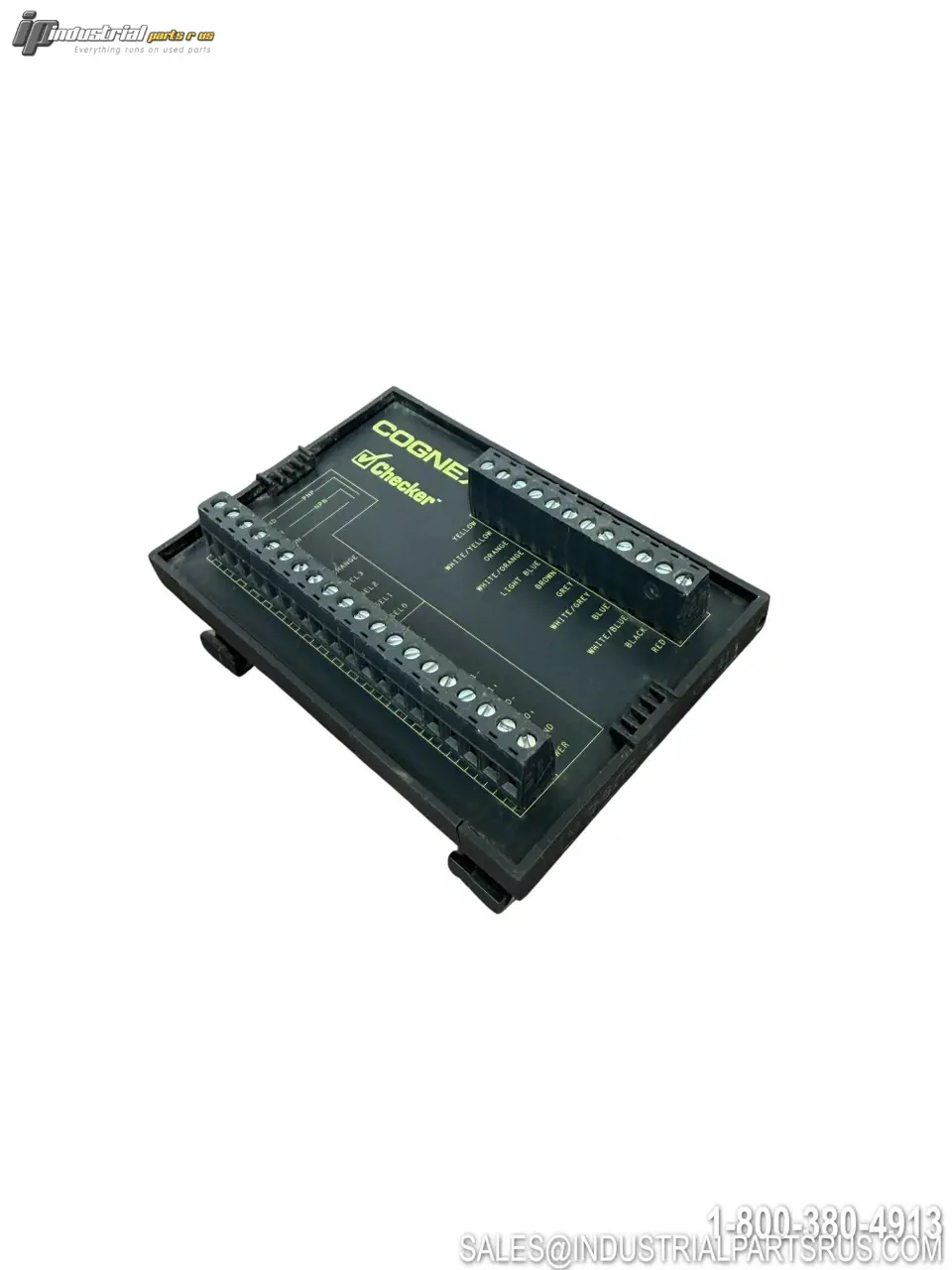

USED COGNEX 800-5888-2

The Cognex 800-5888-2 (also designated CKR-IOBOX-101) is the optional I/O and Job Change Module for the Cognex Checker 101 vision sensor system, designed to mount on standard DIN rail inside a control panel. This module allows operators to switch between saved Checker jobs and retrain Checker sensors while the system is running, and provides a terminal block for connecting external devices to the standard Checker I/O lines. The 800-5888-2 is a discontinued Cognex product and is compatible with 24 VDC logic-level systems.
Specification
Value
Brand
Cognex
Model / Part Number
800-5888-2
Alternate Catalog Number
CKR-IOBOX-101
Product Type
Checker I/O DIN Rail Mount Module
Compatible Platform
Cognex Checker 101 Vision Sensor
Mounting Type
DIN Rail Mount
Supply Voltage
24 VDC
Logic Type
VDC Logic
Interface / Connection
Terminal Block (standard Checker I/O lines)
Functions
Job Change, Sensor Retrain, I/O Breakout
RoHS Compliance
Yes (RoHS)
Product Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
