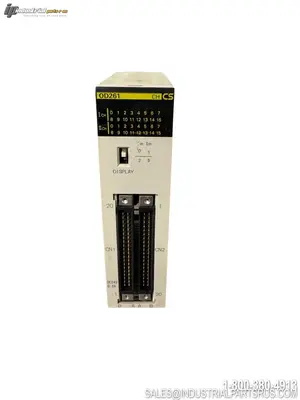

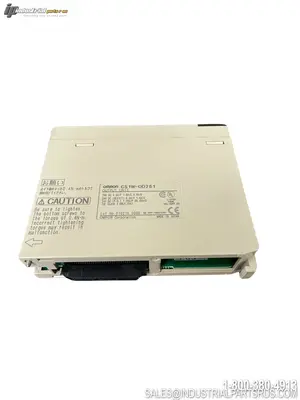

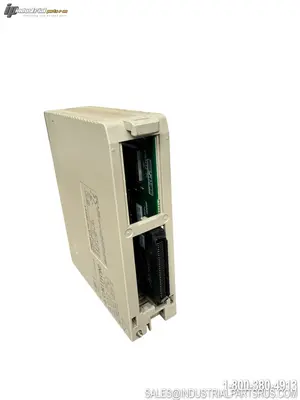

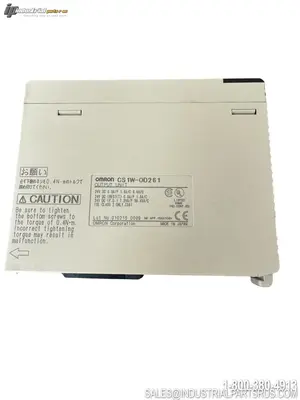

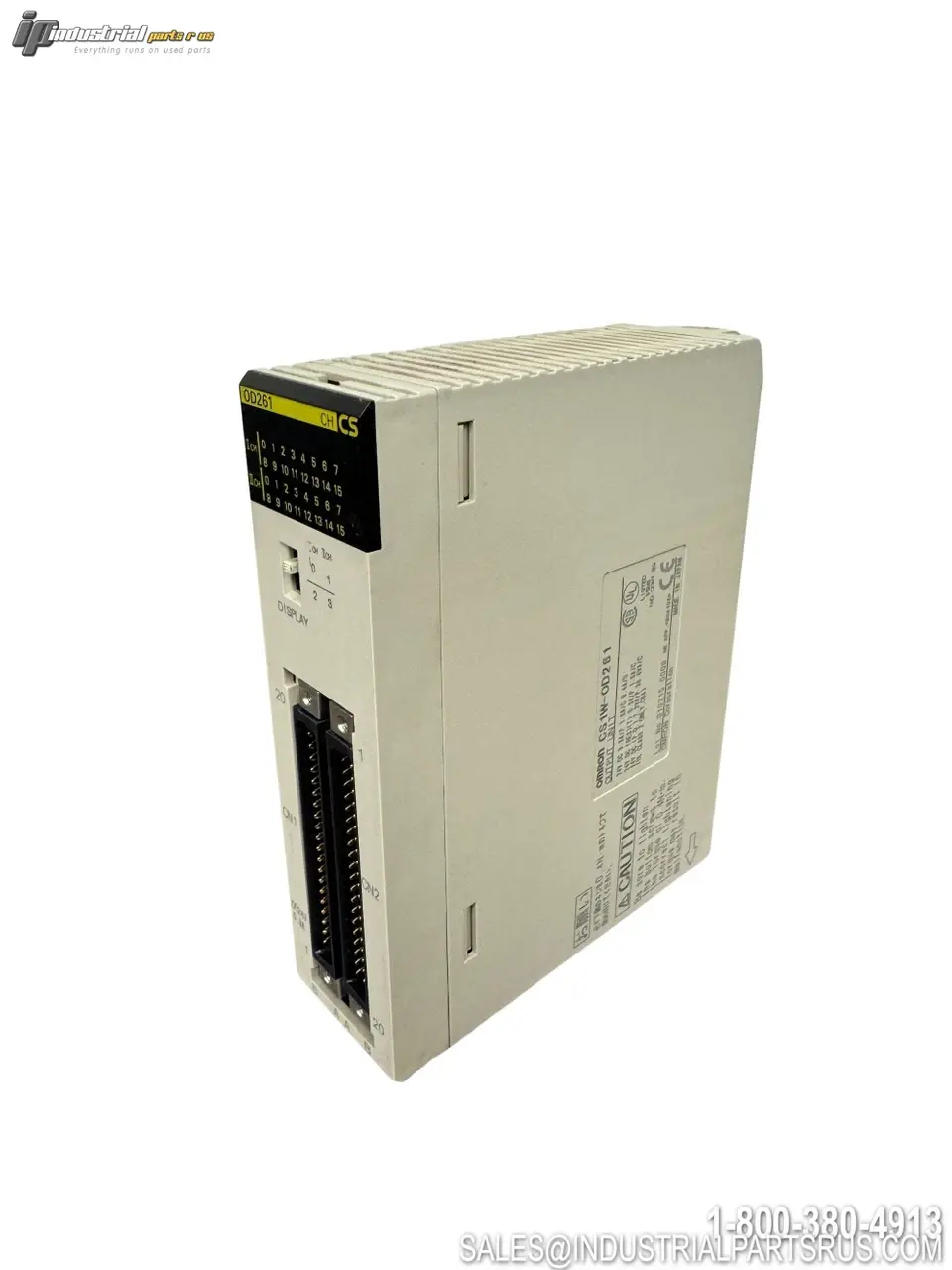

USED OMRON CS1W-OD261

The Omron CS1W-OD261 is a high-density digital output module designed for use with Omron's SYSMAC CS1 series programmable logic controllers. It provides 64 NPN (sinking) transistor outputs operating at 12 to 24 VDC with a maximum output current of 0.3 A per point and 6.4 A per unit, making it suitable for driving actuators, relays, solenoids, and other industrial loads. The module connects via a Fujitsu connector, mounts on the CS1 CPU or expansion rack backplane, and features isolated outputs for improved noise immunity and system safety.
Specification
Value
Brand
Omron
Model / Part Number
CS1W-OD261
Product Type
PLC I/O Module – Transistor Output Unit
Series / Family
SYSMAC CS1
Output Points
64
Output Type
NPN (Sinking) Transistor
Output Voltage
12 to 24 VDC
Max Output Current per Point
0.3 A
Max Output Current per Unit
6.4 A
Points per Common
16 points / 1 common
ON Response Time
0.5 ms max
OFF Response Time
1.0 ms max
Words Allocated
4 Words
Internal Current Consumption (5V)
390 mA (0.39 A)
Connector Type
Fujitsu Connector
Mounting Mode
Backplane / Rack (DIN Rail)
Enclosure Rating
IP20
Compatible Racks
CS1W-BC (CPU Rack), CS1W-BI (CS1 Expansion Rack), CS1 Long Distance Expansion Rack
Incompatible Racks
C200HX/HG/HE Expansion I/O Rack, SYSMAC BUS Slave Rack
Output Isolation
Isolated (output-to-output and output-to-PLC)
Standards / Certifications
cULus (Class I Div 2), NK Lloyd, EC Directives (CE)
Compatible PLC Platform
Omron SYSMAC CS1 Series
We warranty all items for 30 days from date of purchase.
