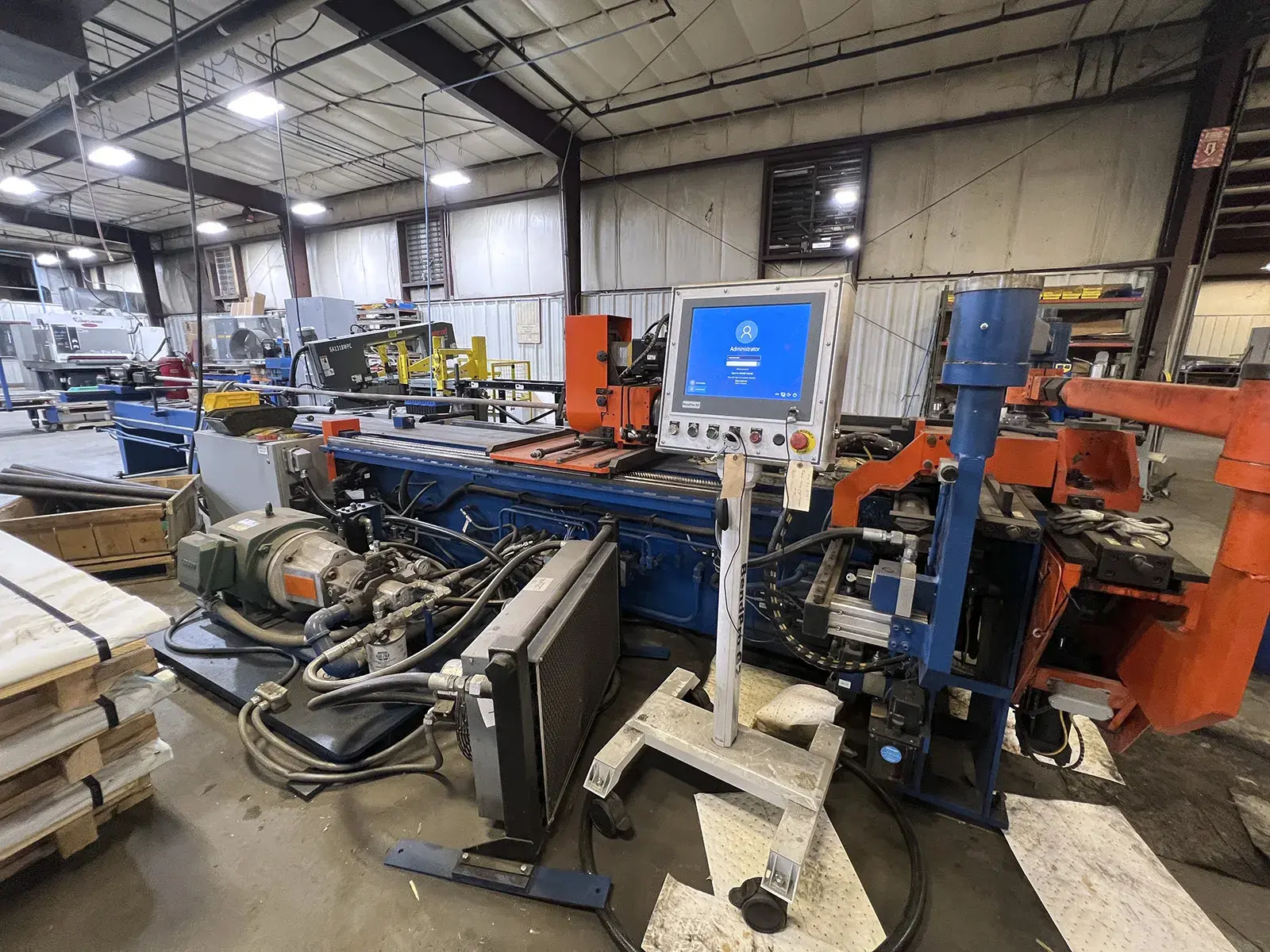

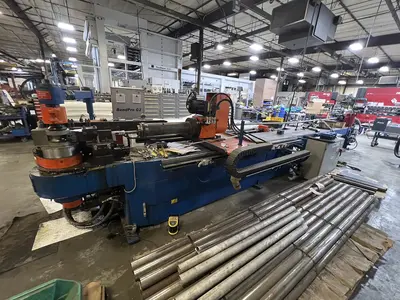

USED 2017 PINES CNC‑100 LH DUAL SPINDLE CNC TUBE BENDER
Overview
Pines CNC-100 LH Dual Spindle CNC Tube Bender (2017) is a heavy-duty production machine built for fast, precise bending of complex tubing. Ideal for automotive exhausts, aerospace hydraulic lines, HVAC coils, furniture frames, and heavy machinery components, it delivers consistent multi-directional bends for demanding tube fabrication applications.
Specs
BendPro G2 Control System
Dual Spindle Drive System
Servo Bend Spindle (C‑axis)
Servo feed Spindle (Y‑axis)
10 ft Bed Extension
Swing Away Wiper Die
Overhead Tie Bar
Mandrel Extractor
Bend Die Align
Pressure Die Assist
Hydraulic Power Unit (HPU): 100 Gallon 2000 PSI
40 HP Main Drive Motor
Maximum Tube OD: 4"
Maximum Bend Angle: 195°
Bed Length: 308"
Maximum Tube Length Over Mandrel: 256"
Mandrel Length: 258.5"
Steel Tubing Capacity: 4" × .109" wall
Stainless Steel Capacity: 4" × .065" wall
Non Ferrous Tubing Capacity: 4" × .188" wall
Equipped With
BendPro G2 Control System
Dual Spindle Drive System
Servo Bend Spindle (C‑axis)
Servo feed Spindle (Y‑axis)
10 ft Bed Extension
Swing Away Wiper Die
Overhead Tie Bar
Mandrel Extractor
Bend Die Align
Pressure Die Assist
Hydraulic Power Unit (HPU): 100 Gallon 2000 PSI
40 HP Main Drive Motor
