USED 1980 Hardinge HLV-EM, Inch/Metric, Vari-Speed,

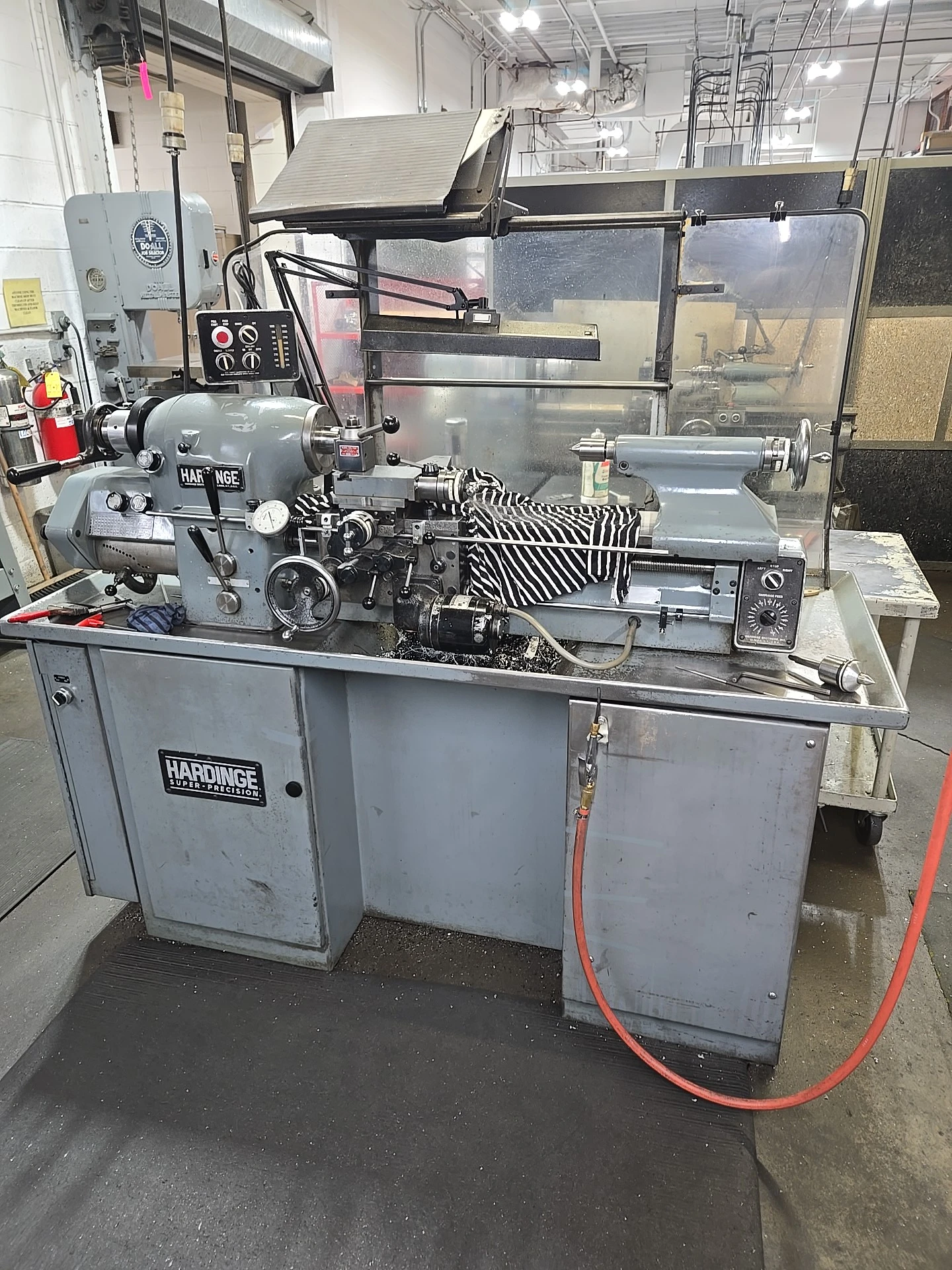

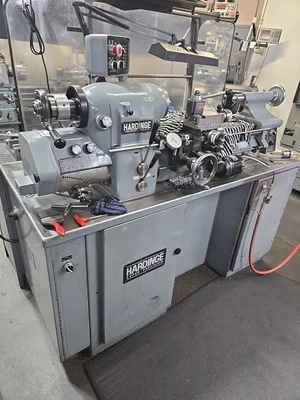

HARDINGE SUPER PRECISION TOOL ROOM LATHE

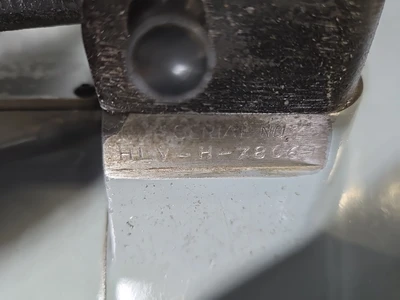

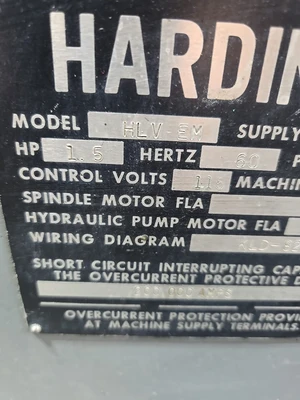

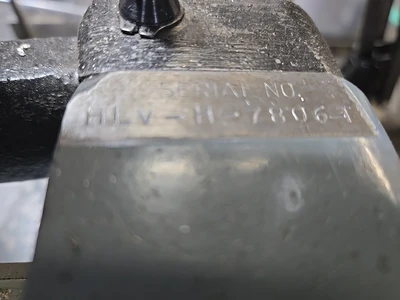

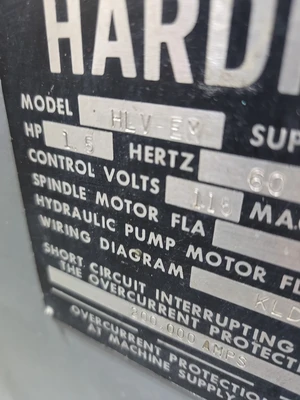

MODEL HLV-EM, S/N: HLV-H-7806-T, NEW 1980

SPECIFICATIONS:

SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING

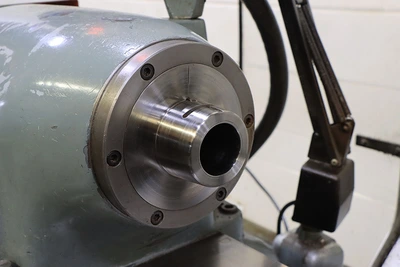

SPINDLE NOSE ......................... HARDINGE TAPERED

SPINDLE CAPACITY:

    WITH ROUND TYPE 5C COLLETS ....... 1-1/16"

WITH STEP CHUCKS ..................... 1-1/16" TO 6"

WITH JAW CHUCKS ...................... 5"

WITH EXPANDING COLLETS ............... 3"

VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.

HOLE THROUGH SPINDLE ................. 1-1/4"

SWING OVER BED ....................... 11"

SWING OVER CARRIAGE .................. 9"

SWING OVER CROSS SLIDE ............... 6"

DISTANCE BETWEEN CENTERS ............. 18"

COMPOUND SLIDE TRAVEL ................ 3"

CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.

CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.

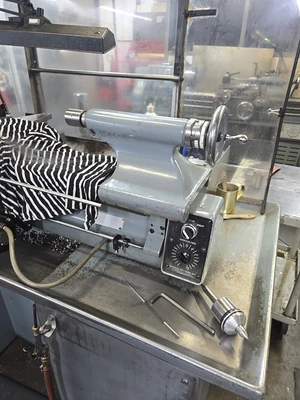

TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"

TAILSTOCK SPINDLE TAPER .............. #2 MT

INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.

METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM

APPROXIMATE WEIGHT ................... 1,700 LBS.

EQUIPPED WITH:

- DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING

- DUAL READING INCH/METRIC DIAL FOR COMPOUND AND TAILSTOCK

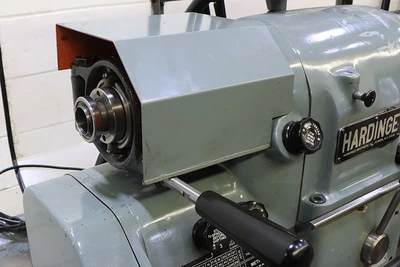

- HARDINGE BALL BEARING QUICK ACTING 5C COLLET CLOSER

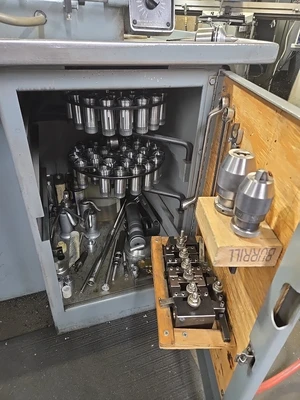

- ASSORTMENT OF 5C COLLETS

- 5" 3-JAW BUCK CHUCK

- ALORIS MODEL: AXA QUICK CHANGE TOOLPOST WITH HOLDERS

- ALBRECHT DRILL CHUCK FOR TAILSTOCK

- TWO LIVE CENTER FOR TAILSTOCK

- SELF-CONTAINED COOLANT SYSTEM

- 0.5 - 1 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
