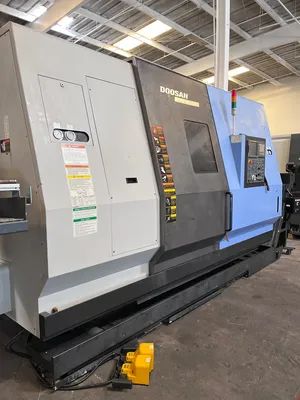

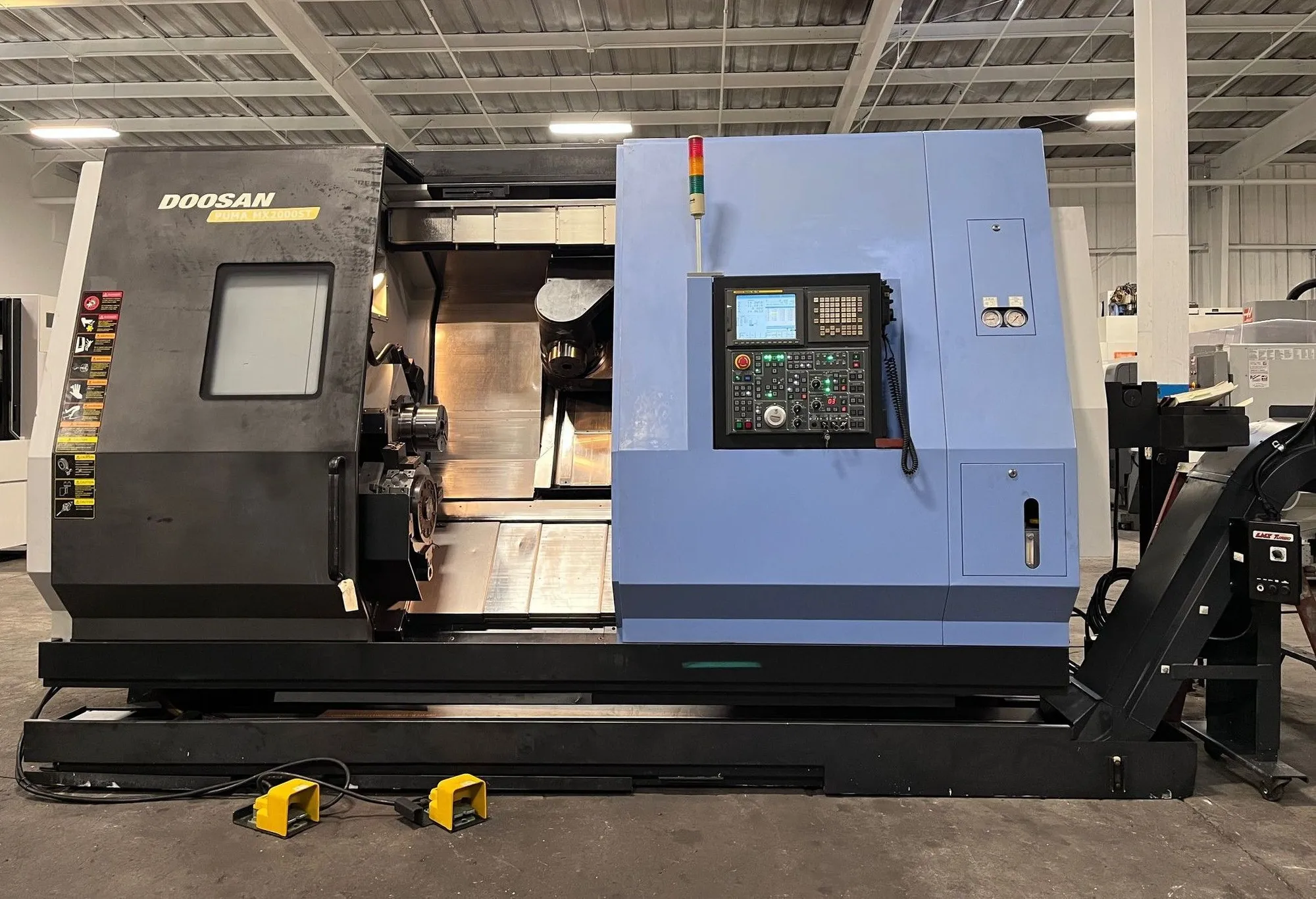

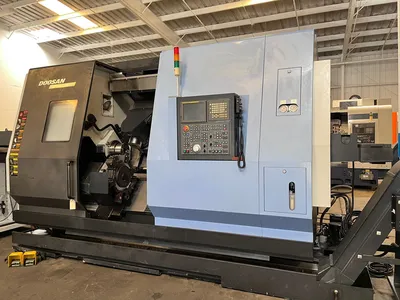

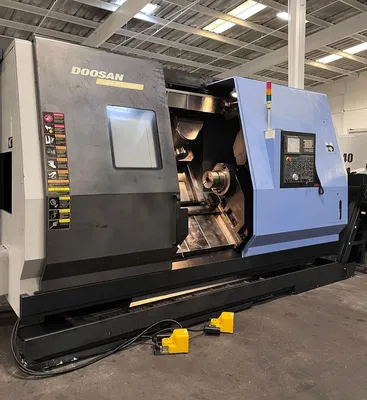

USED 2007 DOOSAN PUMA MX2000ST

Max Turning Diameter: 21.65″
Max Turning Length: 40.15″
Max Swing Over Bed: 29.5″
Max Swing over the Carriage: 23.6″
Max Bar Capacity: 2.55″

X1/X2 Axis Travel: 21.85″ / 7.28″
Z1/Z2 Axis Travel: 43.11″ / 44.88″
Y Axis Travel: 6.29″ (+/- 3.14″)
A Axis Travel: 40.15″ (Sub Spindle)
B Axis Travel: 240 Degree
C Axis: 360° (0.001°) Both Spindle

Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM
Rapid Traverse Y Axis: 630 IPM
Rapid Traverse A Axis: 945 IPM

Main Spindle Nose: A2-6
Main Spindle Bore: 2.99″
Main Spindle Bar Capacity: 2.55″
Main Spindle Speed: 5,000 RPM
Main Spindle Power: 30 HP
Sub Spindle Nose: A2-6
Sub Spindle Bore: 2.99″
Sub Spindle Bar Capacity: 2.55″
Sub Spindle Speed: 5,000 RPM
Sub Spindle Power: 30 HP

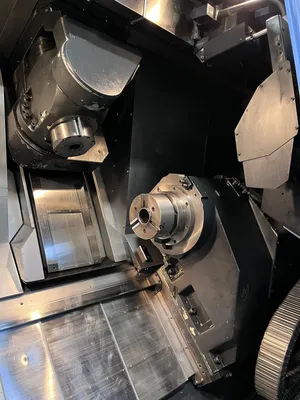

Milling Head:
Single Station Pendulum Head with 40 ATC
B Axis Indexing: 240(±120), 0.001 Degree
Tool Type: CAPTO C6
Spindle Speed: 10,000 RPM
Spindle Motor: 20 HP

Capacity: 40 Tools
Tool Type: CAPTO C6
Max Tool Diameter: 3.54″ - 4.72″
Max Tool Length: 11.81″
Max Tool Weight: 17.63 lbs
Tool Change Time: 1.5 Seconds

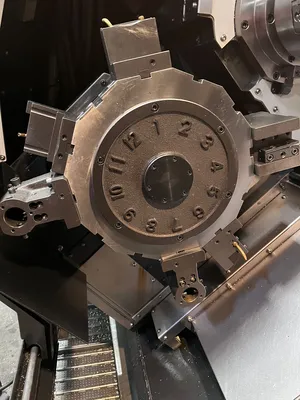

Turret Capacity: 12 Stations
OD Tool Size: 1″
Boring Bar Diameter: 1.57″
Turret Index Time: 0.2 Second
Live Tool Speed: 4,000 RPM
Live Tool Spindle Power: 7.5 HP
Tool Holders Type: BMT-65P

Power Source: 220v / 3-Phase / 60 Hz / 60.1 kva
Overall Dimensions: 178″ x 90.6″ x 102.4″ High
Weight: 27,558 lbs

Fanuc 18i-TB series CNC Control
Rigid Tapping on Both Spindles

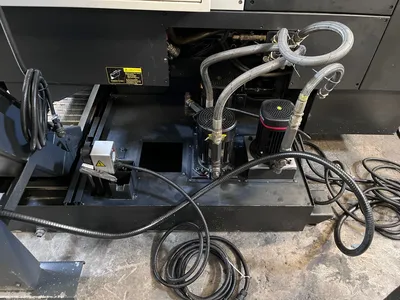

High Pressure Coolant System

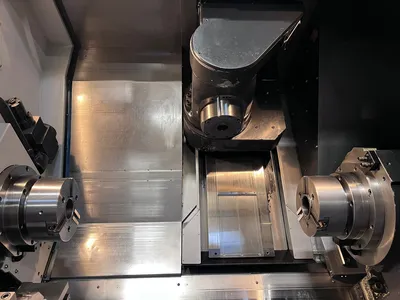

Sub Spindle

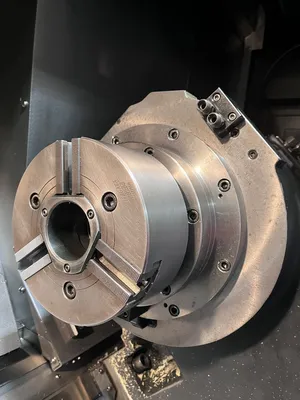

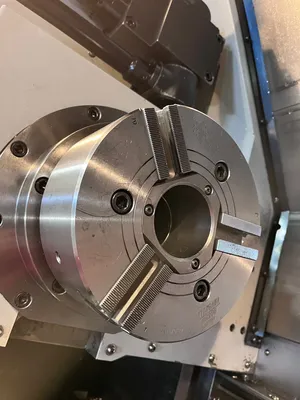

8" 3-Jaw BB-208 Kitagawa Big Bore Chucks on Main & Sub spindle
Servo Controlled Full C-Axis on Both Spindles
Y-Axis on Upper Turret (Milling Head)

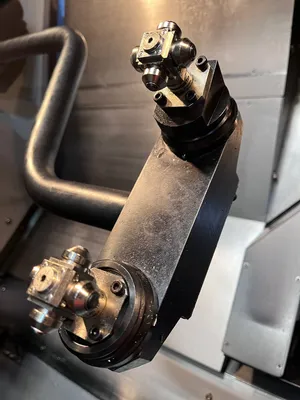

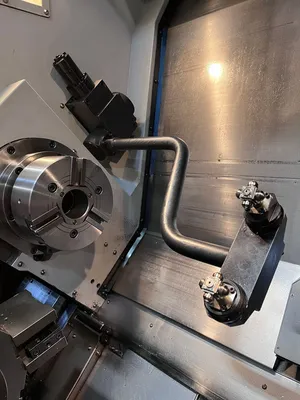

Tool Presetter
Chip Conveyor
Bar Feeder Interface
Books & Manuals

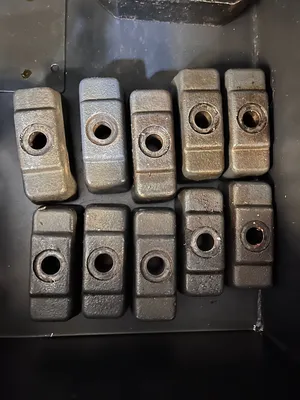

Levelling Pads
(4) Turning Tool Holders (2) Boring Tool Holders
