220 Ton Aida CF1-220 Straight Side Link Motion Cold Forging Single Point Press, 11.81" STR, 19.68" SH, 1.18" ADJ, 29.53" LR x 29.53" FB BA, 25-40 SPM Variable
| Tonnage | 220 T | 199.581 t |
| Stroke | 11.81" | 299.97 mm |
| Shut Height | 19.68" | 499.87 mm |
| Vari Speed (Yes/No) | Yes | Yes |
| Bed W | 29.53" | 750.06 mm |
| Bed L | 29.53" | 750.06 mm |
| Crank (Single/Double) | Single | Single |

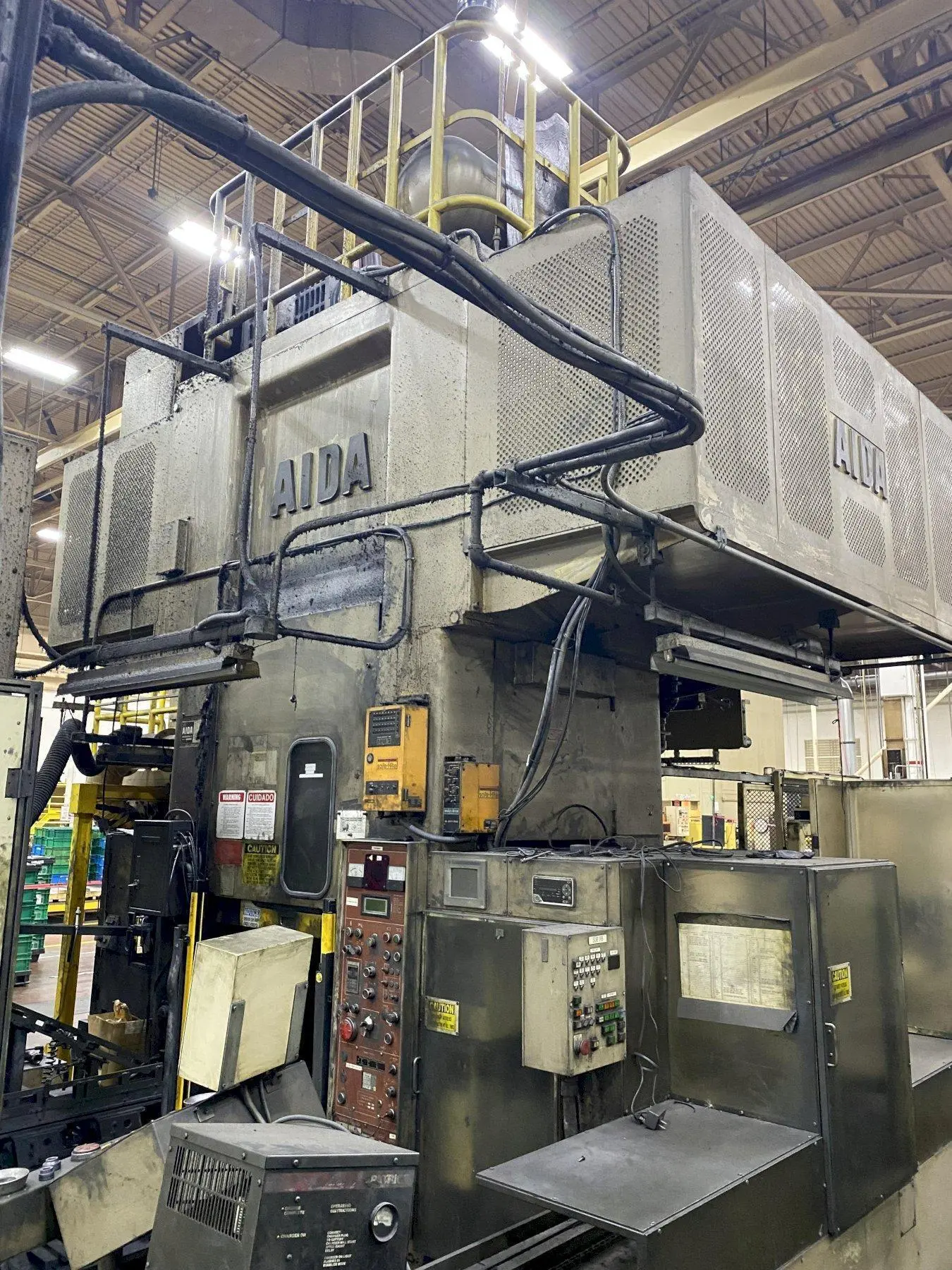

220 TON AIDA CF1-220 STRAIGHT SIDE LINK MOTION
COLD FORGING SINGLE POINT PRESS
S/N 11200-0035 YEAR: 2014
SPECIFICATIONS
Capacity.....................................220 Ton
Stroke.......................................11.81”
Die Height...................................19.68”
Slide Adjustment.............................1.18”
Bolster Area.................................29.53”LR x 29.53”FB
Slide Area...................................29.53”LR x 29.53”FB
Speed (Variable).............................25-40 SPM
EQUIPPED WITH
Allen Bradey panelview plus 700.
Press console controls.
Operator palm stand.
Specifications are deemed accurate, however, subject to verification or prior sale.
