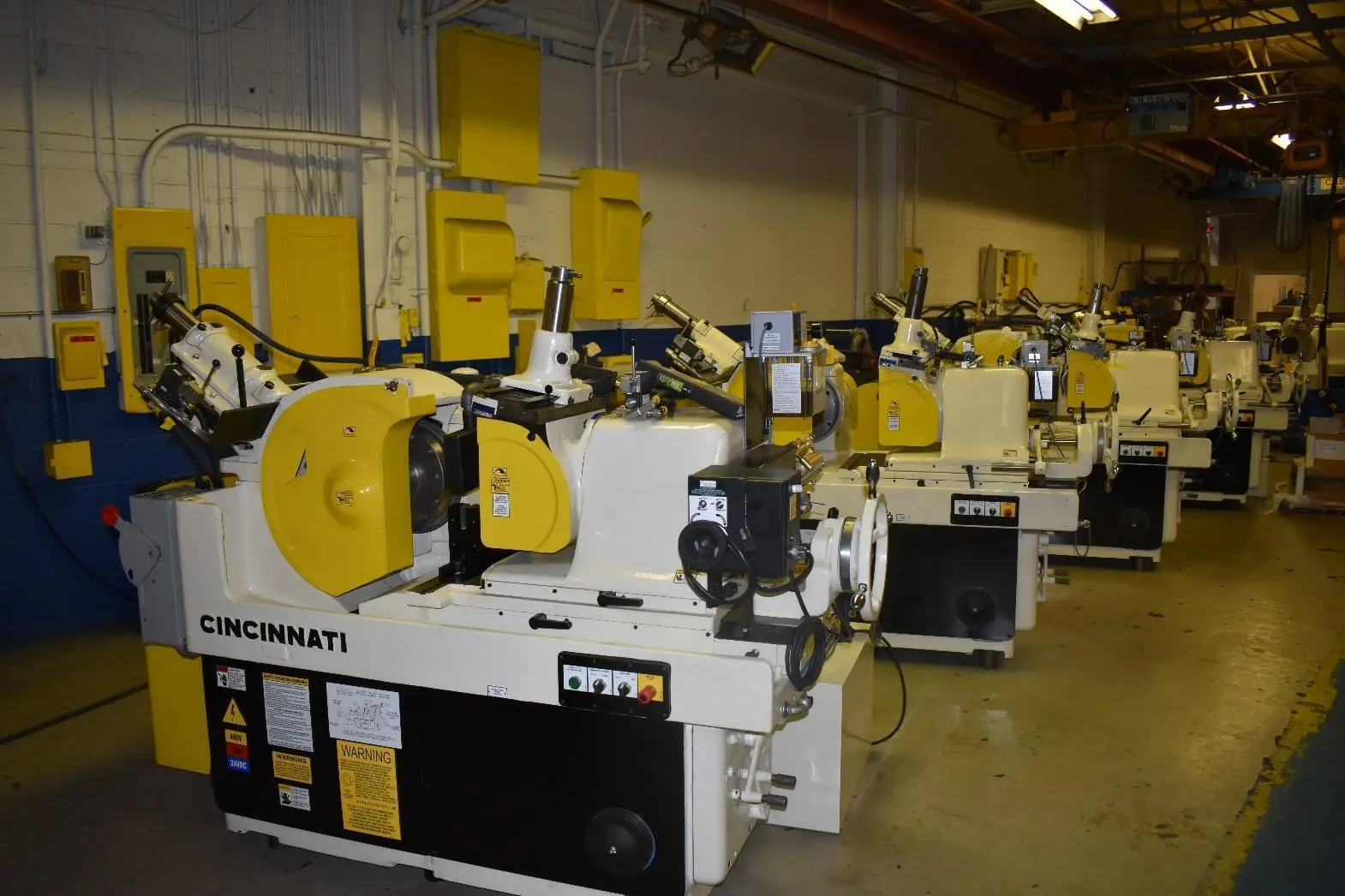

USED CINCINNATI #2 EA

Cincinnati #2EA Centerless Grinder, 20" Grinding Wheel, Standard Transmission, 8" Wide Wheel, 8" Thufeed Workrest

#2 "EA" CINCINNATI CENTERLESS GRINDERS

S/N 2M2H1L-1206 YEAR: 1942

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered
not included in price)
Standard work rest....................... 1/16" to 3 1/2" diameter
Low thru feed work rest.................. 2" to 4 3/4" diameter
Bar work......(18' Long)................. 1/8" to 2" diameter

GRINDING WHEEL (Not supplied)
4", 6", or 8" Width 12" Hole
20" Maximum diameter
14" Minimum diameter
Speed 1200 RPM

REGULATING WHEEL (Not supplied)
4", 6", or 8" Width 5" Hole
12" Maximum diameter
9" Minimum diameter
Range of speeds 12 to 300 RPM

MOTOR DRIVES
Grinding wheel........................... 15 HP
Regulating wheel......................... 1 1/2 HP
Hydraulic pump........................... 1 1/2 HP
Cutting fluid............................ 1/4 HP
Floor space.............................. 53" x 86"
Weight................................... 6,400 lbs.

EQUIPMENT & FEATURES
Filmatic bearings.
Profile truing on grinding wheel. (Manual Comp/Hyd. Traverse)
Profile truing on regulating wheel. (Manual Comp/Hyd. Traverse)
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
Coolant pump and tank.
Standard transmission.
Pull down handle.

Specifications are deemed accurate, however, subject to verification or prior sale.
