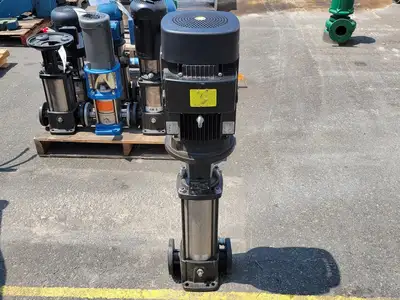

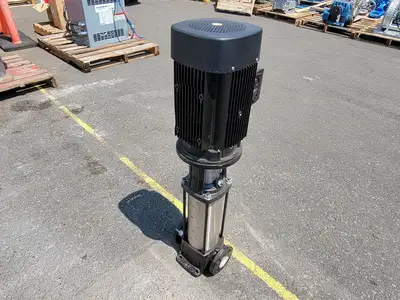

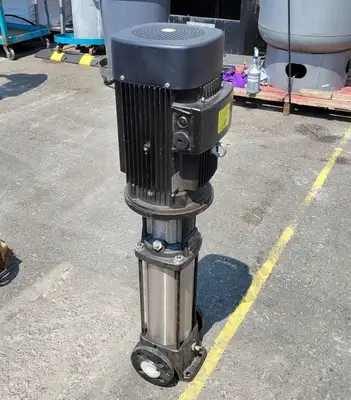

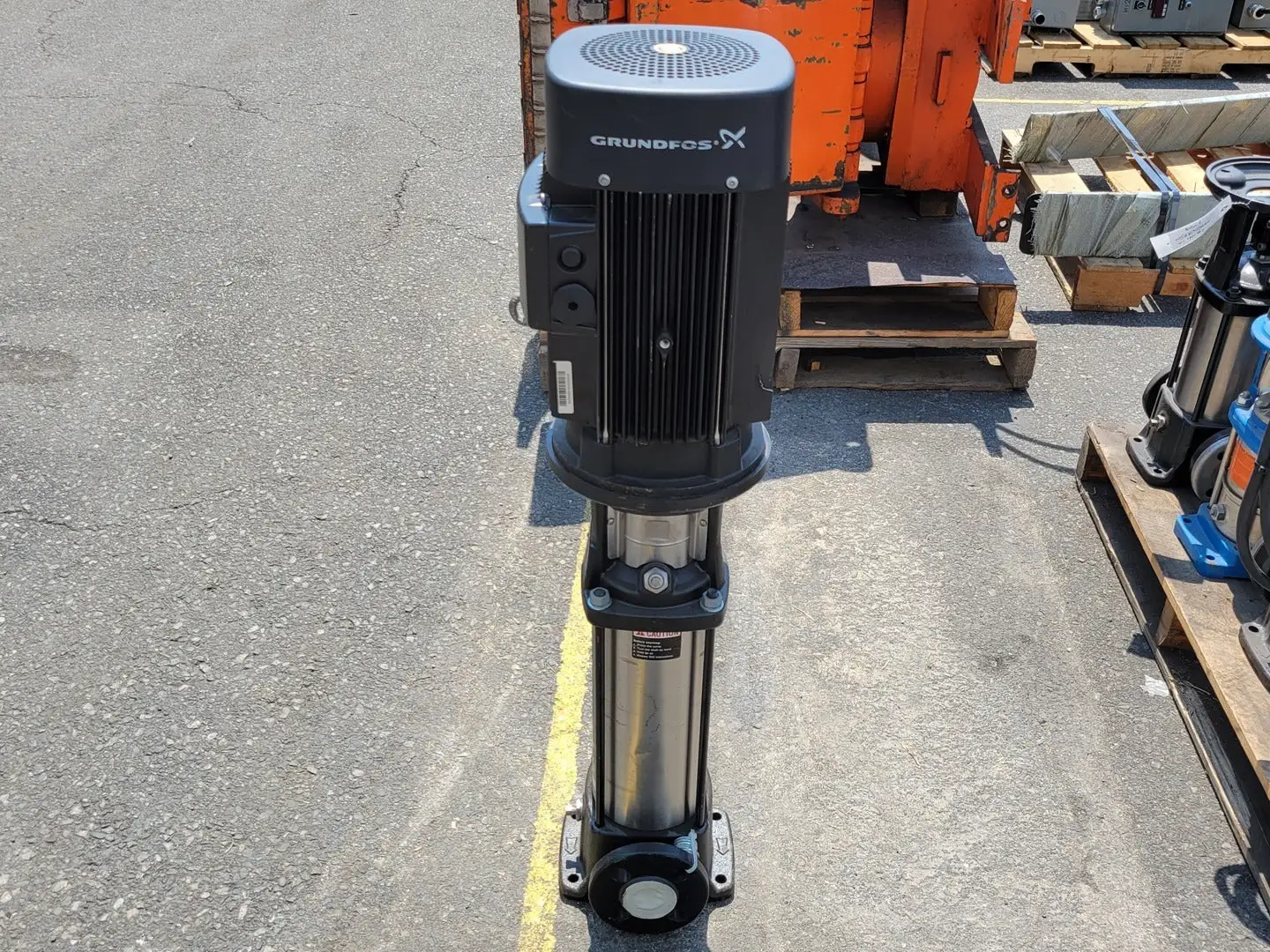

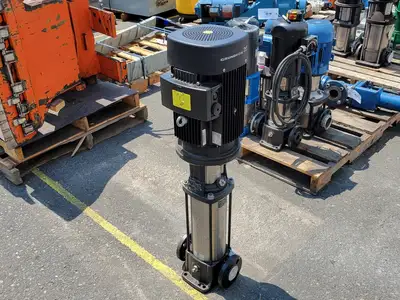

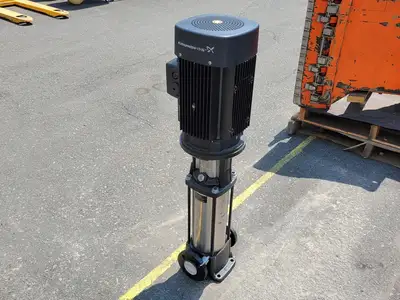

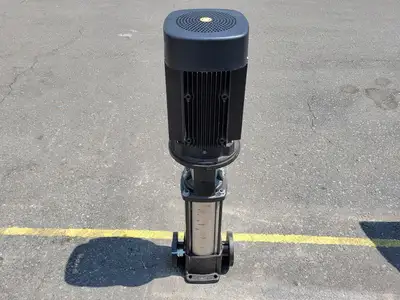

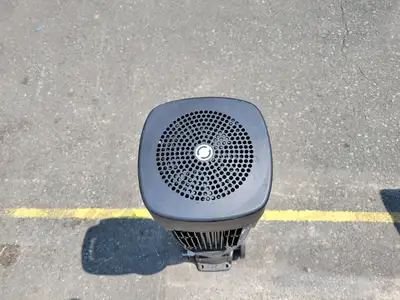

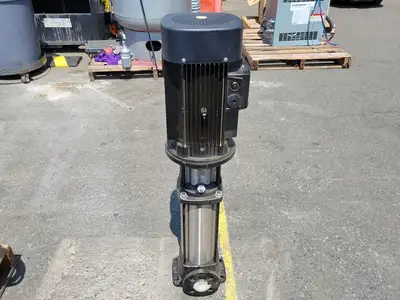

USED GRUNDFOS CR3-19 K-FGJ-A-E-HQQE

Horsepower: 5 hp
GPM: 15.4
Pump Material: Cast Iron
PSI: 363
Head: 455 ft
RPM: 3461 rpm
Voltage: 230/460 volts
Phase: 3-phase
Series: CR

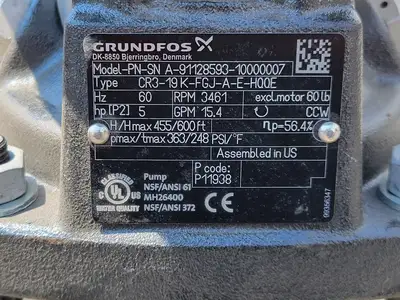

Model: CR3-19 K-FGJ-A-E-HQQE
Part Number: 91128593
Pump Code: P11938
Pump Type: Vertical Multistage Centrifugal
Motor Power: 5 HP (3.7 kW)
Motor Efficiency: IE3 Premium Efficiency
Frequency: 60 Hz
Voltage: 208-230/460 VAC, 3-Phase
Current: 14.1-13.1 / 7.29 A
Maximum Current: 16.2-15.0 / 8.40 A
Service Factor: 1.15
Motor Speed: 3525-3540 RPM
Pump Speed: 3461 RPM
Rated Flow: 15.4 GPM
Rated Head: 455 ft
Maximum Head: 600 ft
Maximum Pressure: 363 PSI
Maximum Temperature: 248°F

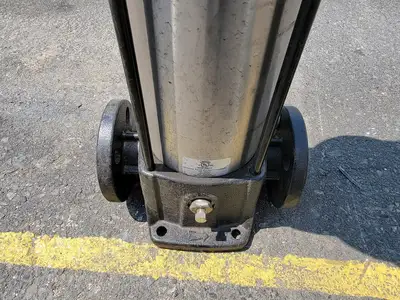

Connection Size: 1-1/4 in ANSI Flanged (Inlet & Outlet)
Rotation: Counter Clockwise (CCW)

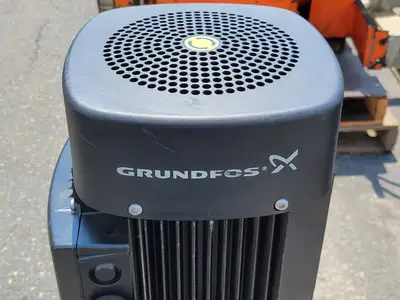

Motor Enclosure: TEFC
Protection: IP55
Insulation Class: F
Ambient Rating: 60°C Continuous Duty
Weight (Motor): 40 kg
Motor Frame: 182TC

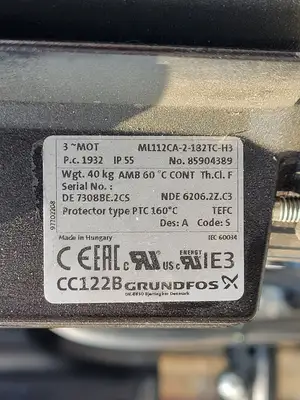

Bearings: DE 7308BE.2CS / NDE 6206.2Z.C3

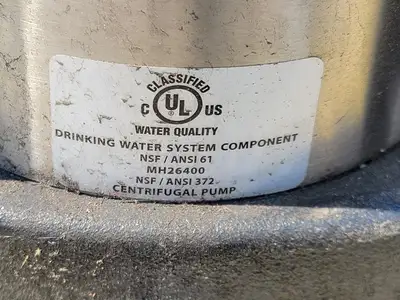

Certification: UL, CE, NSF/ANSI 61 & 372
Country of Assembly: USA
Motor Origin: Hungary
Ideal Applications
Pressure boosting systems
Commercial buildings
Municipal water systems
Reverse osmosis systems
Water treatment plants
Industrial process water
Boiler feed systems
Cooling water circulation
Irrigation systems
Potable water distribution
