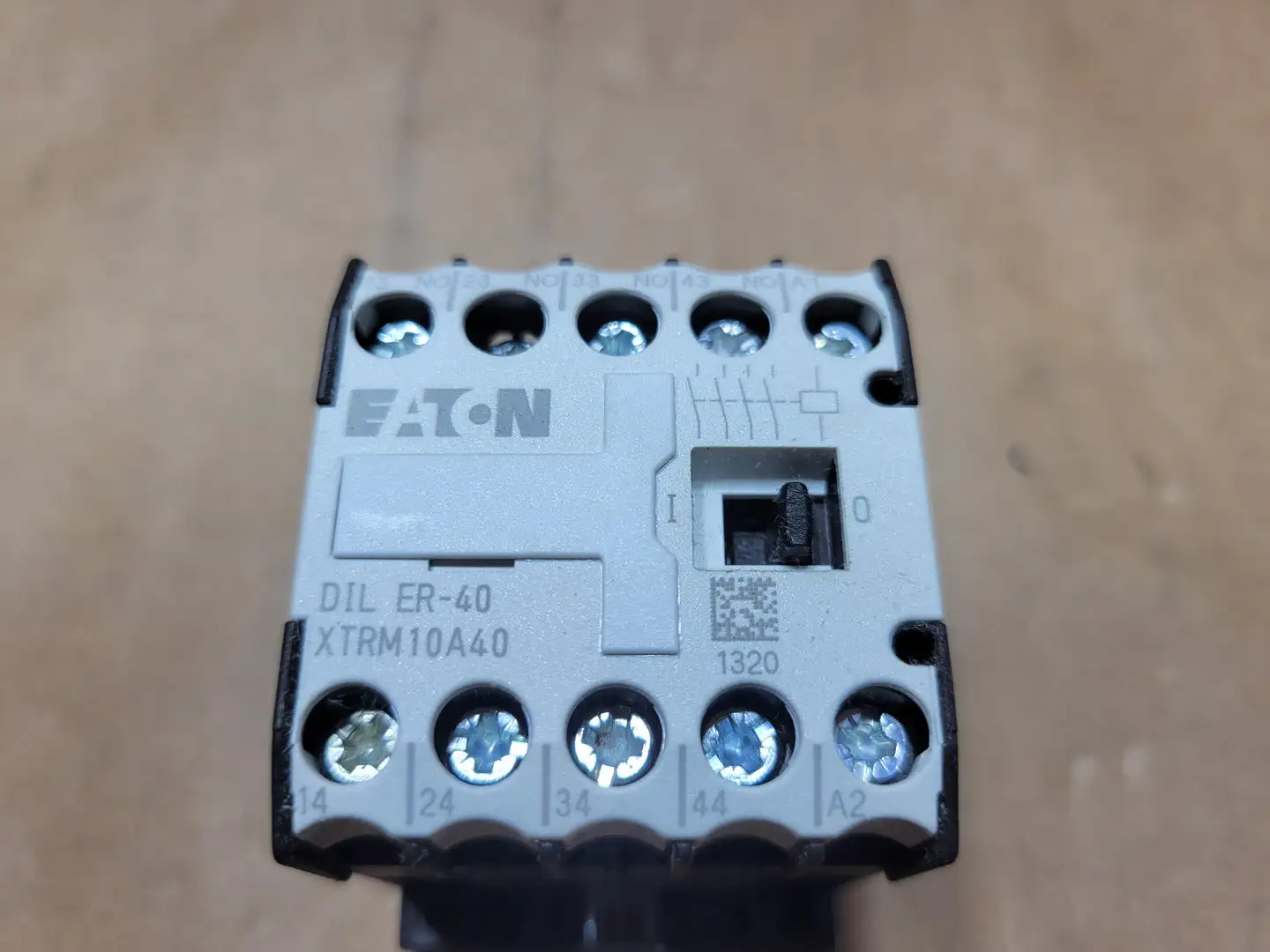

USED EATON DILER-40

Catalog Number: XTRM10A40D
Equipment Type: Mini Contactor / Control Relay
Contact Configuration: 4 Normally Open (4 NO)
Coil Operation: AC
Coil Voltage: 550V AC at 50 Hz / 600V AC at 60 Hz
Contact Terminal Markings: 13-14, 23-24, 33-34, 43-44
Coil Terminals: A1 / A2
AC-15 Rated Operational Current: 6 A at 220/230/240 V; 3 A at 380/400/440 V; 1.5 A at 500 V
Conventional Thermal Current (Ie shown on unit): 10 A
Maximum AC Rating: 600V AC, 10 A
Maximum DC Rating: 250V DC, 0.5 A
Impulse Withstand Voltage (Uimp): 6000 V
Terminal Wire Range: AWG 18-14
Terminal Tightening Torque: 1.2 Nm / 10.6 lb-in
Connection Type: Screw Terminal
Mounting: DIN rail / panel mounting typical of DILER series
