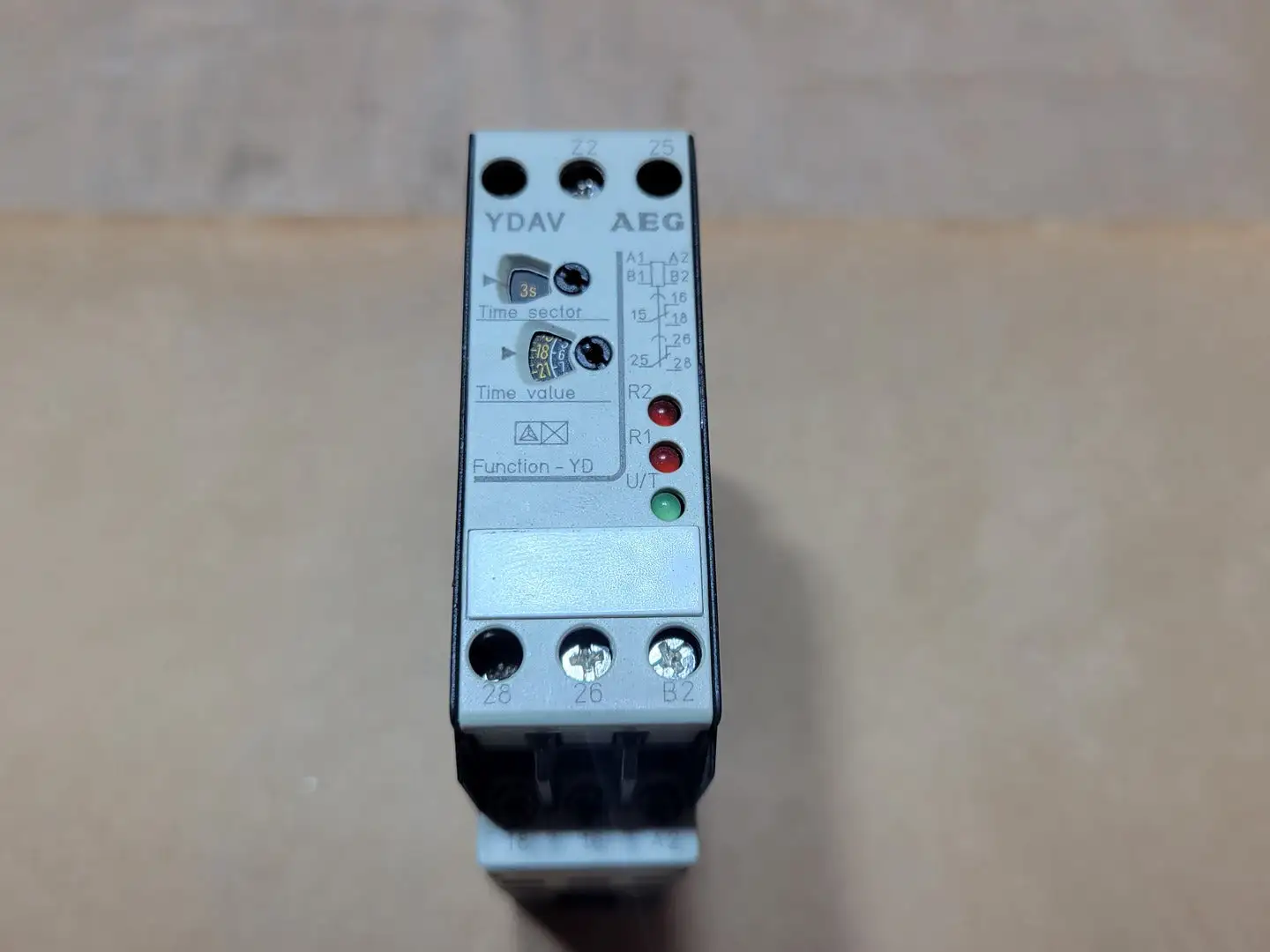

USED AEG 910-346-643-00

Model: YDAV
Part Number: 910-346-643-00
Relay Type: Star-delta timing relay
Primary Function: Timed star-to-delta motor-starter transition
Timing Operation: Twice-delayed ON operation
Adjustable Timing Range: 0.05 seconds to 300 hours
Selectable Ranges: Ten ranges in one unit
Star-to-Delta Transition Time: Fixed at approximately 50 ms, based on published documentation
Output Configuration: Two SPDT / changeover contacts
Output Terminals: 15-16-18 and 25-26-28
Supply at A1-A2: 110-240 VAC, 50/60 Hz
Supply at B1-A2: 24 VAC/DC
Supply at B2-A2: 42-48 VAC/DC
Maximum Switching Voltage: 250 V
Maximum Switching Current: 4 A
AC-15 Rating Marked: 1.5 A at 220 VAC
Status Indicators: R1, R2 and U/T
Green U/T Indicator: Supply/timing status
Red R1 and R2 Indicators: Output-relay status
Adjustment: Front time-range selector and time-value dial
Installation Position: Any, based on published documentation
Mounting: 35 mm DIN rail
