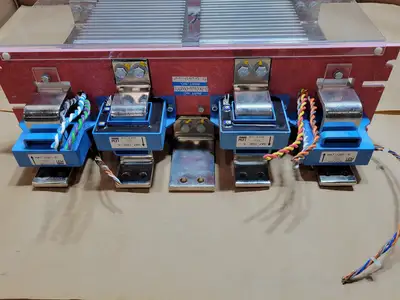

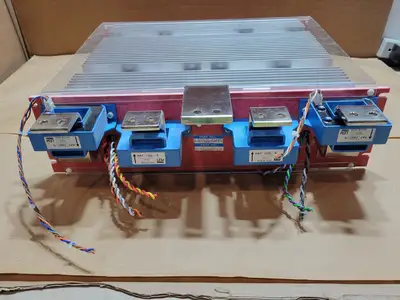

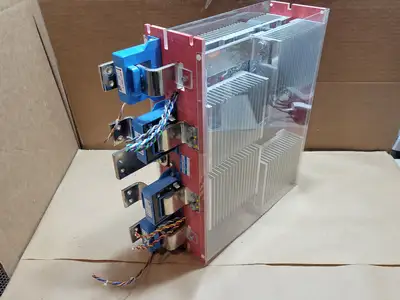

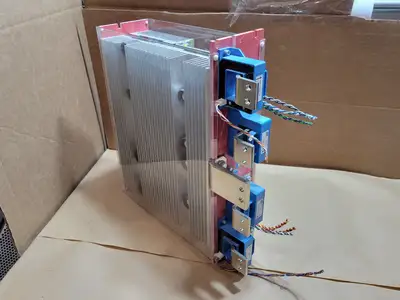

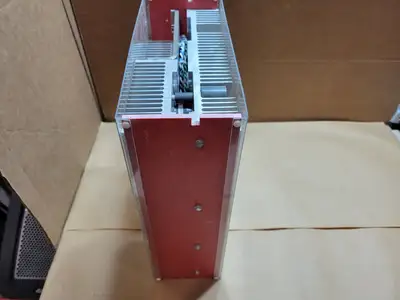

USED LEM HAT 1000-S

Current Transducers: LEM
Model: HAT 1000-S
Quantity: 4 transducers

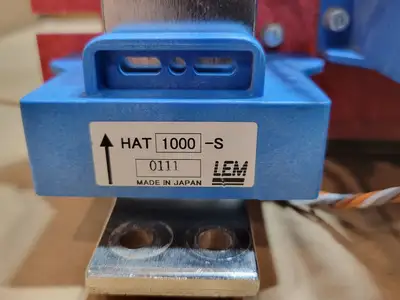

Sensor Marking: 0111
Country Marking: Made in Japan
Sensor Type: Open-loop Hall-effect current transducer
Primary Nominal Current: 1000 A RMS
Primary Measuring Range: +/- 2500 A
Measured Current Types: AC, DC and pulsed
Output: Analog voltage
Nominal Output: +/- 4 V at nominal primary current
Supply Voltage: +/- 15 VDC
Accuracy: Approximately +/- 1%
Frequency/Bandwidth: DC to approximately 25 kHz
Current Transducer Mounting: Panel/chassis mounted
Sensor Aperture: Approximately 40.5 x 30.5 mm for the standard HAT 1000-S.

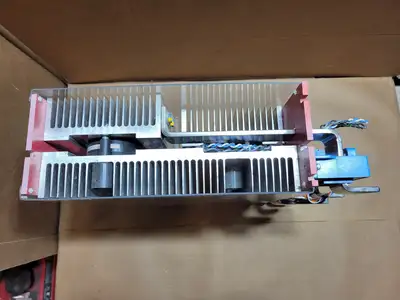

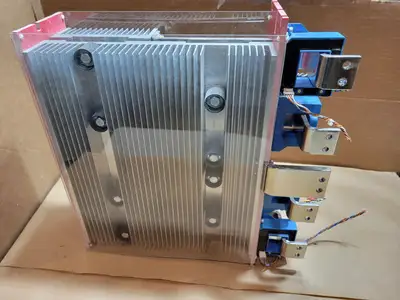

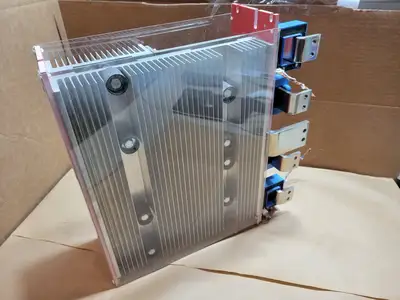

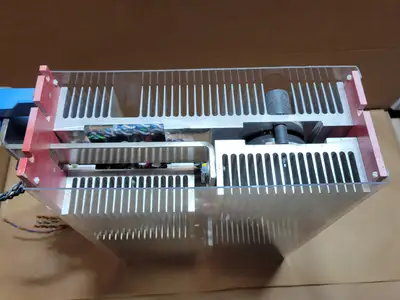

Heat Sinks: Multiple large finned aluminum heat sinks
High-Current Conductors: Heavy flat metal bus conductors

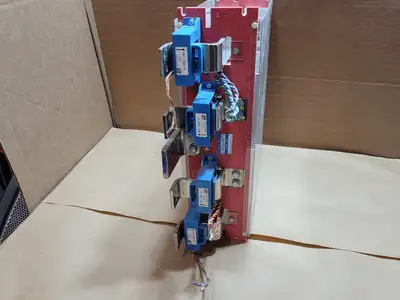

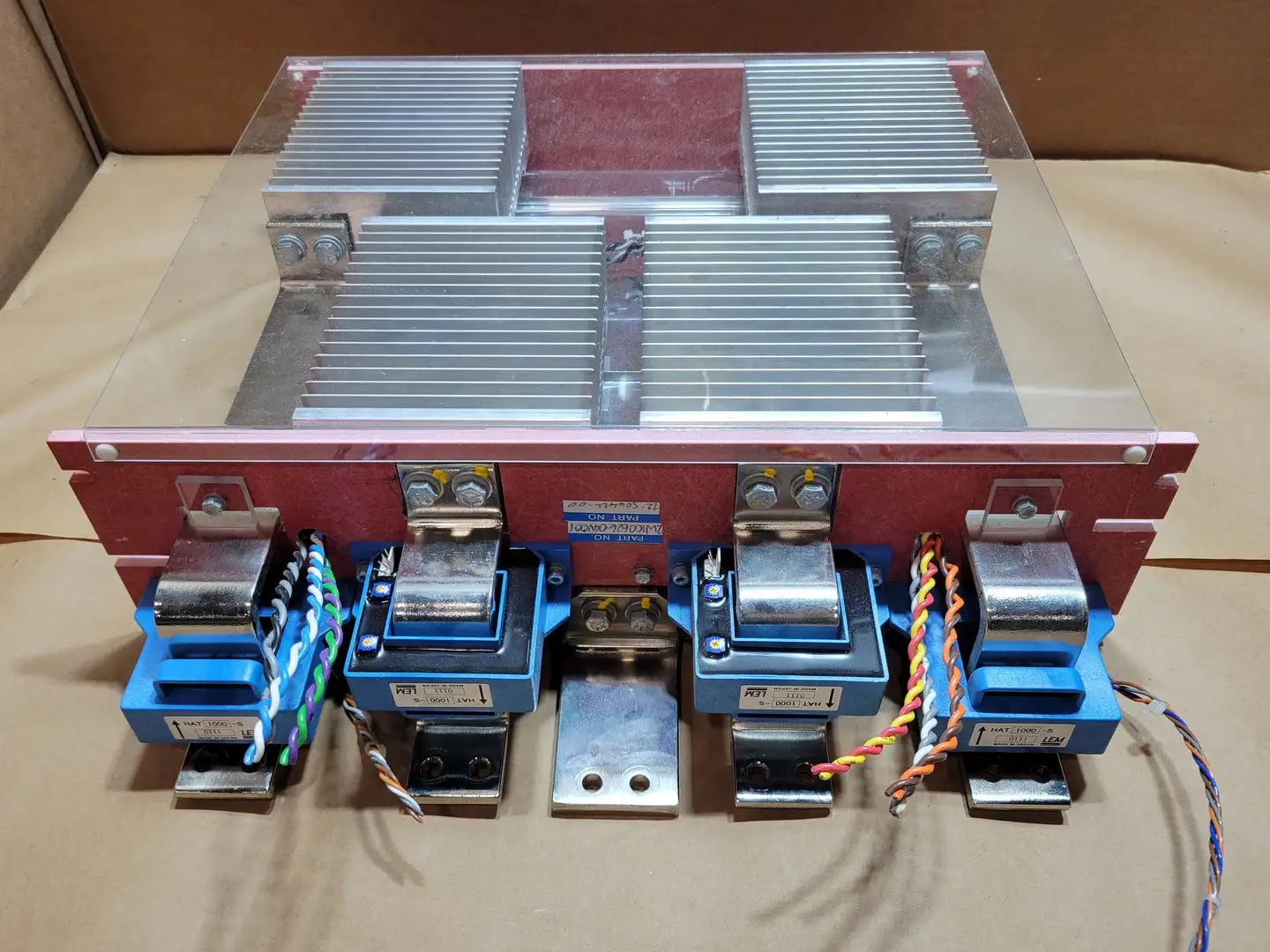

Current Measurement Channels: 4 visible LEM transducers
Low-Voltage Wiring: Multiple twisted-pair leads

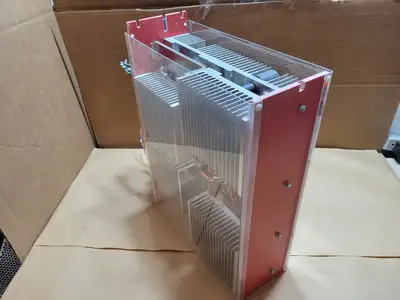

Insulating Structure: Red rigid electrical-grade panel material

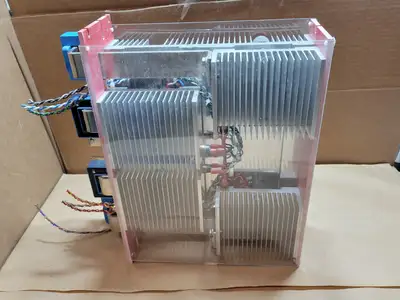

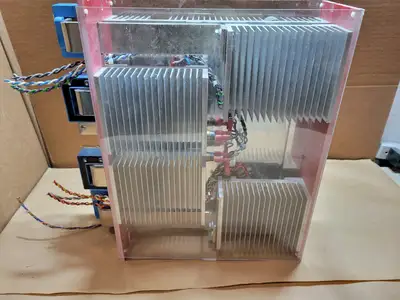

Protective Cover: Clear rigid plastic/acrylic-style enclosure
Mounting Hardware: Heavy metal brackets and bolted connections
