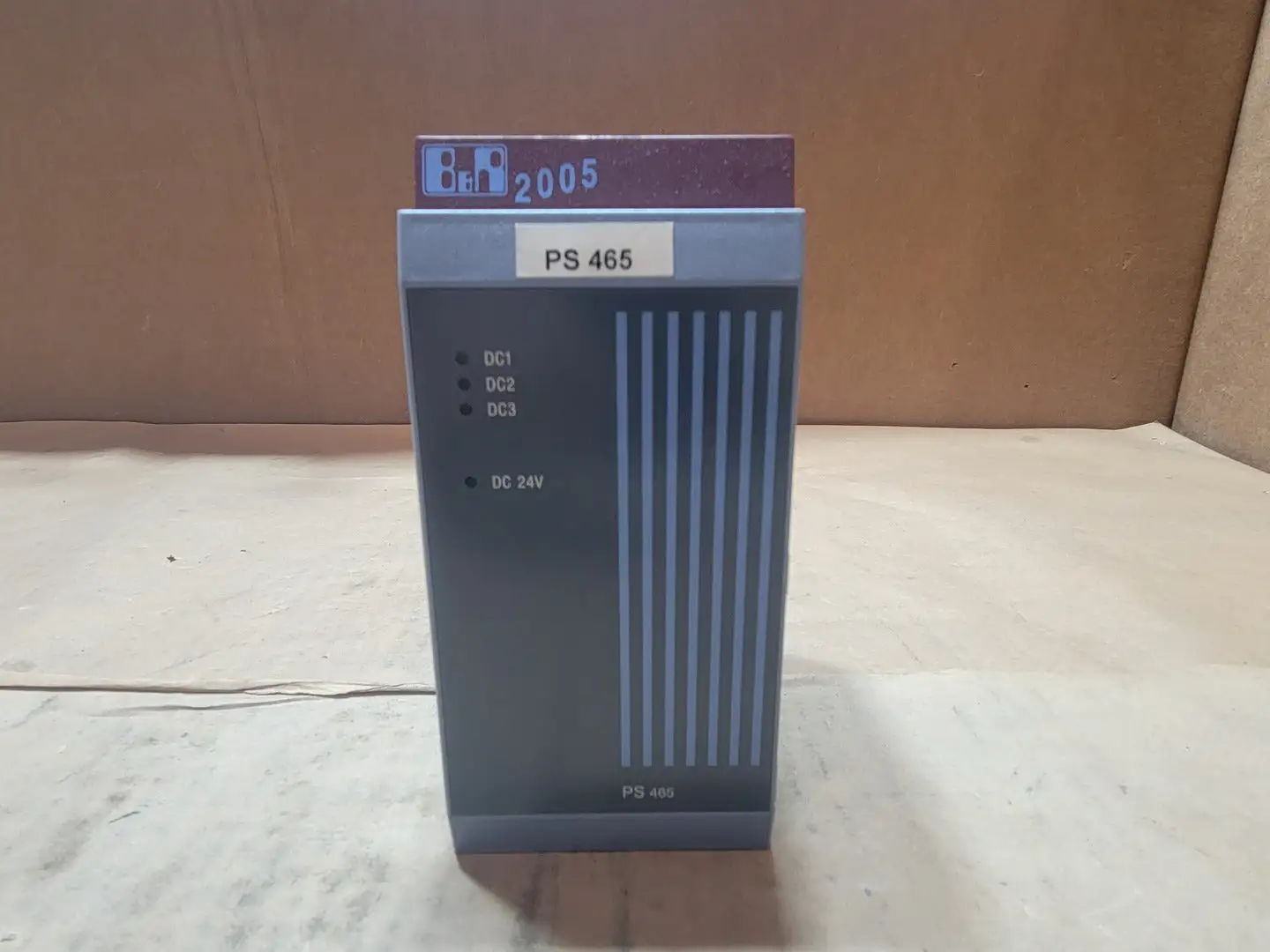

USED B&R INDUSTRIAL AUTOMATION PS 465

Series: System 2005
Material Number: 3PS465.9
Revision: Rev. C0
Serial / Identification Number: 26090181540
Equipment Type: PLC / Automation System Power Supply Module
Input Voltage Marking: 24 VDC
Input Current Marking: 3.5 A
Manufacturer Input Voltage Range: 18-30 VDC
24 VDC Output Power: 50 W
5 VDC Output Power: 40 W
Maximum Combined Output Power: 60 W
Internal Voltage Indicators: 5 VDC, 24 VDC, and 11 VDC markings visible inside the front door
Front Status Indicators: DC1, DC2, DC3, and DC 24V
Expansion Capability: Integrated system expansion slot
Module Width: System 2005 double-width
Base Unit Slot Requirement: Slots 1 and 2
Expansion Unit Slot Requirement: Slots 1 and 2
Electrical Isolation: Power supply isolated from input voltage
Degree of Protection: IP20
Operating Temperature: 0°C to 60°C
Storage Temperature: -25°C to 70°C
Operating Relative Humidity: 5% to 95%
Approvals: UL Listed and CE visible; B&R also documents cULus certification under E115267.
Housing: Enclosed grey industrial plastic module with hinged front door
Connection Style: Internal removable terminal block and rear system connector
