Complete Turnkey Cuban/Curb Link Chain Manufacturing Package

Full Factory Setup Consisting of:

14 Chain Making Machines, FEATURING:

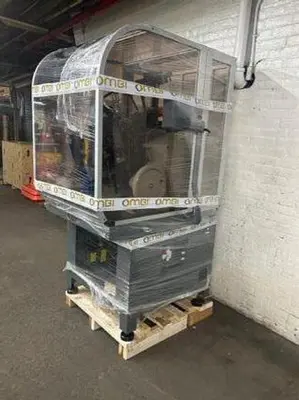

3-Brand New OMBI Automatic Chain Machines
Models GUF60-NG, GUF40-NG, & GUF18-SG
Spare Tooling for OMBI’s Included: 1.40mm, 4.00mm, 5.50mm

2 Twin-Compartment Precious Metals Tumbling Machines for Chains,
SM Engineering 4” Straight Through Conveyor Annealing/Soldering Furnace, Chain Grinding Polishing Machines for Cuban/Curb Link Chain, 5-Bay Polypro Plating Tank with Heaters

Machinery Included:

*All machines are wired for either 110V, Single Phase, or 220V, Three Phase

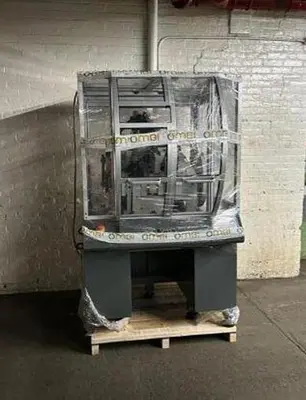

(1)        New OMBI Model GUF 60-NG Single/Double/Triple Cable/Curb Chain Making Machine Tooled for 5.50 mm Cuban Chain
Technical Specifications:
Year of MFG 2023
GUF 60-NG
Wire diameter 4,00 - 6,00 mm
Prod. maglie/min./Output rpm - links 30 max
Power headed 3,0 kW 3ph 380 V 50-60 Hz
Net/Gross weight 1450/1750 kg
Overall dimensions 120x150x190 cm
Automatic machine for the production of cable and curb chain right and left

(1)        New OMBI Model GUF40NG Single/Double/Triple Cable / Curb 1.90-4.00 mm Machine-Tooled 4.0 MM Cuban Link
Technical Specifications:
Year of mfg 2023
GUF40-NG
Automatic machine for curb and cable chains produced in single and double versions
Voltage 3ph 380 V 50-60 Hz
Tooled 4.0 MM Cuban Link
Wire diameter 1,80 - 4,00 mm
single link 1,80 - 4,00 mm
double link 1,80 - 3,00 mm
Output rpm - links 60 max
Tooled 4.0 MM Cuban Link

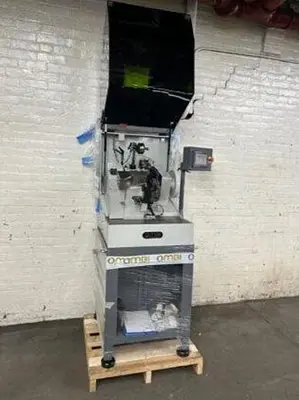

(1)        New OMBI Model GUF18-SG-DSDL Automatic Machine for Cable or Curb Chain / Tooled 1.40mm
Technical Specifications:
Voltage 220 3ph / 50-60 Hz
1,0 kW
RPM/min. 150 max
Wire diameter 0,70 - 1,80 mm
Rpm - links 150 max
Net/Gross weight 250/420 kg
Overall dimensions 65x105x156 cm

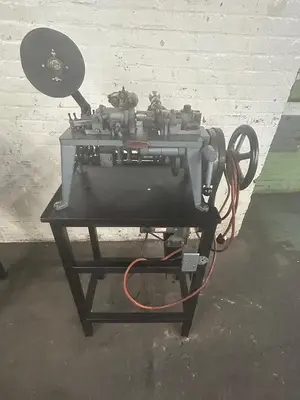

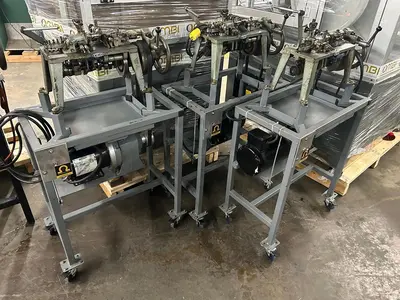

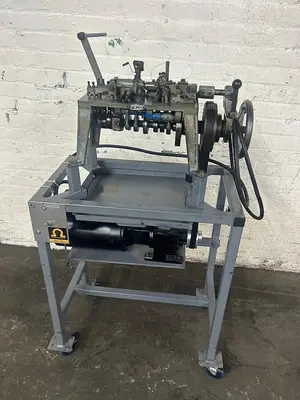

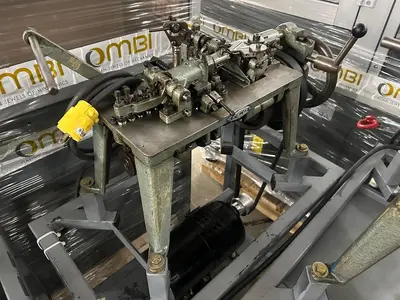

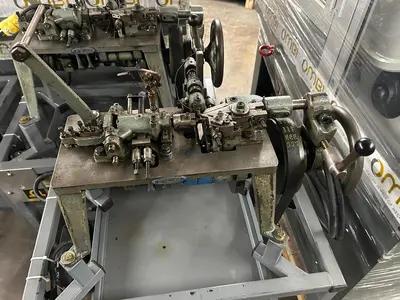

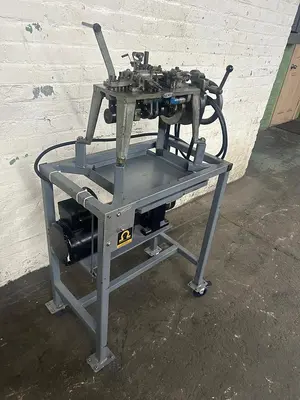

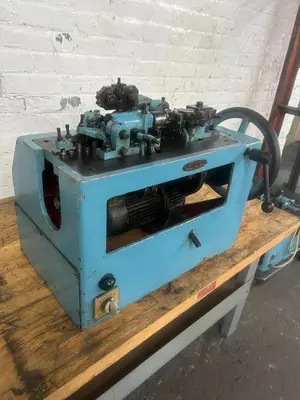

(2)        FICO FPK/2 Automatic Cuban/Curb Chain Making Machines
Technical Specifications:
Capable chain from 0.80 to 1.50mm Chain (30-50m/h)
Production: 10-70 meters/hour(variable)
Machine only - Overall dimensions: 24" x 19" x 18" high
Estimated weight: 180 lbs.
Note: One machine has incomplete tooling missing Jaws

(1)                FICO FPA/E Cuban/Curb Chain Making Machine
Production: 10-70 meters/hour (variable)
Machine only - Overall dimensions: 24" x 19" x 18" high
Estimated weight: 180 lbs.

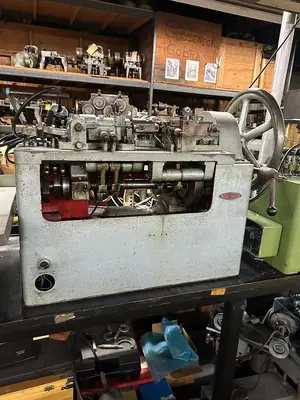

(1)                Theodore Bechtold & Son Chain Making Machine
Production: 10-70 meters/hour(variable)
Machine only - Overall dimensions: 24" x 19" x 18" high
Estimated weight: 180 lbs.
Note: incomplete tooling missing Jaws

(1)                Fico FPK/3 Year 1979 Automatic Curb / Cubin Chain Making Machine
Technical Specifications:
Capable chain from 1.50 to 2.50mm Chain (30-50m/h)
Production: 10-70 meters/hour(variable)
Overall dimensions: 24" x 19" x 18" high
Estimated weight: 180 lbs.

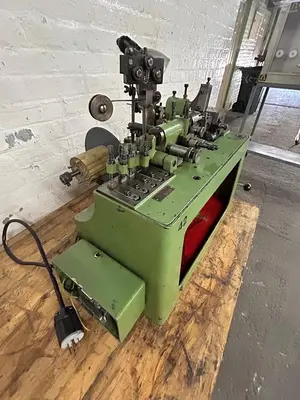

(3)         FICO (Germany) Model FPK/1 Automatic Curb / Cubin Chain Making Machines
Technical Specifications:
Minimum/Maximum wire capacity:0,25mm/0,80mm
Production: 10-70 meters/hour(variable)
Overall dimensions: 24" x 19" x 18" high
Estimated weight: 160 lbs.
Approx tooling sizes .0,25mm / 0,30mm / 0,35mm Wire size

(3)         FICO (Germany) Automatic Curb / Cubin Chain Making Machines
Technical Specifications:
Production: 10-70 meters/hour(variable)
Overall dimensions: 24" x 19" x 18" high
Estimated weight: 160 lbs.
Approx tooling sizes .0,60mm / 0,70mm / 1,75mm Wire size

(2)         Twin Compartment Precious Metal Tumblers for Chains
#1) No Name brand
#2) IECO Model 03.12.V - Twin compartment precious metal Tumbler for Chain
·         SN 187-88
·         220 volt 1ph 50/60 HZ
·         Pul variator power 0.4 HP
·         Vibrator power 400 W
·         Diameter of drums 400mm
·         Overall size 930mm x 659mm x 650mm Height
·         Weight 50 KG
Equipped with
·         Speed regulator
·         Vibration regulator
·         Working time regulator
·         Swing down head dust discharge
·         Overall size 930mm / 659mm / 650mm Height
·         Weight 50 KG

About: The operation of tumbling for preparation and isolation, is to prepare the chain to the successive step of welding. It consists in ensuring that in the workspace between the terminals of each single link has sufficient quantity of soldering material (solder powder).

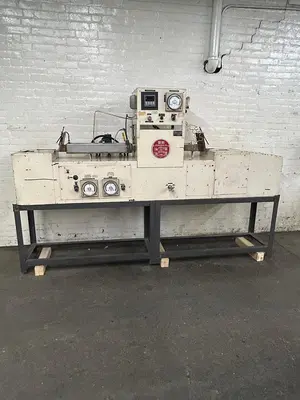

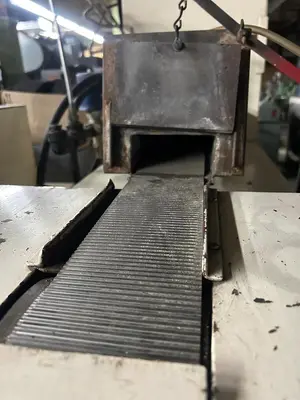

(1)         SM 4" Mini Straight Through Conveyor Annealing/Soldering Furnace with Ammonia Dissociator
Technical Data:
·         208V/3PH/60HZ
·         Belt width: 4"
·         Belt speed: 0 -18 IPM
·         Maximum temperature: 1800 degrees F.
·         Work height over belt: 1-3/4"
·         Amperage: 18
·         KW: 4

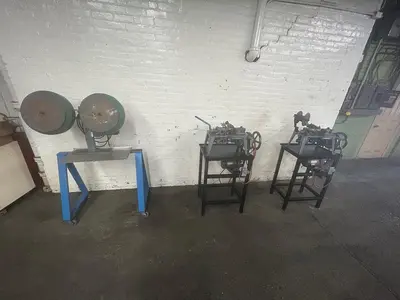

(3)         Precision Metal Works Chain grinding Polishing Finishing Machines for Cuban / Curb Links
Equipped with
·         Adjustable height
·         Speed controls
·         Forward and reversing controls

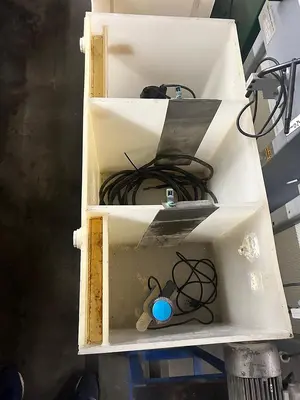

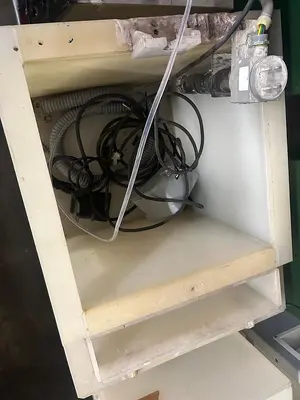

(1)         5-Bay Polypro/Plating Tank with Heaters and Control
·         Tank 1) 18" x 18" x 18" Depth
·         Tank 2) 3-3/4" x 18" x 18"Depth
·         Tank 3) 12" x 16" x 18" Depth w/ Sub Pump
·         Tank 4) 18" x 18" x 18 Depth
·         Tank 5) 12" x 16"x 18" Depth
