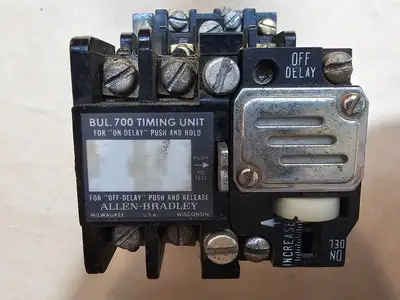

USED ALLEN-BRADLEY 700-NT

Voltage: 120 volts
Relay Type: Time Delay
Series: C
Timing Mechanism: Pneumatic
Timing Range: 0.2-60 seconds
Standard Timing Mode: On-delay
Alternate Timing Mode: Convertible to off-delay
Timed Contacts: Up to 2 poles convertible to NO or NC
Repeat Accuracy: +/- 15% of setting
Reset Time: 75 ms
Contact Material: Silver

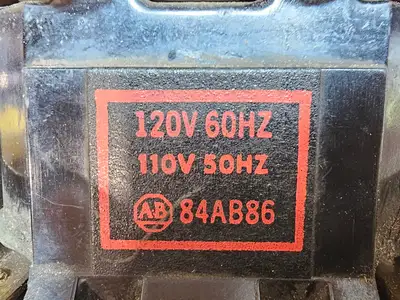

Coil Part Number: 84AB86
Coil Voltage: 120 VAC at 60 Hz / 110 VAC at 50 Hz
Coil Type: Allen-Bradley magnetic operating coil

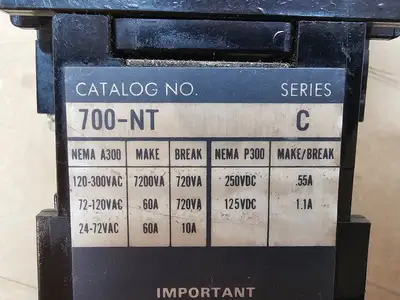

Contact Rating Marked on 700-NT: NEMA A300
120-300 VAC Make Rating: 7200 VA
120-300 VAC Break Rating: 720 VA
72-120 VAC Make Rating: 60 A
72-120 VAC Break Rating: 720 VA
24-72 VAC Make Rating: 60 A
24-72 VAC Break Rating: 10 A
250 VDC Make/Break Rating: 0.55 A
125 VDC Make/Break Rating: 1.1 A
Mounting: Relay assembly / panel mounting base
Terminal Type: Screw terminals
