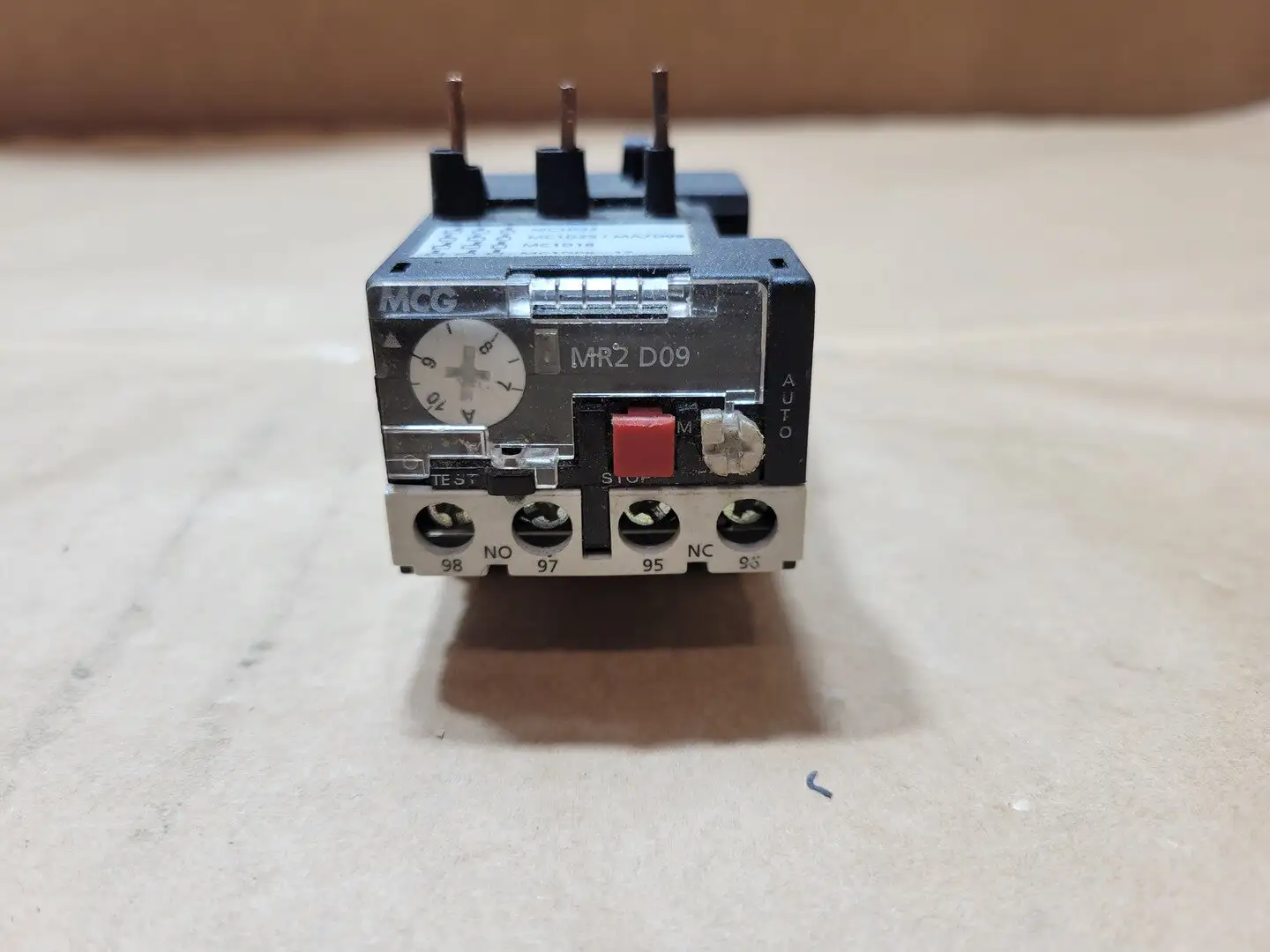

USED MCG MR2D09314

Amps: 7-10 amps
Voltage: 600 volts
Relay Type: Overload Relay
Series: MR2D / MR2 D09
Catalog number: MR2D09314
Device type: Bimetallic thermal overload relay
Current adjustment range: 7-10 A
Visible dial markings: 7, 8, 9 and 10 A
Number of poles: Three
Trip class: Class 10
Tripping current: 125% of selected full-load current
Reset modes: Automatic and manual selectable
Stop/reset control: Yes
Test function: Yes
Normally closed contact: Terminals 95-96
Normally open contact: Terminals 97-98
Auxiliary-contact thermal current: 5 A
Auxiliary-contact designation: B600
Auxiliary maximum voltage: 600 VAC
Rated insulation voltage: 690 V
Impulse withstand voltage: 6 kV
Maximum aM backup fuse: 12 A
Maximum gI/gL backup fuse: 20 A
Maximum non-time-delay fuse: 40 A
