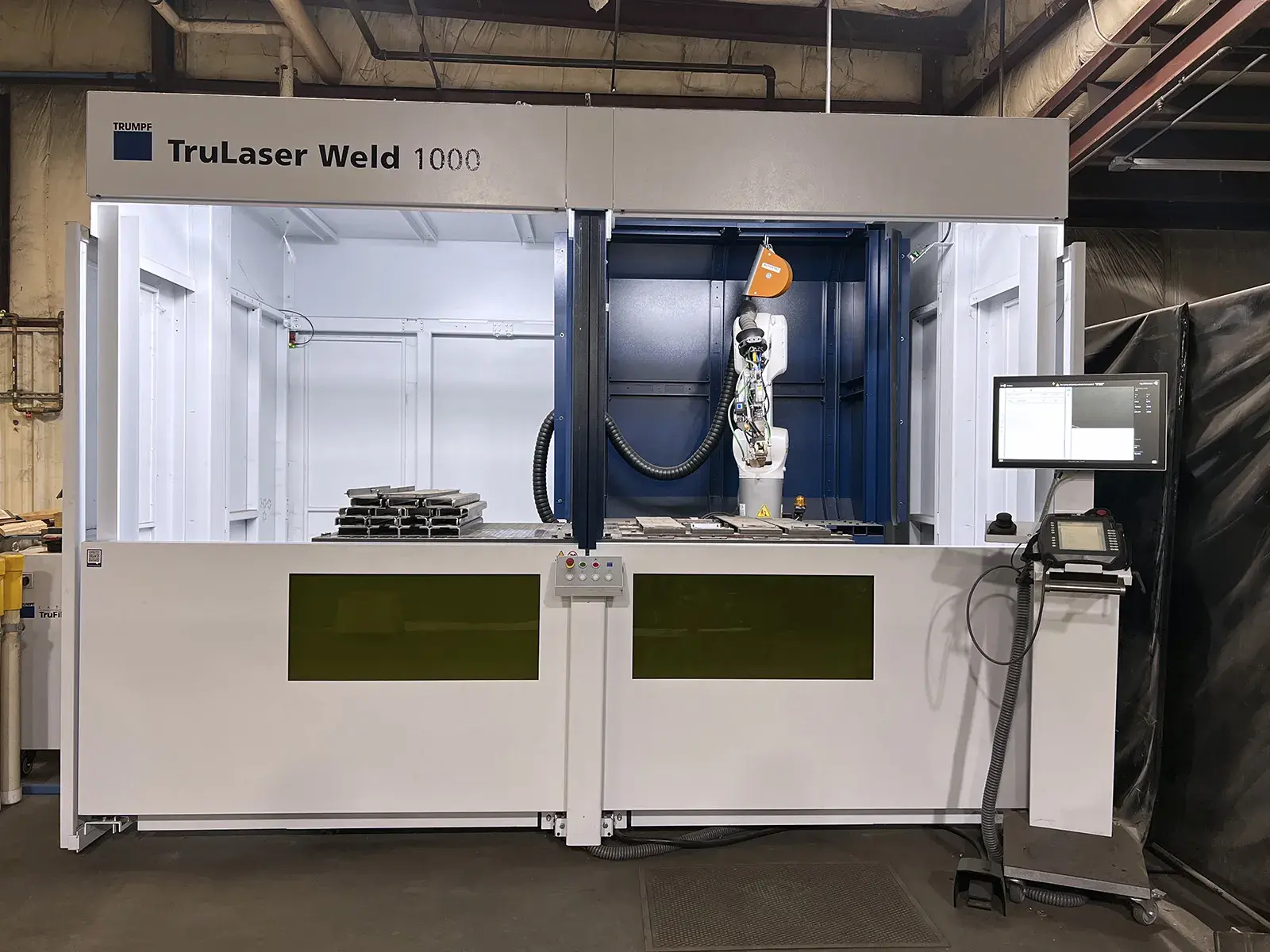

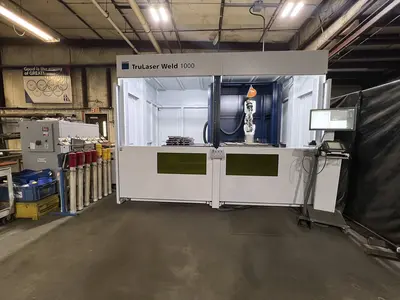

USED 2023 TRUMPF TRULASER WELD 1000
Overview
Trumpf TruLaser Weld 1000 (2023) Laser Welding Cell delivers high-speed, automated laser welding for steel, stainless steel, and aluminum components. Ideal for job shops and fabricators producing electrical cabinets, HVAC housings, commercial kitchen equipment, medical enclosures, automotive panels, and precision sheet metal assemblies.
Specs
TRUMPF TruFiber 3002 P: 3 kW Fiber Laser Source
TRUMPF Laser Welding Head
Beckhoff CP3921 Industrial PC: 21.5" Touchscreen HMI
TRUMPF Cell Control Software: EtherCAT Architecture
KUKA KR 10 R1100‑2 FLR Robot
KUKA KRC5 Robot Controller Pendant
Servo Driven Rotary Axis
Modular Welding Table
Riedel RL13/0 SR Chiller
Full Class 1 Laser Safety Enclosure
Laser Safe Viewing Windows
Welding Fiber Laser Source Power: 3kW
Laser Wavelength: 1070 nm (1.07 µm)
Maximum Reach: 43.35 in (1101 mm)
Axis 1: J1 Base Rotation Travel: ±185°
Axis 2: J2 Shoulder Travel: +90° / –61°
Axis 3: J3 Elbow Travel: +65° / –209°
Axis 4: J4 Wrist Roll Travel: ±350°
Axis 5: J5 Wrist Bend Travel: ±125°
Axis 6: J6 Wrist Rotate Travel: ±350°
Equipped With
TRUMPF TruFiber 3002 P: 3 kW Fiber Laser Source
TRUMPF Laser Welding Head
Beckhoff CP3921 Industrial PC: 21.5" Touchscreen HMI
TRUMPF Cell Control Software: EtherCAT Architecture
KUKA KR 10 R1100‑2 FLR Robot
KUKA KRC5 Robot Controller Pendant
Servo Driven Rotary Axis
Modular Welding Table
Riedel RL13/0 SR Chiller
Full Class 1 Laser Safety Enclosure
Laser Safe Viewing Windows
