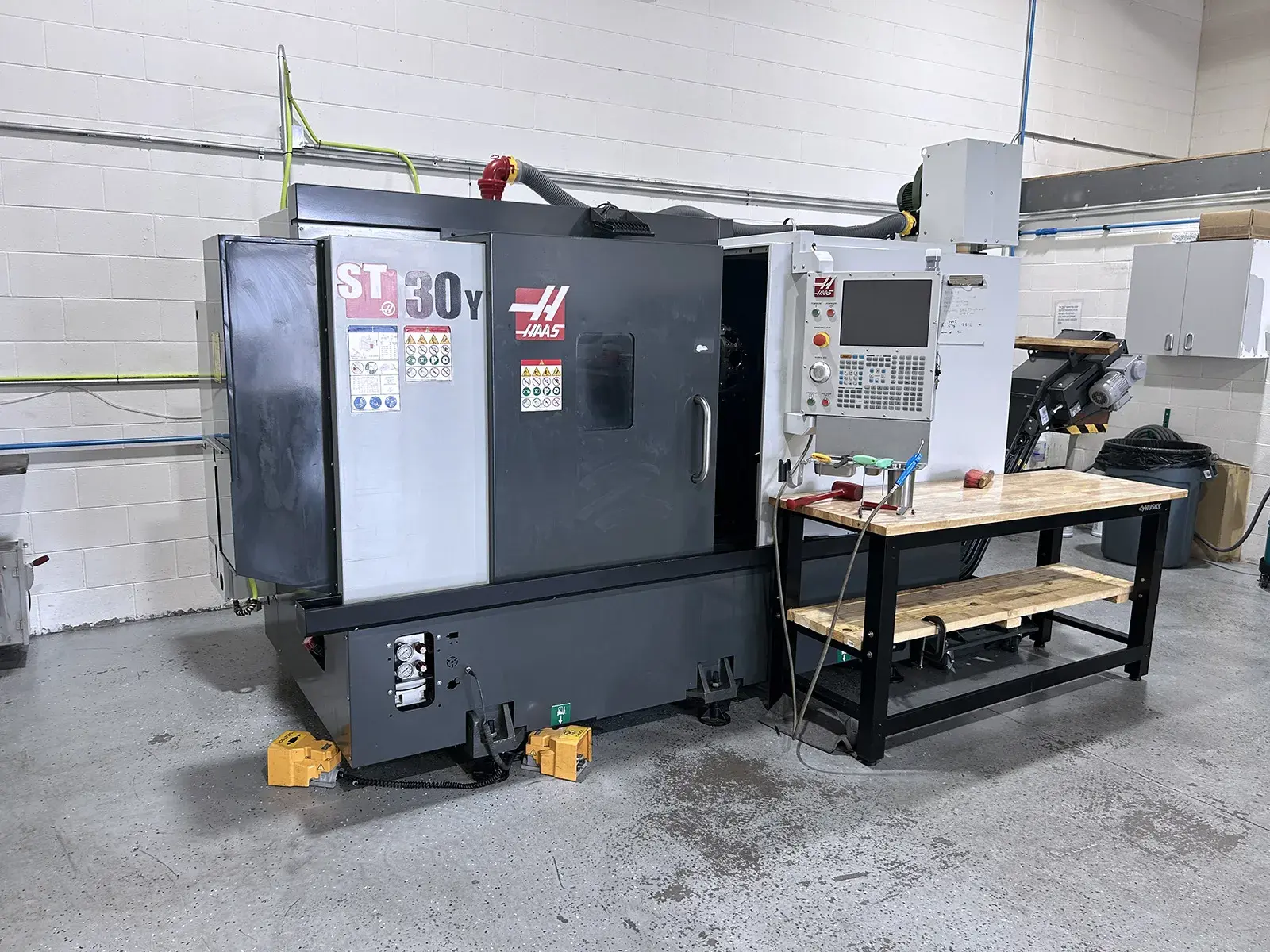

USED 2022 HAAS ST-30Y
Overview
Haas ST-30Y (2022) CNC Turning Center delivers high-precision turning, drilling and milling with Y-axis capability in a single setup. Ideal for aerospace, automotive, medical, oil & gas and job shop production, it efficiently machines complex shafts, hubs, valves, fittings, fasteners and precision components with improved flexibility and productivity.
Specs
Haas Next Generation CNC Control
10" hydraulic chuck
3.0" bar capacity
3400 RPM/30 HP main spindle
Y-axis
Full C-axis
Live tooling
Chip conveyor
High Pressure coolant system
Rigid tapping
Chuck Size: 10"
Maximum Cutting Diameter: 13.75"
Maximum Cutting Length: 32.5"
Maximum Bar Capacity: 3.00"
Maximum Part Swing: 21.0"
X-Axis Travel: 9.40"
Y-Axis Travel: ±2.00" / 4.00" total
Z-Axis Travel: 32.50"
X-Axis Rapid Traverse: 472 IPM
Y-Axis rapid traverse: 472 IPM
Z-Axis Rapid Traverse: 945 IPM
Main Spindle Speed: 3,400 RPM
Main Spindle Motor: 30 HP
Maximum Spindle Torque: 300 ft-lb @ 500 RPM
Spindle Nose: A2-6
Spindle Bore: 3.50"
C-Axis: Full interpolated C-axis
C Axis Positioning: ±0.01°
Turret: 12-Station BMT65
Live Tooling Speed: 4,000 RPM standard
Coolant Capacity: 55 Gallons
Machine Weight: Approx. 11,340 lbs
Control: Haas Next Generation Control
Electrical: 220V / 3 Phase / 50-60 Hz
Full Load: 70 Amps
Equipped With
Haas Next Generation CNC Control
10" hydraulic chuck
3.0" bar capacity
3400 RPM/30 HP main spindle
Y-axis
Full C-axis
Live tooling
Chip conveyor
High Pressure coolant system
Rigid tapping
