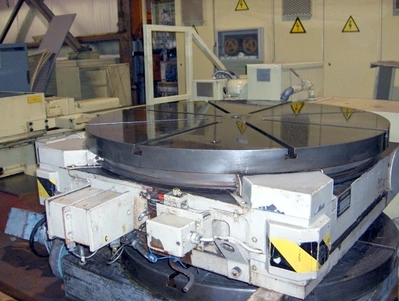

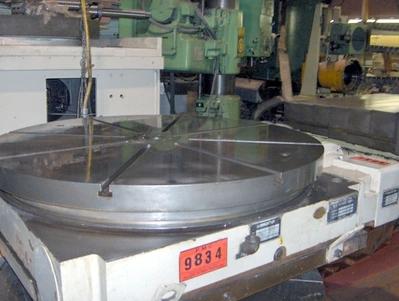

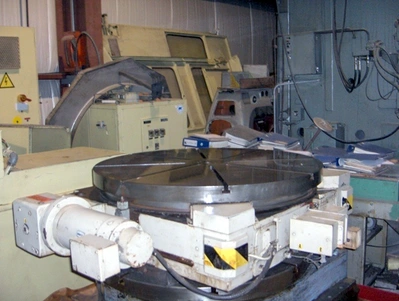

USED 1993 PRODUCTO 0140

Table Diameter: 42.00 in 1066.8 mm
Table Capacity: 32000 lbs 14514.94 kg
Base Length: 39.00 in 990.6 mm
Base Width: 39.00 in 990.6 mm
Table Overall Height: 13.00 in 330.2 mm
T-Slot Spacing: 8 Equally Spaced Radial Slots
Top T-Slot Width: 0.69 in 17.53 mm
Bottom T-Slot Width: 1.25 in 31.75 mm
Table Drive Power: 3.00 HP 2.24 kW
Programmable Angular Resolution: .001 Degree
Table Rotational Speed Range: 2 RPM
Positioning Accuracy: +/- 4 Arcseconds (with Inductosyn)
Repeatability: 2 Arcseconds
Power: 3 ph / 50 – 60 Hz / 200 – 500 V Existing
Additional: Parallelism top to bottom: .0004 inches(.01 mm), pilot hole diameter: 1.500 - 1.5005 inch, pilot hole runout: .0002 inch TIR, table top flatness: .0005 TIR, table top radial load rating: 17,000 lbs (7727 kg), table moment rating: 19,800 ft/lbs (26,845 nm), master slot size .812 inch, precision 4-track preloaded ball bearing, table sealed against coolant, chips, and contaminants, base and table of cast iron - stress relieved for long term stability, dual lead worm externally adjustable for backlash take-up, worm drive flood lubricated, Getty's servo drive motor, Farrand precision rotary scale, table machined to accept a Vortec unit, 5:1 planetary gearbox
