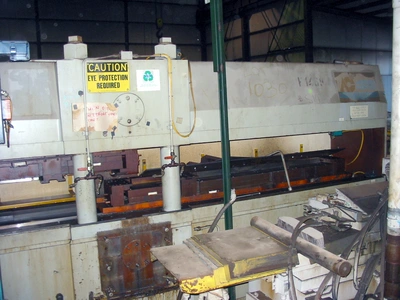

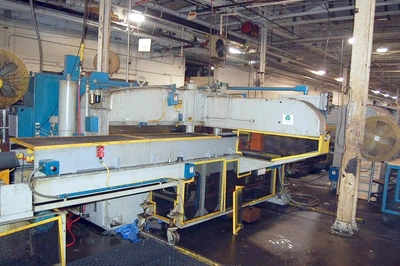

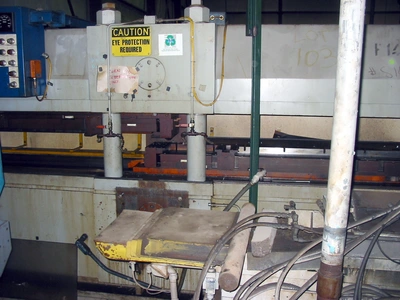

USED 1993 ANDERSON COOK MARAND 360-S

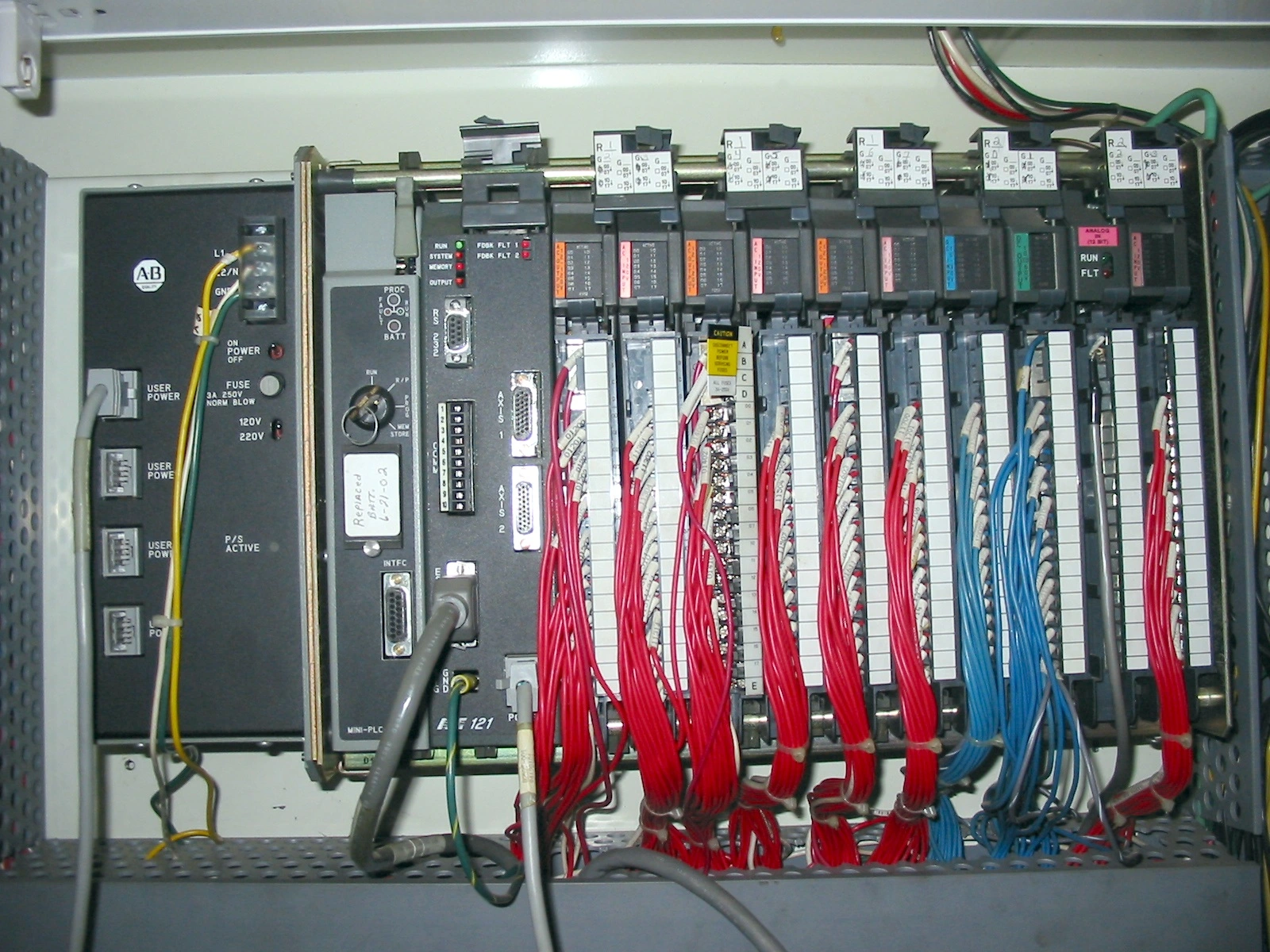

Control: Allen Bradley Dataliner PLC
Maximum Part Work Diameter: 2.63 in 66.8 mm
Stroke: 72.00 in 1828.8 mm
Rack Advance Time: 5.00 seconds
Rack Return Time: 7.00 seconds
Bi-Roll Setup: Yes
Headstock Quill Travel: 11.50 in 292.1 mm
Rack: Twin rack: 13 inch (330 mm) and 24 inch (610 mm) / 48 inch (1219 mm) combined length, 7 inch (178 mm) rack width
Motor Power: 40.00 HP 29.83 kW

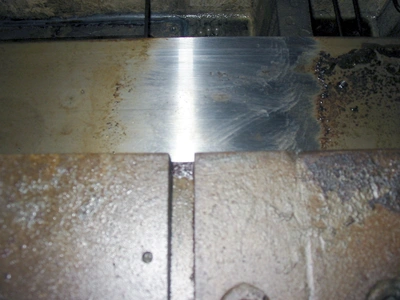

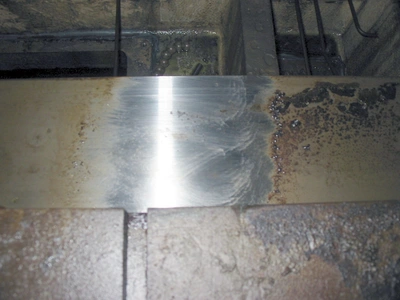

Ways: Hardened Replaceable
Power: 3 ph / 50 – 60 Hz / 380 – 480 V Existing
Additional: Adjustment per rack: .040, bi-roll quill movement, electric servo control, outboard underarm, walking beam conveyor
Machine Length: 195.00 in 4953 mm
Machine Width: 177.00 in 4495.8 mm
Machine Height: 92.00 in 2336.8 mm
