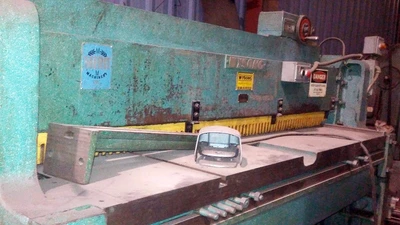

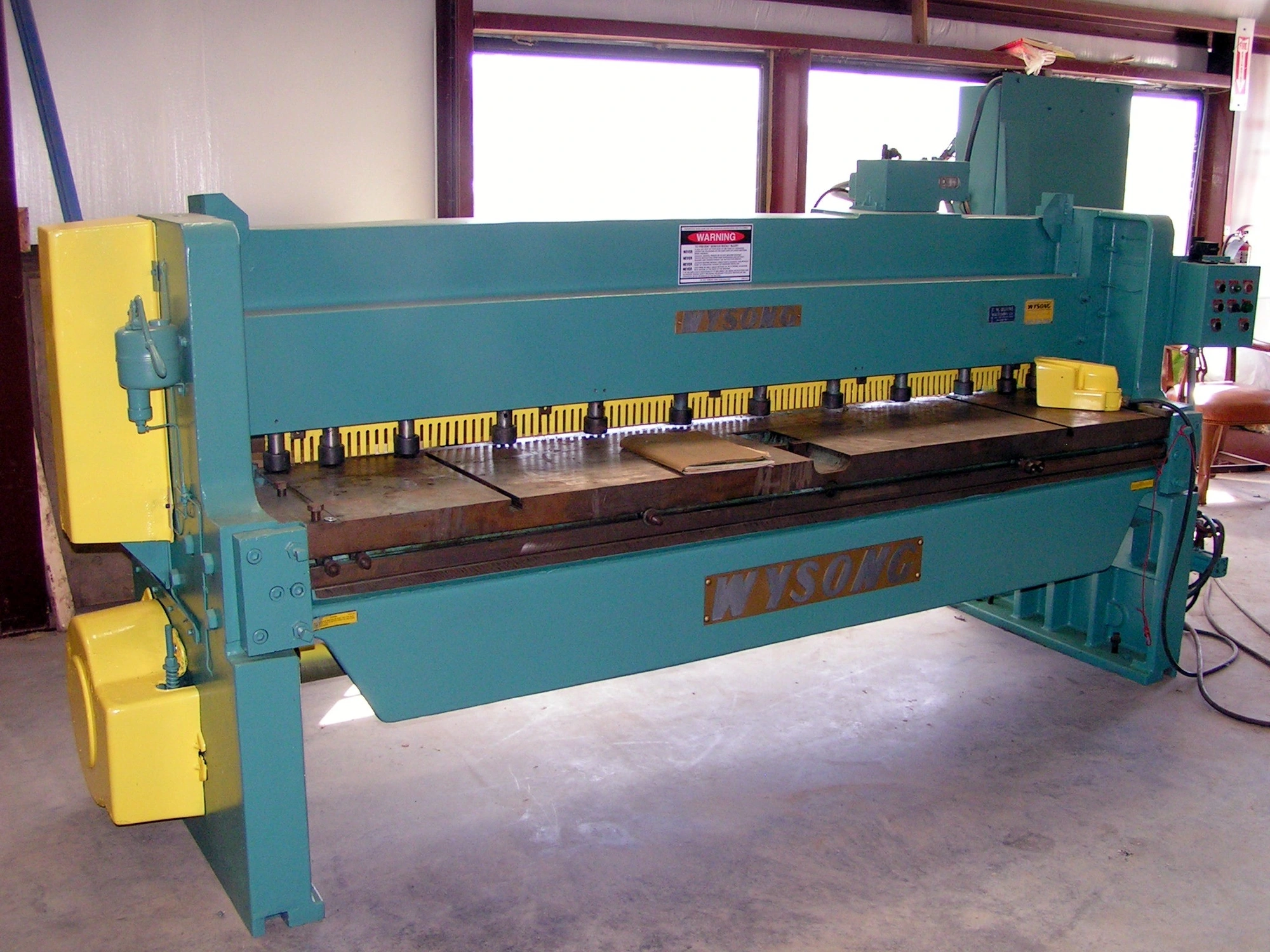

USED 1970 WYSONG 1072

Control: PC100 Wysong CNC Gauging System
Rake of Upper Blade: 0.375 in 9.53 mm
Cutting Length: 72.00 in 1828.80 mm
Squaring Arm: 96.00 in 2438.40 mm
Back Gauge Motor Power: 0.33 hp 0.25 kW
Drive motor Power: 3.00 hp 2.24 kW
Gap: 1.00 in 25.40 mm
Capacity (Mild Steel): 10 gauge
Capacity (Stainless Steel): 12 gauge
Strokes Per Minute: 60
Number of Holddowns: 12
Holddown Type: Spring-actuated self-compensating automatic
Back Gauge: Manual, front operated, 36" capacity
Clutch Type: Air actuated mechanical clutch with remote electric foot pedal control
Power: 3 Phase, 60 Hz, 208/230/460 Volts, 30 Amps (Currently wired for 230 volt operation)
Additional: Two front support arms, one pair four-edged knives, two extra sets of shear blades, full length t-slot across front of bed and two t-slots from front to rear of bed, dual sets of inlaid scales on table surface, light beam shearing gauge, finger guard, Bijur one-shot lubrication
