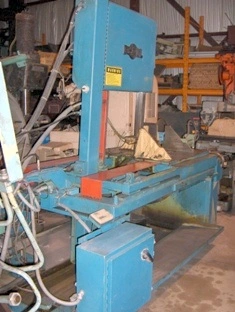

USED 1992 DOALL TF-2021M

Blade / Band Width: 1.25 in 31.75 mm
Blade / Band Length: 192.00 in 4877.00 mm
Frame Tilt: + / - 45 Degrees Manual Adjustment
Capacity at Zero Degrees: 21 inch (533 mm) High X 20 inch (508 mm) Wide Rectangle - 20 inch (508 mm) Round
Capacity at Maximum Tilt: 14 inch (355 mm) High X 20 inch (508 mm) Wide Rectangle - 14 inch (355 mm) Round
Blade / Band Stroke: 20.00 in 508.00 mm
Vise: 10.5 in 270 mm
Blade / Band Speed Maximum: 300.00 ft/min 0 m/min
Blade / Band Speed Minimum: 50.00 ft/min 0 m/min
Blade / Band Feed: Infinitely Adjustable
Table Width: 36.00 in 914.40 mm
Table Length: 38.00 in 965.20 mm
Motor Power: 10.00 HP 7.50 kW
Coolant: Yes - 20 Gallon Capacity
Power: 3 ph / 60 Hz / 230-460 V Existing
Additional: Variable vise pressure, 14 foot (4.26 m) stock infeed gravity roller table, 4 foot (1.21 m) stock outfeed gravity roller table, worklight, 20 in (508 mm) diameter cast iron blade / band wheels
Machine Length: 109.00 in 2770.00 mm
Machine Width: 57.00 in 1448.00 mm
Machine Height: 91.75 in 2330.00 mm
